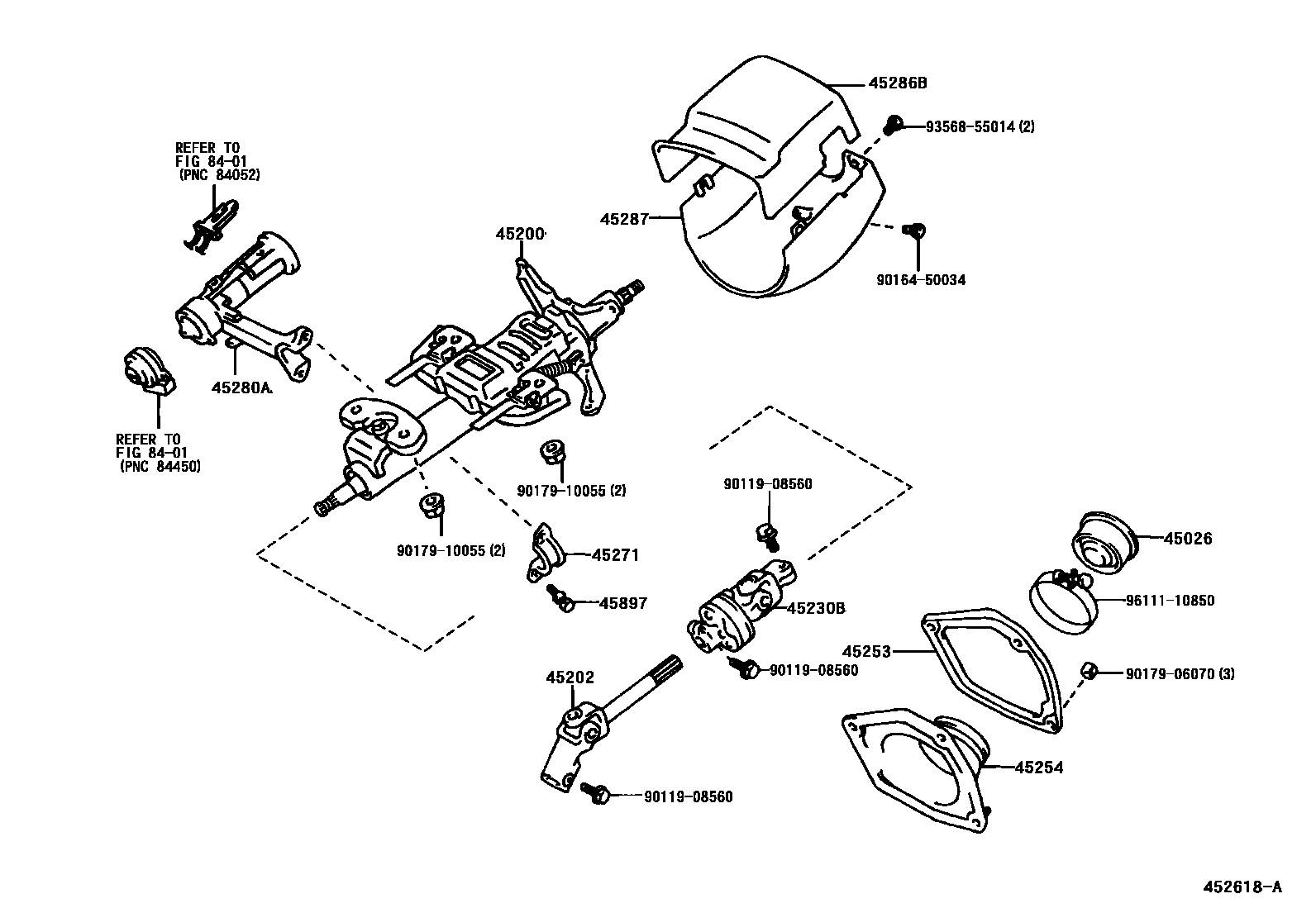

STEERING COLUMN & SHAFT

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-48030iMCU15200007-200302

45200POST ASSY, STEERING

main45250-48010iMCU15200007

45202SHAFT SUB-ASSY, STEERING INTERMEDIATE

main45202-48010iMCU15..RHD200007-200302

main45202-48020iMCU15..LHD200007-200302

45230BJOINT ASSY, STEERING SHAFT UNIVERSAL

main45230-33040iMCU15..RHD200007-200302

main45230-48020iMCU15..LHD200007-200302

45253COVER, STEERING COLUMN HOLE

main45253-48010iMCU15..RHD200007

main45253-48020iMCU15..LHD200007

45254SHIELD, STEERING COLUMN HOLE

main45254-48010iMCU15..RHD200007

main45254-48020iMCU15..LHD200007

45271CLAMP, STEERING COLUMN, UPPER

main45271-12060iMCU15200007

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-60460iMCU15..LHD200007

main45280-60480iMCU15..RHD200007

45286BCOVER, STEERING COLUMN, UPR

main45286-48010-C0iMCU15200007

BLACK,TRIM2#

sub45286-48010

main45286-48010-E0iMCU15200007

SANDAL WOOD,TRIM0#

sub45286-48010

45287COVER, STEERING COLUMN, LWR

main45287-48010-C0iMCU15200007

BLACK,TRIM2#

sub45287-48010

main45287-48010-E0iMCU15200007

SANDAL WOOD,TRIM0#

sub45287-48010

45897BOLT, STEERING LOCK SET

main45897-12020iMCU15200007

8401

9011908560

main90119-08560

9016450034

main90164-50034

9017906070

main90179-06070

9017910055

main90179-10055

9356855014

main93568-55014

9611110850

main96111-10850

18 parts on this diagram · 1 diagram in section
