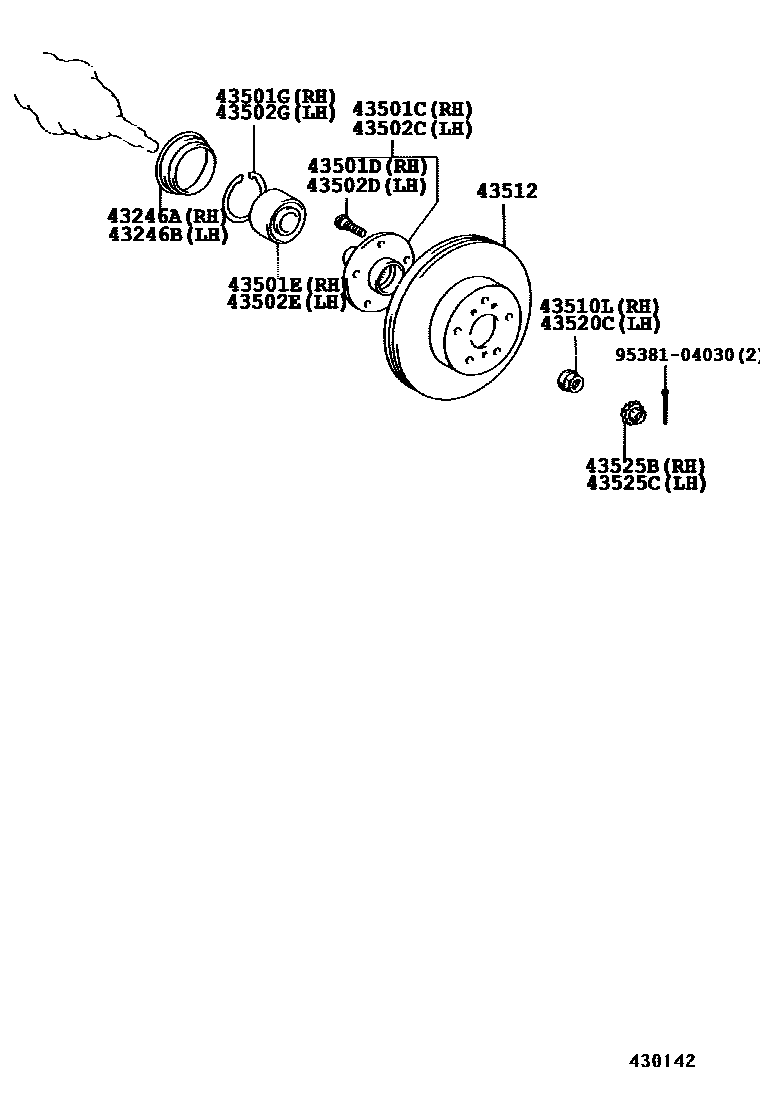

FRONT AXLE HUB

43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH

main43246-32020iMCU15200007

43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH

main43246-32020iMCU15200007

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-32070iMCU15200007

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iMCU15200007

43501EBEARING (FOR FRONT AXLE HUB RH)

main90369-43008iMCU15200007

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-88001iMCU15200007

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-32070iMCU15200007

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iMCU15200007

43502EBEARING (FOR FRONT AXLE HUB LH)

main90369-43008iMCU15200007

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-88001iMCU15200007

43510LNUT (FOR STEERING KNUCKLE RH)

main90178-22001iMCU15200007

43512DISC, FRONT

main43512-48011iMCU15..RHD200007

HONG KONG OR SINGAPORE OR BLUNEI SPEC

sub43512-48031

main43512-48020iMCU15200007-200111

sub43512-48050

main43512-48040iMCU15..LHD200108-200111

SAUDI ARABIA,GULF SPEC

sub43512-48070

main43512-48050iMCU15200111

sub43512-48031

main43512-48070iMCU15..LHD200111

SAUDI ARABIA,GULF SPEC

43520CNUT (FOR STEERING KNUCKLE LH)

main90178-22001iMCU15200007

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-20030iMCU15200007

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-20030iMCU15200007

9538104030

main95381-04030

16 parts on this diagram · 1 diagram in section
