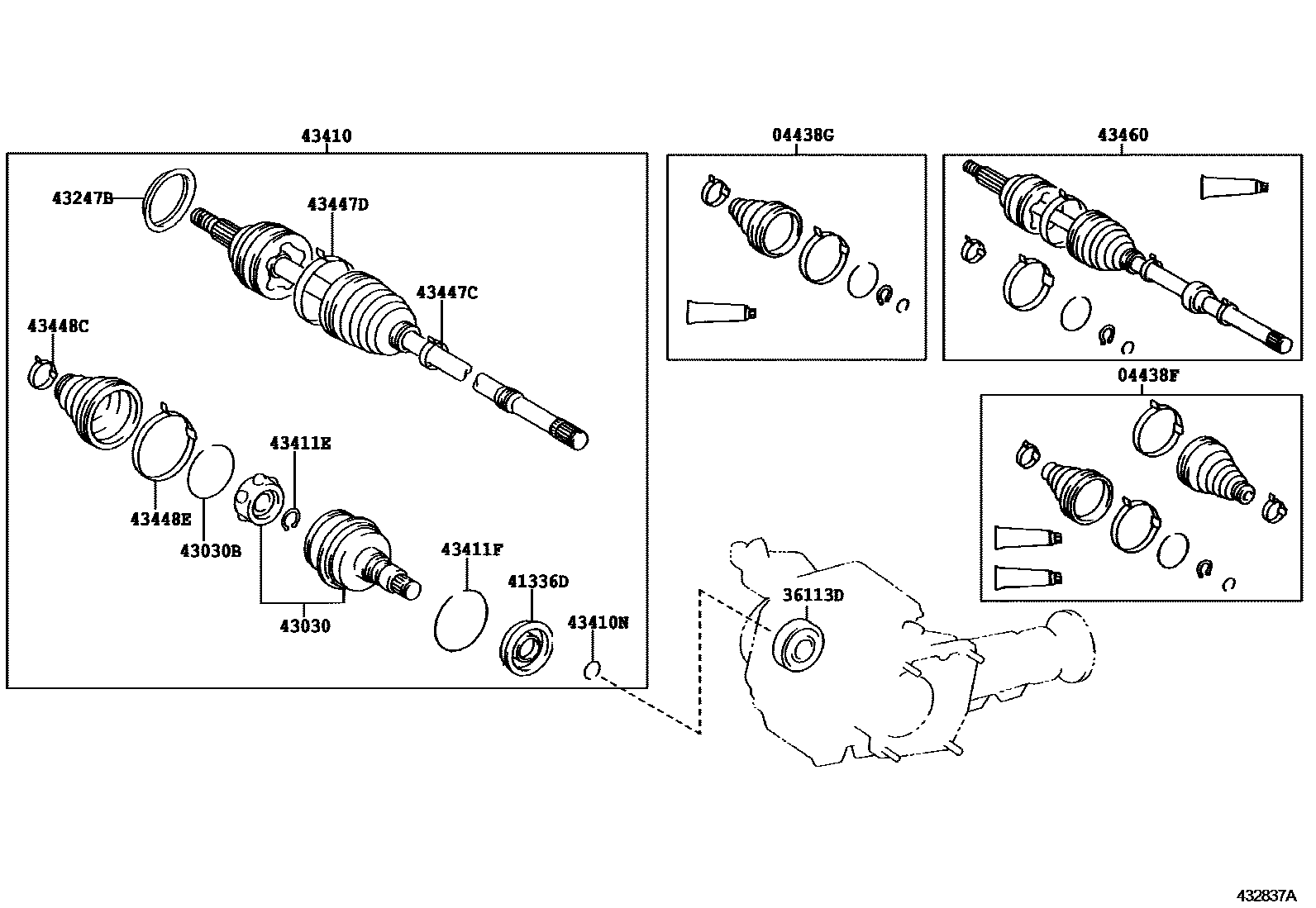

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04438-21061iMCU15200007

sub04438-21062

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-21050iMCU15200007

sub04438-21051

36113DSEAL, OIL (FOR TRANSFER CASE RH)

main90311-34021iMCU15200007

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-21010iMCU15200007

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-21010iMCU15200007

43030BRING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH)

main90521-79001iMCU15200007

43247BDEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2

main43247-12010iMCU15200007

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-48010iMCU15200007

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90521-26004iMCU15200007

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90520-25034iMCU15200007

43411FRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT OUTER RH)

main90520-86003iMCU15200007

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main90949-01A65iMCU15200007

ID=34.1

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main90949-01937iMCU15200007

ID=95.0

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01108iMCU15200007

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42346-22010iMCU15200007

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-49055iMCU15200007

sub43460-49056

16 parts on this diagram · 2 diagrams in section
