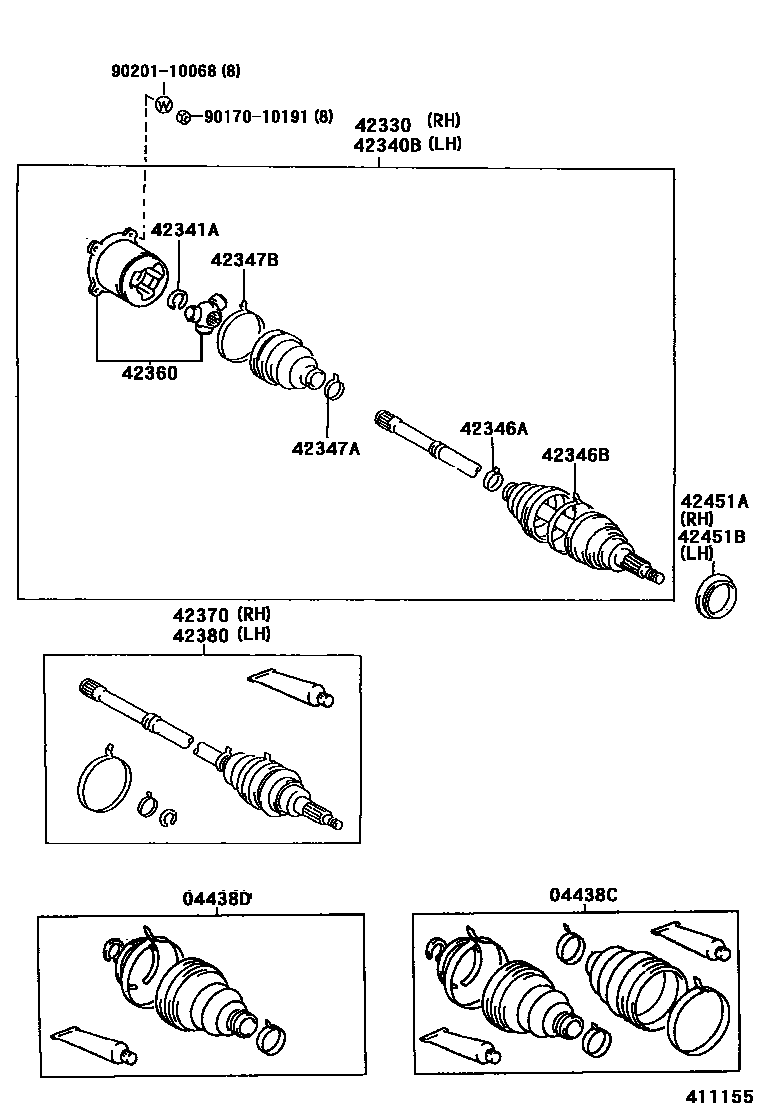

REAR AXLE SHAFT & HUB

0001 1 0002 1

04438CBOOT KIT, REAR DRIVE SHAFT

main04437-48030×2iMCU15200007-200008

sub04437-48032

main04437-48031×2iMCU15200008

sub04429-22030

04438DBOOT KIT, REAR DRIVE SHAFT INBOARD JOINT

main04437-48020×2iMCU15200007

sub04439-22030

42330SHAFT ASSY, REAR DRIVE, RH

main42340-48020iMCU15200007

42340BSHAFT ASSY, REAR DRIVE, LH

main42340-48020iMCU15200007

42341ARING, SNAP (FOR REAR DRIVE SHAFT)

main90520-23024×2iMCU15200007

42346ACLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)

main42345-14010×2iMCU15200007

ID=35.75

42346BCLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)

main90949-01473×2iMCU15200007

42347ACLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main42345-14010×2iMCU15200007

ID=35.75

42347BCLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main42345-14020×2iMCU15200007

42360JOINT ASSY, REAR DRIVE SHAFT INBOARD

main42360-22040×2iMCU15200007

42370SHAFT ASSY, REAR DRIVE OUTBOARD JOINT

main42370-49035iMCU15200007

sub42370-49036

42380SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH

main42370-49035iMCU15200007

sub42370-49036

42451ADEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH

main43247-12010iMCU15200007

42451BDEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH

main43247-12010iMCU15200007

9017010191

main90170-10191

9020110068

main90201-10068

16 parts on this diagram · 2 diagrams in section
