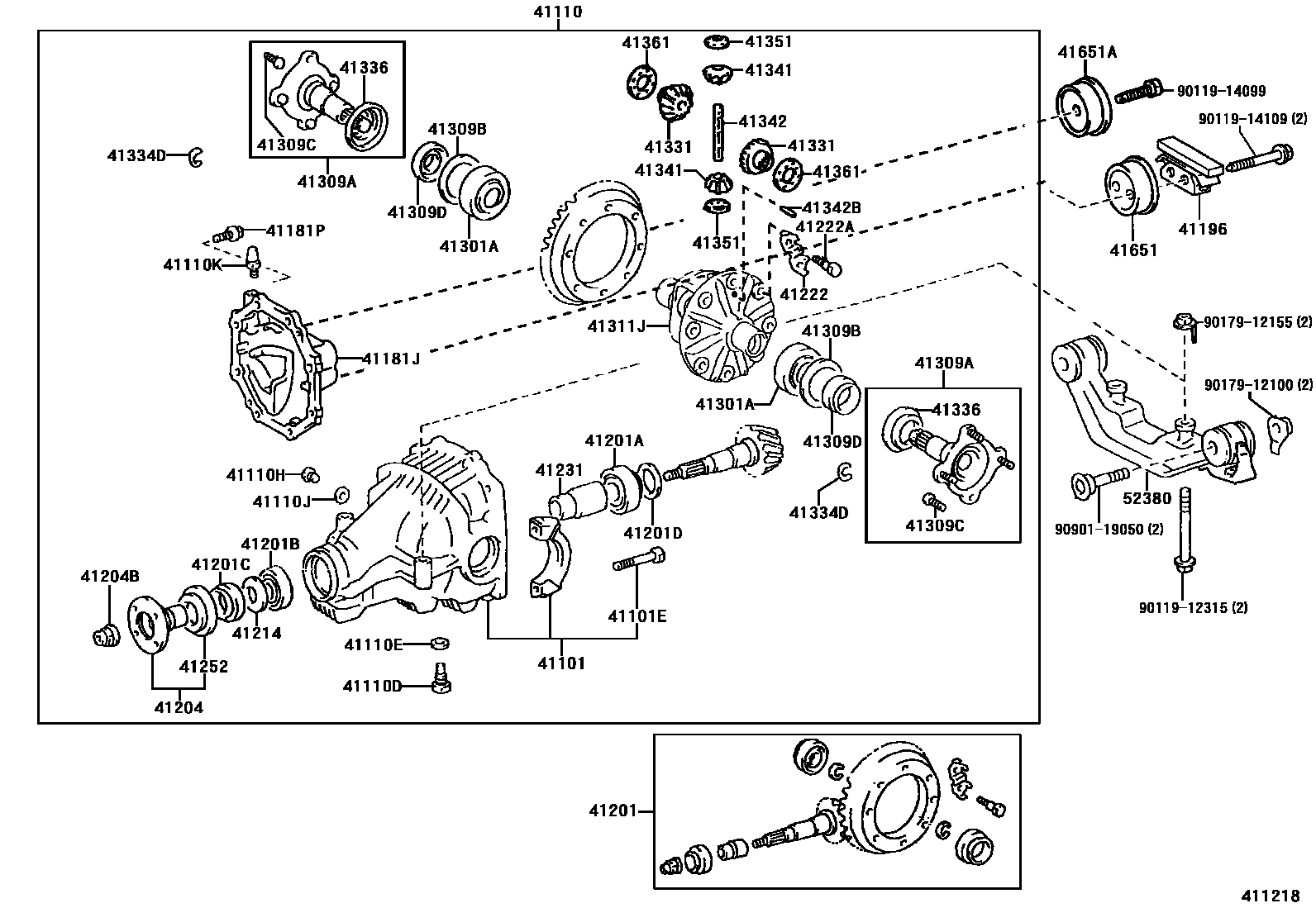

REAR AXLE HOUSING & DIFFERENTIAL
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41101EBOLT (FOR REAR DIFFERENTIAL CARRIER)
41110CARRIER ASSY, DIFFERENTIAL, REAR
*FGR=41:14=2.928
*FGR=41:14=2.928,KOREA SPEC
*FGR=41:14=2.928,HONG KONG OR SINGAPORE OR BRUNEI SPEC
*FGR=41:14=2.928
41110DPLUG (FOR REAR DIFFERENTIAL DRAIN)
41110EGASKET (FOR REAR DIFFERENTIAL DRAIN PLUG)
41110HPLUG (FOR REAR DIFFERENTIAL FILLER)
41110JGASKET (FOR REAR DIFFERENTIAL FILLER PLUG)
41110KPLUG, BREATHER (FOR REAR DIFFERENTIAL)
41181JCOVER, REAR DIFFERENTIAL CARRIER
41181PBOLT (FOR REAR DIFFERENTIAL CARRIER COVER SETTING)
sub90105-10361
41196DAMPER, REAR DIFFERENTIAL DYNAMIC
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
*FGR=41:14=2.928
*FGR=41:14=2.928,KOREA SPEC
*FGR=41:14=2.928,HONG KONG OR SINGAPORE OR BRUNEI SPEC
*FGR=41:14=2.928
41201ABEARING (FOR REAR DRIVE PINION REAR)
sub90366-34019
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
T=2.36,MARK 05
T=2.39,MARK 06
T=2.42,MARK 07
T=2.43,MARK 08
T=2.48,MARK 09
T=2.51,MARK 10
T=2.54,MARK 11
T=2.57,MARK 12
T=2.60,MARK 13
T=2.63,MARK 14
T=2.66,MARK 15
T=2.69,MARK 16
OD=47,T=2.27,MARK 02
OD=47,T=2.30,MARK 03
OD=47,T=2.33,MARK 04
T=2.30,MARK 30
T=2.31,MARK 31
T=2.32,MARK 32
T=2.33,MARK 33
T=2.34,MARK 34
T=2.35,MARK 35
T=2.36,MARK 36
T=2.37,MARK 37
T=2.38,MARK 38
T=2.39,MARK 39
T=2.40,MARK 40
T=2.41,MARK 41
T=2.42,MARK 42
T=2.43,MARK 43
T=2.44,MARK 44
T=2.45,MARK 45
T=2.46,MARK 46
T=2.47,MARK 47
T=2.48,MARK 48
T=2.49,MARK 49
T=2.50,MARK 50
T=2.51,MARK 51
T=2.52,MARK 52
T=2.53,MARK 53
T=2.54,MARK 54
T=2.55,MARK 55
T=2.56,MARK 56
T=2.57,MARK 57
T=2.58,MARK 58
T=2.59,MARK 59
T=2.60,MARK 60
T=2.61,MARK 61
T=2.62,MARK 62
T=2.63,MARK 63
T=2.64,MARK 64
T=2.65,MARK 65
T=2.66,MARK 66
T=2.67,MARK 67
T=2.68,MARK 68
T=2.69,MARK 69
T=2.70,MARK 70
T=2.71,MARK 71
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204BNUT (FOR REAR DRIVE PINION)
OD=33.5
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
41309ASHAFT SUB-ASSY, REAR DIFFERENTIAL SIDE GEAR
41309BWASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
T=2.22
T=2.25
T=2.28
T=2.31
T=2.34
T=2.37
T=2.40
T=2.43
T=2.46
T=2.49
T=2.52
T=2.55
T=2.58
T=2.61
T=2.64
T=2.67
T=2.70
T=2.73
T=2.76
T=2.79
T=2.82
T=2.85
T=2.88
T=2.91
T=2.94
T=2.97
T=3.00
T=3.03
T=3.06
T=3.09
T=3.12
T=3.15
T=3.18
T=3.21
41309CBOLT (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41309DSEAL OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41311JCASE, REAR DIFFERENTIAL
41331GEAR, REAR DIFFERENTIAL SIDE
41334DRING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41336COVER, DUST(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41341PINION, REAR DIFFERENTIAL
sub41341-12030
41342SHAFT, REAR DIFFERENTIAL PINION
41342BPIN, STRAIGHT (FOR REAR DIFFERENTIAL PINION SHAFT)
41351WASHER, REAR DIFFERENTIAL PINION THRUST
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.00,MARK 02
T=1.10,MARK 03
T=1.20,MARK 04
T=1.30,MARK 12
T=1.40,MARK 13
T=0.95,MARK 14
T=1.05,MARK 15
T=1.15,MARK 16
T=1.25,MARK 17
T=1.35,MARK 18
41651CUSHION, REAR DIFFERENTIAL MOUNT, NO.1
41651ACUSHION, REAR DIFFERENTIAL MOUNT, NO.2
52380SUPPORT, REAR DIFFERENTIAL, NO.1
SAUDI ARABIA,GULF SPEC
9011912315
main90119-12315
9011914099
main90119-14099
9011914109
main90119-14109
9017912100
main90179-12100
9017912155
main90179-12155
9090119050
main90901-19050
46 parts on this diagram · 1 diagram in section
