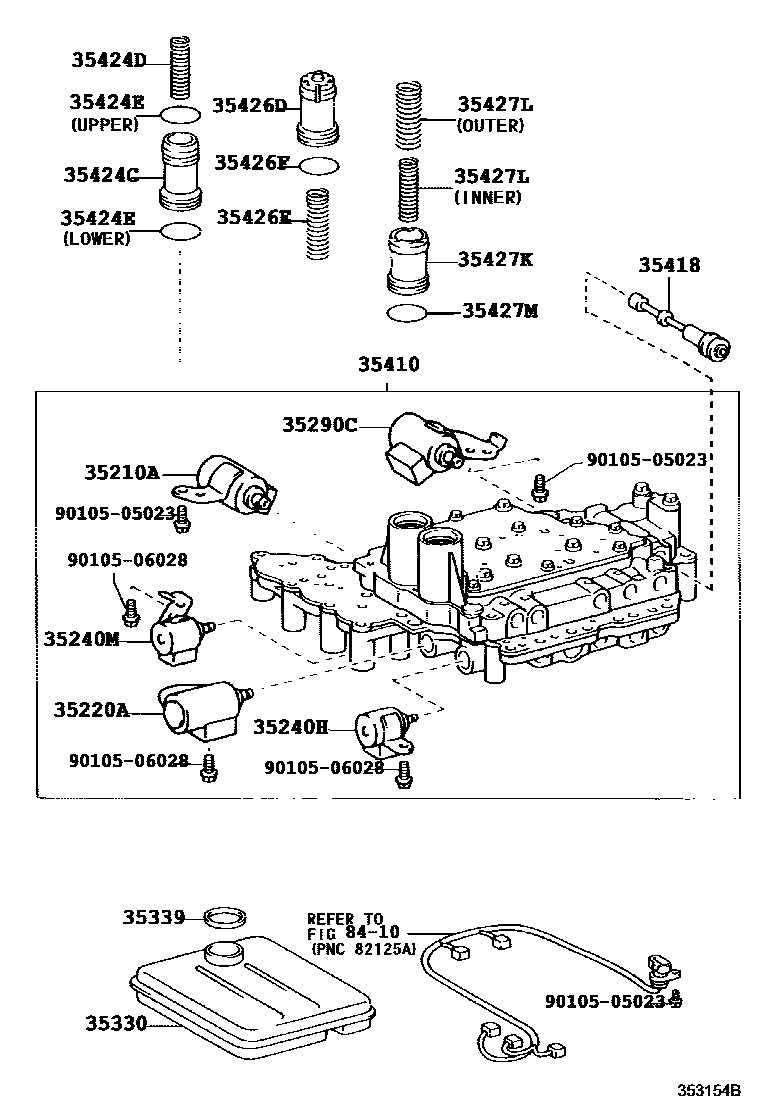

VALVE BODY & OIL STRAINER (ATM)

0001 1U140F 0002 1U140F 0003 1U140F

35210AVALVE, SOLENOID(SL1)

main35210-21010iMCU15200007

35220AVALVE, SOLENOID(SL2)

main35220-21010iMCU15200007

35240HVALVE, SOLENOID(S4)

main35230-21010iMCU15200007

35240MVALVE, SOLENOID(DSL)

main35240-21010iMCU15200007

35290CVALVE, SOLENOID(SLT)

main35290-21010iMCU15200007

35330STRAINER ASSY, VALVE BODY OIL

main35330-06010iMCU15200011

main35330-0W010iMCU15200007-200011

sub35330-06010

35339GASKET, OIL STRAINER

main90301-32010iMCU15200007

35410BODY ASSY, TRANSMISSION VALVE

main35410-48011iMCU15200007

35418VALVE, MANUAL

main35418-21011iMCU15200007

35424CPISTON, C-1 ACCUMULATOR

main35424-21010iMCU15200007

35424DSPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)

main90501-20151iMCU15200007

35424ERING, O (FOR C-1 ACCUMULATOR PISTON)

main90301-27008iMCU15200007

UPPER

main90301-30007iMCU15200007

LOWER

35426DPISTON, C-3 ACCUMULATOR

main35406-21010iMCU15200007

35426ESPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)

main90905-01035iMCU15200007

35426FRING, O (FOR C-3 ACCUMULATOR PISTON)

main90301-30007iMCU15200007

35427KPISTON, B-3 ACCUMULATOR

main35427-21010iMCU15200007

35427LSPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON)

main90501-22041iMCU15200007

INNER

main90501-25053iMCU15200007

OUTER

35427MRING, O (FOR B-3 ACCUMULATOR PISTON)

main90301-28008iMCU15200007

8410

9010505023

main90105-05023

9010506028

main90105-06028

21 parts on this diagram · 3 diagrams in section
