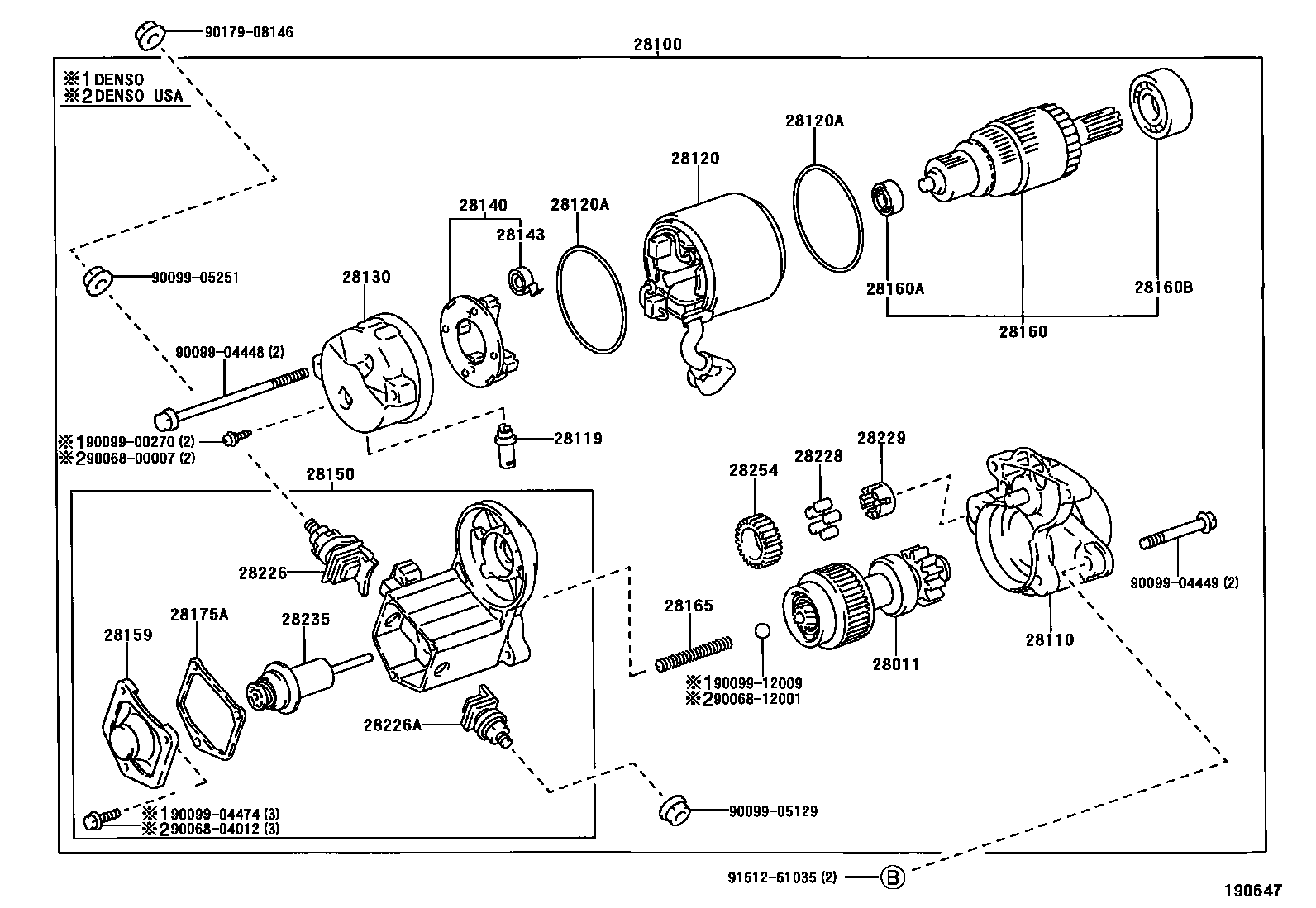

STARTER
28011CLUTCH SUB-ASSY, STARTER
28100STARTER ASSY
12V 1.4KW,DENSO USA
12V 1.4KW,DENSO
28110HOUSING ASSY, STARTER DRIVE
DENSO USA
DENSO
28119COVER, STARTER END FRAME
28120YOKE ASSY, STARTER
DENSO USA
DENSO
28120ARING, O(FOR STARTER YOKE)
DENSO USA
DENSO
28130FRAME ASSY, STARTER COMMUTATOR END
DENSO USA
DENSO
28140HOLDER ASSY, STARTER BRUSH
DENSO USA
DENSO
28143SPRING, STARTER BRUSH
28150SWITCH ASSY, MAGNET STARTER
DENSO USA
DENSO
28159COVER, STARTER PROTECTOR
DENSO USA
DENSO
28160ARMATURE ASSY, STARTER
DENSO USA
DENSO
28160ABEARING, STARTER ARMATURE
DENSO USA
DENSO
28160BBEARING, STARTER ARMATURE, NO.2
DENSO USA
DENSO
28165SPRING, STARTER MAGNET SWITCH RETURN
28175AGASKET, MAGNET SWITCH COVER
28226STARTER KIT, BATTERY TERMINAL
sub28226-64370
28226ASTARTER KIT, MOTOR TERMINAL
28228ROLLER, STARTER IDLE GEAR CLUTCH
28229RETAINER, STARTER IDLE GEAR
DENSO USA
DENSO
28235PLUNGER, MAGNET SWITCH
DENSO USA
DENSO
28254PINION, STARTER IDLE GEAR
DENSO USA
DENSO
9006800007
main90068-00007
9006804012
main90068-04012
9006812001
main90068-12001
9009900270
main90099-00270
9009904448
main90099-04448
9009904449
main90099-04449
9009904474
main90099-04474
9009905129
main90099-05129
9009905251
main90099-05251
9009912009
main90099-12009
9017908146
main90179-08146
9161261035
main91612-61035
34 parts on this diagram · 1 diagram in section
