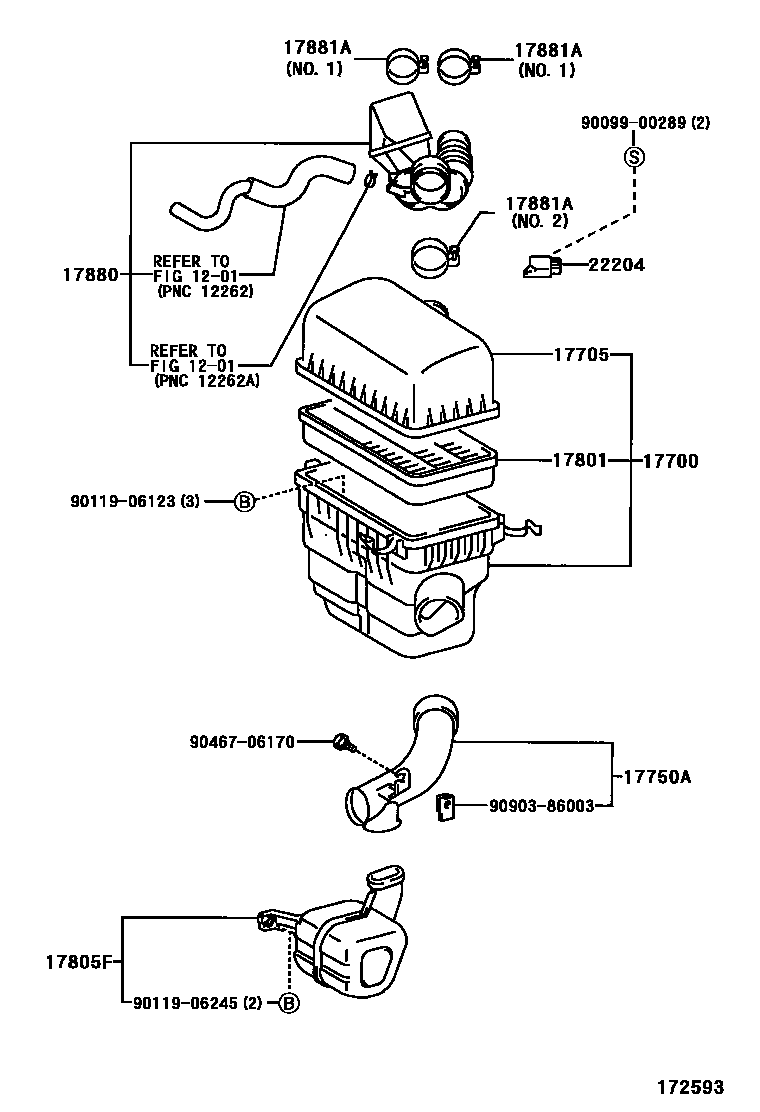

AIR CLEANER

1201

17700CLEANER ASSY, AIR

main17700-20081i1MZFE..MCU15200007-200106

sub17700-20082

main17700-20082i1MZFE..MCU15200106

17705CAP SUB-ASSY, AIR CLEANER

main17705-20151i1MZFE..MCU15200007-200106

sub17705-20152

main17705-20152i1MZFE..MCU15200106

17750AINLET ASSY, AIR CLEANER

main17750-20050i1MZFE..MCU15200007

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-03010i1MZFE..MCU15200007

(L)

main17801-74060i1MZFE..MCU15200007

(J)

17805FRESONATOR SUB-ASSY, INTAKE AIR

main17805-20030i1MZFE..MCU15200007

17880HOSE ASSY, AIR CLEANER

main17880-20080i1MZFE..MCU15200007

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10620i1MZFE..MCU15200007

NO.1

main96111-10850i1MZFE..MCU15200007

NO.2

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-21010i1MZFE..MCU15200007

9009900289

main90099-00289

9011906123

main90119-06123

9011906245

main90119-06245

9046706170

main90467-06170

9090386003

main90903-86003

14 parts on this diagram · 1 diagram in section
