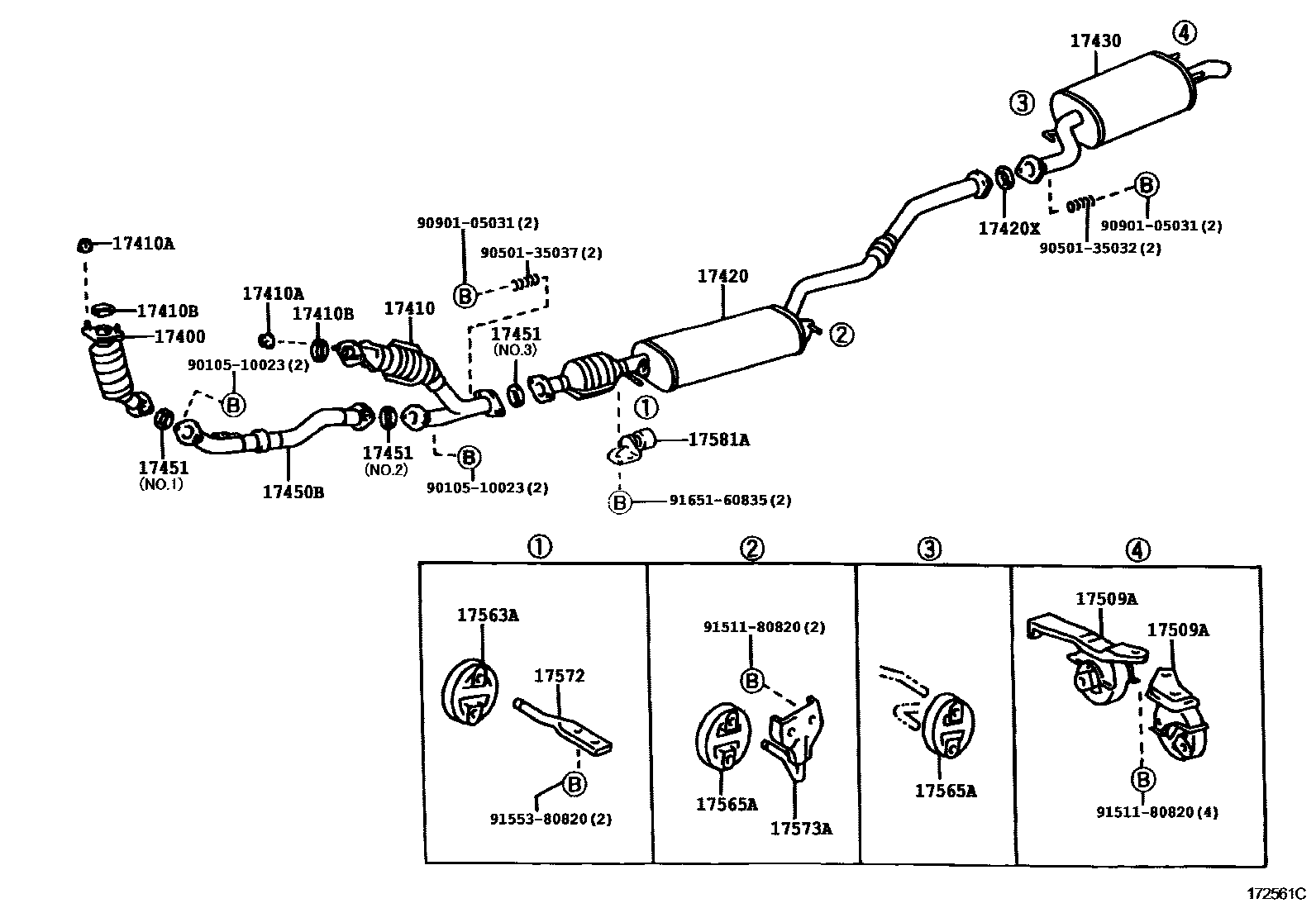

EXHAUST PIPE

17400CONVERTER ASSY, W/CATALYST

main18450-20280i1MZFE..MCU15200007-200302

*115=TOYOTA/00-03/Y

17410PIPE ASSY, EXHAUST, FRONT

main17410-20410i1MZFE..MCU15200007-200302

*115=TOYOTA/00-03/Y

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070i1MZFE..MCU15200007

17410BGASKET, EXHAUST PIPE

main90917-06075i1MZFE..MCU15200007

17420PIPE ASSY, EXHAUST, CENTER

main17420-20260i1MZFE..MCU15200007-200302

*115=TOYOTA/00-03/Y

17420XGASKET, EXHAUST PIPE, CENTER

main17451-74060i1MZFE..MCU15200007

17430PIPE ASSY, EXHAUST, TAIL

main17440-20160i1MZFE..MCU15200007

17450BPIPE ASSY, EXHAUST, FRONT NO.2

main17450-20072i1MZFE..MCU15200007

17451GASKET, EXHAUST PIPE

main17451-20020i1MZFE..MCU15200007

NO.3

main90917-06046i1MZFE..MCU15200007

NO.1

main90917-06078i1MZFE..MCU15200007

NO.2

17509ABRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT

main17509-20030i1MZFE..MCU15200007

RH

main17509-20040i1MZFE..MCU15200007

LH

17563ASUPPORT, EXHAUST PIPE, NO.3

main17565-15140i1MZFE..MCU15200007

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-55050i1MZFE..MCU15200007

17572BRACKET, EXHAUST PIPE NO.1 SUPPORT

main17572-20070i1MZFE..MCU15200007

17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3

main17573-20030i1MZFE..MCU15200007

17581ADAMPER, EXHAUST PIPE

main17581-46010i1MZFE..MCU15200007

9010510023

main90105-10023

9050135032

main90501-35032

9050135037

main90501-35037

9090105031

main90901-05031

9151180820

main91511-80820

9155380820

main91553-80820

9165160835

main91651-60835

22 parts on this diagram · 1 diagram in section
