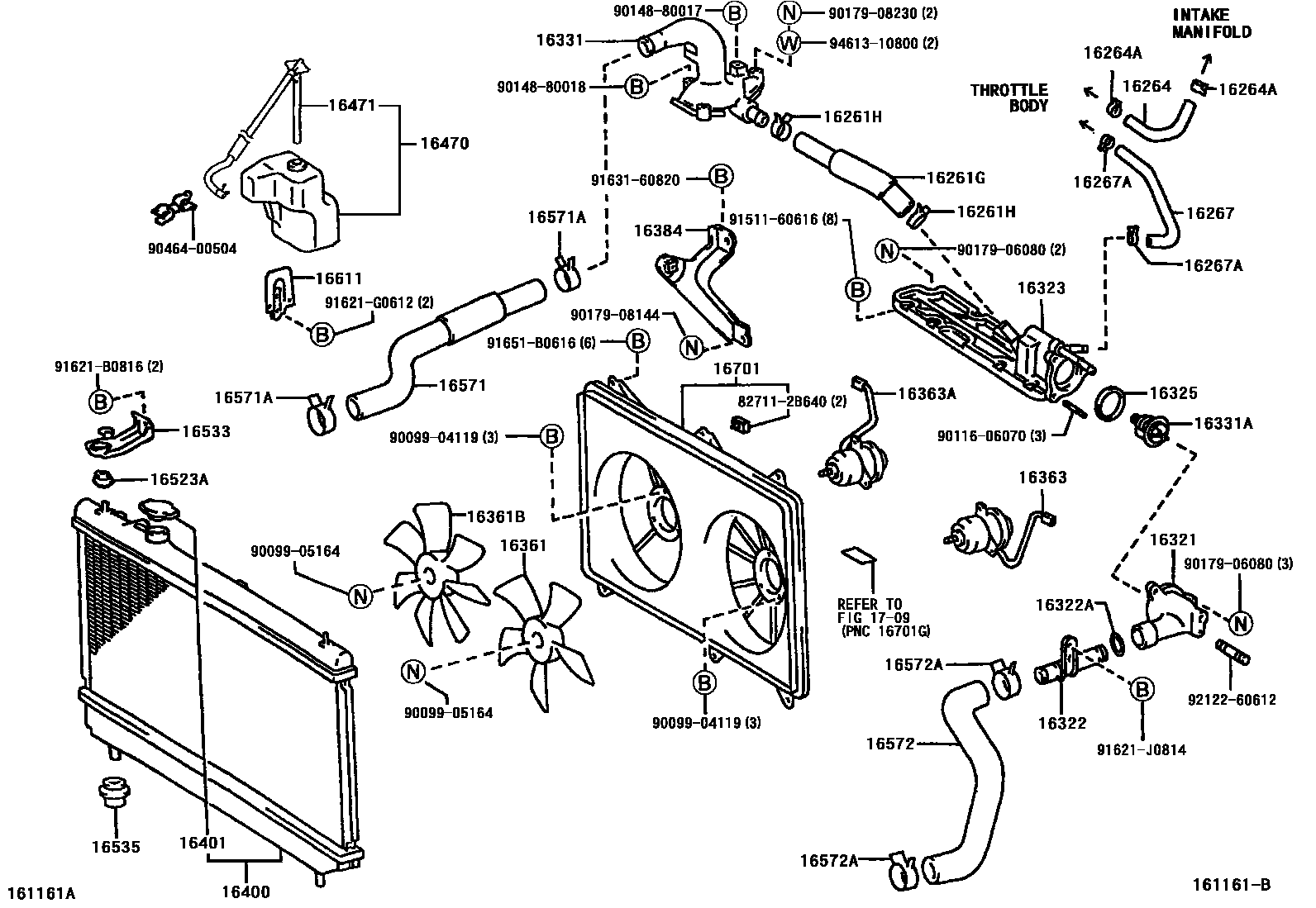

RADIATOR & WATER OUTLET
16261GHOSE, WATER BY-PASS, NO.1
16261HCLIP(FOR WATER BY-PASS HOSE NO.1)
16264HOSE, WATER BY-PASS, NO.2
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
sub96135-51300
16267HOSE, WATER BY-PASS, NO.3
16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
sub96135-51300
16321INLET, WATER
16322PIPE, WATER INLET
16322ARING, O(FOR WATER INLET)
16323HOUSING, WATER INLET
16325GASKET, WATER INLET HOUSING, NO.1
16331OUTLET, WATER
16331ATHERMOSTAT
16361FAN
16361BFAN, NO.2
16363MOTOR, COOLING FAN
16363AMOTOR, COOLING FAN, NO.2
16384BRACKET, FAN BELT ADJUSTING BAR
16400RADIATOR ASSY
16401CAP SUB-ASSY, RADIATOR
sub16401-31520
16470TANK ASSY, RADIATOR RESERVE
16471CAP SUB-ASSY, RESERVE TANK
16523ACUSHION, RADIATOR SUPPORT
16533SUPPORT, RADIATOR, UPPER
16535SUPPORT, RADIATOR, LOWER
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16611BRACKET, RADIATOR RESERVE TANK
16701SHROUD SUB-ASSY, FAN
1709
827112B640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2B640
9009904119
main90099-04119
9009905164
main90099-05164
9011606070
main90116-06070
9014880017
main90148-80017
9014880018
main90148-80018
9017906080
main90179-06080
9017908144
main90179-08144
9017908230
main90179-08230
9046400504
main90464-00504
9151160616
main91511-60616
91621B0816
main91621-B0816
91621G0612
main91621-G0612
91621J0814
main91621-J0814
9163160820
main91631-60820
91651B0616
main91651-B0616
9212260612
main92122-60612
9461310800
main94613-10800
50 parts on this diagram · 2 diagrams in section
