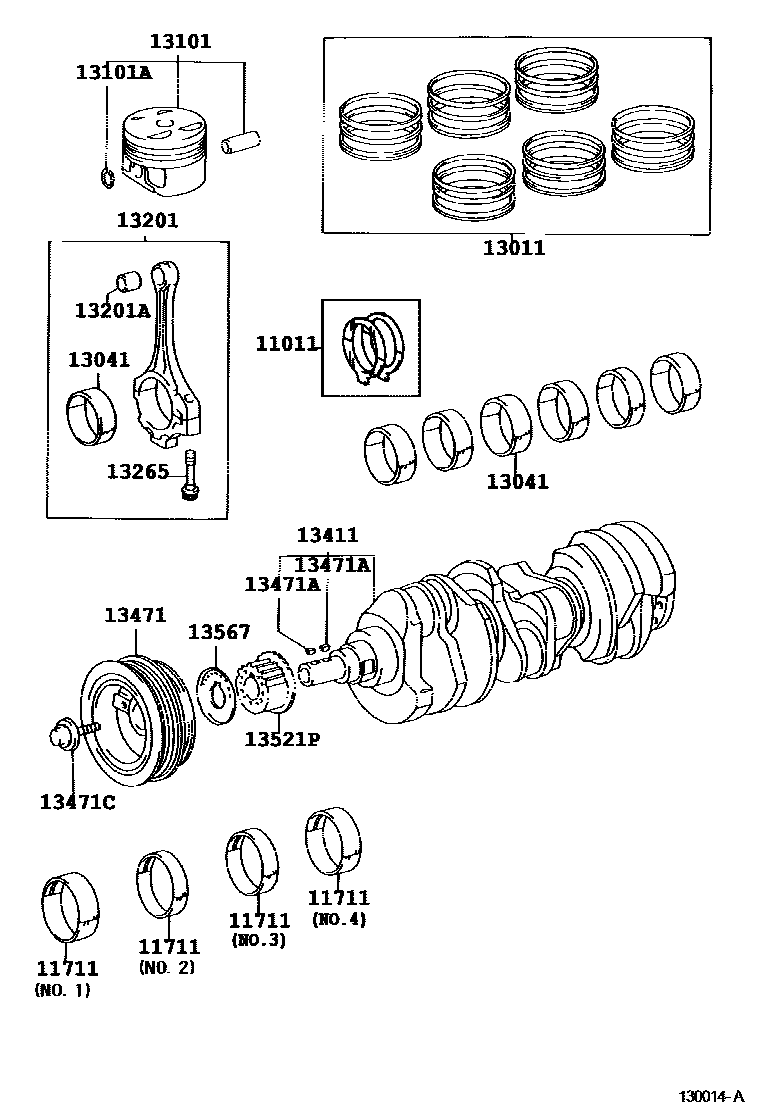

CRANKSHAFT & PISTON

11011WASHER SET, CRANKSHAFT THRUST

main11011-20020i1MZFE..MCU15200007

STD

11711BEARING, CRANKSHAFT

main11071-20020-01i1MZFE..MCU15200007-200302

REFER TO REPAIR MANUAL,MARK 1,NO.2,3

sub11071-20021

main11071-20020-02i1MZFE..MCU15200007-200302

REFER TO REPAIR MANUAL,MARK 2,NO.2,3

sub11071-20021

main11071-20020-03i1MZFE..MCU15200007-200302

REFER TO REPAIR MANUAL,MARK 3,NO.2,3

sub11071-20021

main11071-20020-04i1MZFE..MCU15200007-200302

REFER TO REPAIR MANUAL,MARK 4,NO.2,3

sub11071-20021

main11071-20020-05i1MZFE..MCU15200007-200302

REFER TO REPAIR MANUAL,MARK 5,NO.2,3

sub11071-20021

main11071-20020-06i1MZFE..MCU15200010-200302

REFER TO REPAIR MANUAL,MARK 6,NO.2,3

sub11071-20021

main11071-20020-07i1MZFE..MCU15200010-200302

REFER TO REPAIR MANUAL,MARK 7,NO.2,3

sub11071-20021

main11701-20020-01i1MZFE..MCU15200010-200302

REFER TO REPAIR MANUAL,MARK 1,NO.1,4

sub11701-20030

main11701-20020-02i1MZFE..MCU15200010-200302

REFER TO REPAIR MANUAL,MARK 2,NO.1,4

sub11701-20030

main11701-20020-03i1MZFE..MCU15200007-200302

REFER TO REPAIR MANUAL,MARK 3,NO.1,4

sub11701-20030

main11701-20020-04i1MZFE..MCU15200007-200302

REFER TO REPAIR MANUAL,MARK 4,NO.1,4

sub11701-20030

main11701-20020-05i1MZFE..MCU15200007-200302

REFER TO REPAIR MANUAL,MARK 5,NO.1,4

sub11701-20030

main11701-20020-06i1MZFE..MCU15200007-200302

REFER TO REPAIR MANUAL,MARK 6,NO.1,4

sub11701-20030

main11701-20020-07i1MZFE..MCU15200007-200302

REFER TO REPAIR MANUAL,MARK 7,NO.1,4

sub11701-20030

13041BEARING, CONNECTING ROD

main13041-20010-01i1MZFE..MCU15200007

MARK 1

sub13041-20011

main13041-20010-02i1MZFE..MCU15200007

MARK 2

sub13041-20011

main13041-20010-03i1MZFE..MCU15200007

MARK 3

sub13041-20011

main13041-20010-04i1MZFE..MCU15200007

MARK 4

sub13041-20011

13101PISTON SUB-ASSY, W/PIN

main13101-20030i1MZFE..MCU15200007-200107

STD,RH

main13101-20040i1MZFE..MCU15200107

STD,RH

sub13101-20041

main13301-20020i1MZFE..MCU15200007-200107

STD,LH

main13301-20030i1MZFE..MCU15200107

STD,LH

sub13301-20031

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-22025i1MZFE..MCU15200007

13201ROD SUB-ASSY, CONNECTING

main13201-29015i1MZFE..MCU15200007-200302

sub13201-29155

13201ABUSH(FOR CONNECTING ROD SMALL END)

main90999-73119i1MZFE..MCU15200007-200302

13265BOLT, CONNECTING ROD

main13265-28010i1MZFE..MCU15200206-200302

sub13265-28020

main13265-50020i1MZFE..MCU15200007-200206

13411CRANKSHAFT

main13401-20030i1MZFE..MCU15200007

13471PULLEY, CRANKSHAFT

main13408-0A010i1MZFE..MCU15200007

(L)

main13408-20010i1MZFE..MCU15200007

(J)

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main95161-30516i1MZFE..MCU15200007

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-16004i1MZFE..MCU15200007

13521PPULLEY, CRANKSHAFT TIMING

main13521-20020i1MZFE..MCU15200007

13567GUIDE, TIMING BELT, NO.2

main13567-62010i1MZFE..MCU15200007
