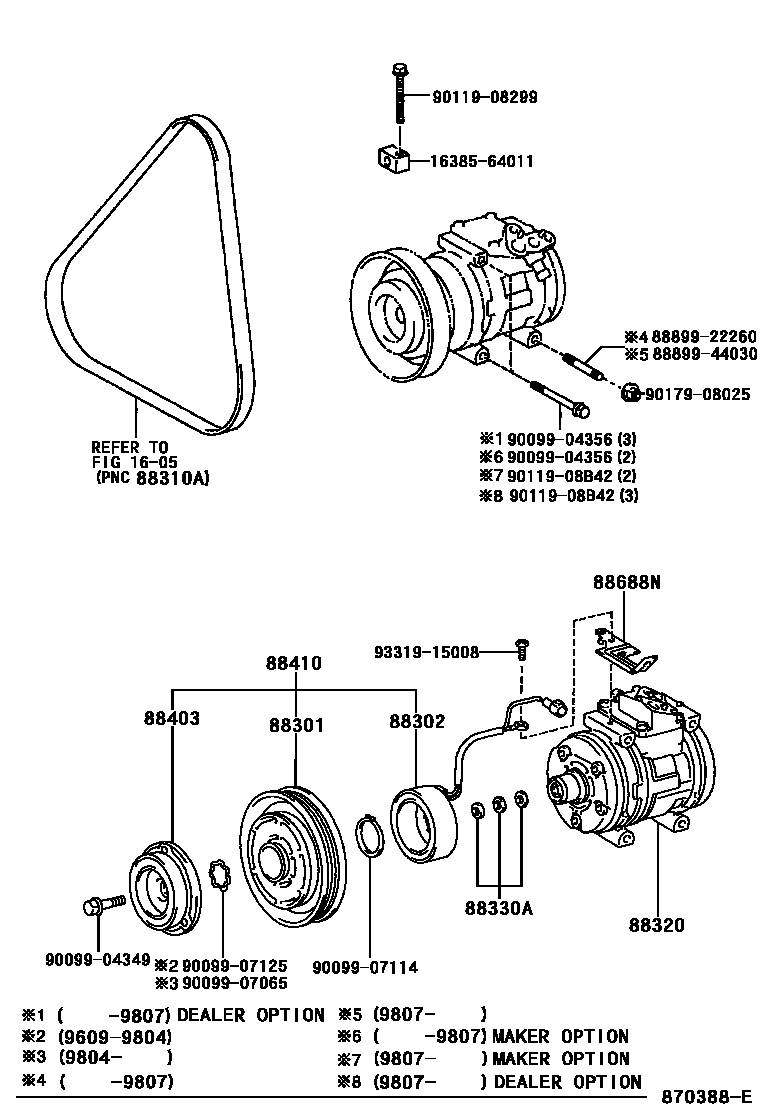

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

1605V-BELT

→ Go to FIG 16-05

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-32070iCXM10,SXM10199807-200008

main88412-44010iCXM10,SXM10199807-199808

DEALER OPTION

main88412-44010iCXM10,SXM10199609-199807

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-22310iSXM10199609-199708

main88411-2A030iCXM10,SXM10199708-199807

main88411-2A030iCXM10,SXM10199807-199808

DEALER OPTION

main88411-44010iCXM10,SXM10199807-200008

88320COMPRESSOR ASSY, COOLER

main88320-44010iSXM10199609-199804

main88320-44030iCXM10199709-199804

main88320-44050iSXM10199804-199808

DEALER OPTION

main88320-44070iCXM10199804-199807

main88320-44070iCXM10199807-199808

DEALER OPTION

main88320-44090iCXM10..RHD199808-200105

DEALER OPTION

main88320-44100iCXM10199807-200105

main88320-44110iSXM10199807-200105

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iCXM10,SXM10199609-200008

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-30290iCXM10,SXM10199609-199807

main88403-30290iCXM10,SXM10199807-199808

DEALER OPTION

main88403-32010iCXM10,SXM10199807-200008

88410CLUTCH ASSY, MAGNET

main88410-44010iCXM10,SXM10199807-199808

DEALER OPTION

main88410-44010iCXM10,SXM10199609-199807

main88410-44060iCXM10,SXM10199807-200008

88688NBRACKET, COOLER

main88688-2D800iCXM10199709-199808

main88688-33260iSXM10199609-199808

1638564011SLIDER, FAN BELT ADJUSTING

main16385-64011

8889922260COVER, EVAPORATOR

main88899-22260

8889944030COVER, EVAPORATOR

main88899-44030

9009904349

main90099-04349

9009904356

main90099-04356

9009907065

main90099-07065

9009907114

main90099-07114

9009907125

main90099-07125

9011908299

main90119-08299

9011908B42

main90119-08B42

9017908025

main90179-08025

9331915008

main93319-15008

20 parts on this diagram · 4 diagrams in section
