HEATING & AIR CONDITIONING - WATER PIPING

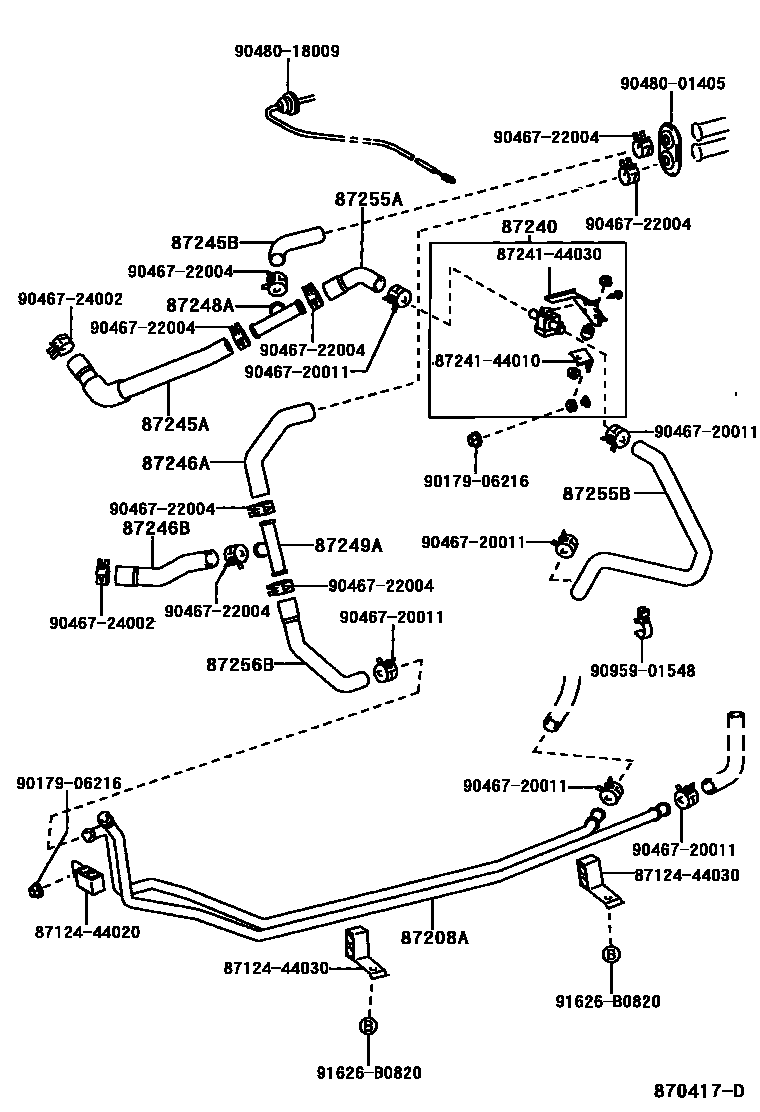

0001 1 0002 1 0003 1 0004 1 0005 1W(REAR HEATER) 0006 1W(REAR HEATER) 0007 1

87208APIPE SUB-ASSY, HEATER WATER, A

main87208-44010iSXM10..RHD199609-199705

sub87208-44030

main87208-44020iCXM10,SXM10..LHD199609-199804

sub87208-44070

main87208-44030iSXM10..RHD199705-199804

sub87208-44040

main87208-44040iSXM10..RHD199804

main87208-44050iCXM10..RHD199709-199804

sub87208-44060

main87208-44060iCXM10..RHD199804-200008

main87208-44070iCXM10,SXM10..LHD199804-200008

87240VALVE ASSY, HEATER WATER

main87240-44010iCXM10,SXM10..RHD199609-200008

main87240-44020iCXM10,SXM10..LHD199609-200008

87245AHOSE, HEATER WATER, INLET A

main87245-44030iSXM10..LHD199609

main87245-44050iSXM10..LHD199609

W(REAR HEATER)

main87245-44150iSXM10..RHD199609

main87245-44230iCXM10..LHD199709-200008

main87245-44280iCXM10..LHD199709-200008

W(REAR HEATER)

main87245-44350iCXM10..RHD199709-200008

87245BHOSE, HEATER WATER, INLET B

main87245-44140iSXM10..RHD199609

main87245-44200iSXM10..LHD199609

L=70

sub99556-30300

main87245-44300iCXM10..LHD199709-200008

L=70

sub99556-30300

main87245-44340iCXM10..RHD199709-200008

87246AHOSE, HEATER WATER, OUTLET A

main87245-44040iSXM10..LHD199609

main87245-44100iSXM10..RHD199609-200005

sub87245-44450

main87245-44170iSXM10..LHD199609

L=70,W(REAR HEATER)

sub99556-30300

main87245-44240iCXM10..LHD199709-200008

main87245-44260iCXM10..RHD199709-200008

main87245-44310iCXM10..LHD199709-200008

L=70,W(REAR HEATER)

sub99556-30300

main87245-44450iSXM10..RHD200005

87246BHOSE, HEATER WATER, OUTLET B

main87245-44060iSXM10..LHD199609

main87245-44110iSXM10..RHD199609-200005

sub87245-44460

main87245-44270iCXM10..RHD199709-200008

main87245-44290iCXM10..LHD199709-200008

main87245-44460iSXM10..RHD200005

87248APIPE, HEATER WATER INLET, A

main87248-08030iSXM10..RHD199812

main87248-12130iSXM10..RHD199609-199812

main87248-60460iCXM10;SXM10..LHD199609-200008

87249APIPE, HEATER WATER OUTLET, A

main87248-08030iCXM10,SXM10..RHD199811-200008

main87248-12130iSXM10..RHD199609-199812

main87248-60460iCXM10,SXM10..LHD199609-200008

87255AHOSE, REAR HEATER WATER INLET, A(FROM ENGINE)

main87245-44130iSXM10..RHD199609

main87245-44190iCXM10,SXM10..LHD199609-200008

main87245-44330iCXM10..RHD199709-200008

87255BHOSE, REAR HEATER WATER INLET, B

main87245-44120iSXM10..RHD199609-199705

sub87245-44360

main87245-44180iCXM10,SXM10..LHD199609-200008

main87245-44320iCXM10..RHD199709-200008

main87245-44360iSXM10..RHD199705

87256BHOSE, REAR HEATER WATER OUTLET, B

main87245-44080iSXM10..RHD199705-200005

sub87245-44440

main87245-44090iSXM10..RHD199609-199705

sub87245-44080

main87245-44160iCXM10,SXM10..LHD199609-200008

main87245-44250iCXM10..RHD199709-200008

main87245-44440iSXM10..RHD200005

8712444020CLAMP, HEATER

main87124-44020

8712444030CLAMP, HEATER

main87124-44030

8724144010CONTROLLER, WATER VALVE

main87241-44010

8724144030CONTROLLER, WATER VALVE

main87241-44030

9017906216

main90179-06216

9046720011

main90467-20011

9046722004

main90467-22004

9046724002

main90467-24002

9048001405

main90480-01405

9048018009

main90480-18009

9095901548

main90959-01548

91626B0820

main91626-B0820
