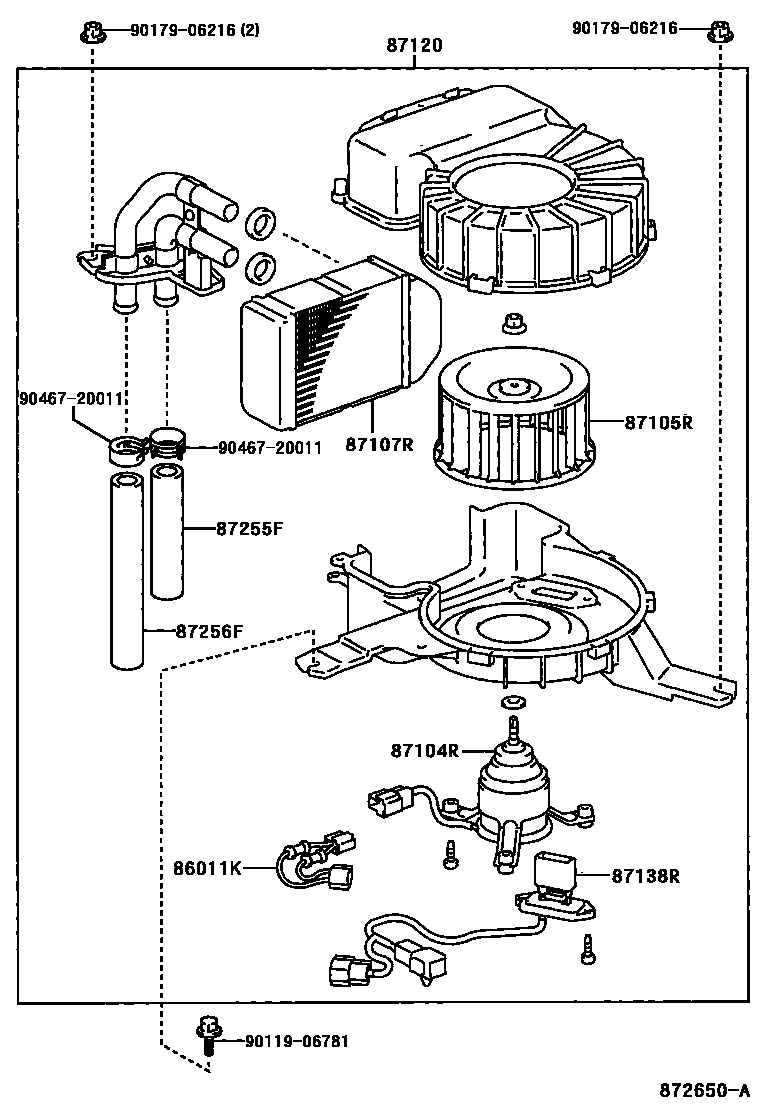

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

86011KFILTER, NOISE

main90980-05080iCXM10,SXM10199609-200008

87104RMOTOR SUB-ASSY, REAR HEATER BLOWER

main87104-44030iCXM10,SXM10199609-200008

sub87104-48010

87105RFAN SUB-ASSY, REAR HEATER BLOWER

main87105-28030iCXM10,SXM10199609-200008

87107RUNIT SUB-ASSY, REAR HEATER

main87107-44040iCXM10199709-200008

main87107-44050iSXM10199609-199804

main87107-44060iSXM10199804

87120HEATER ASSY, REAR

main87110-44010iSXM10199609-199804

main87110-44020iCXM10199709-199804

main87110-44030iSXM10199804

main87110-44040iCXM10199804-200008

87138RRESISTOR, REAR HEATER BLOWER

main88635-44010iCXM10,SXM10199609-200008

87255FHOSE, REAR HEATER WATER INLET, F(FOR HEATER UNIT)

main87245-44370iSXM10199707-199806

L=180

main87245-44410iCXM10199806-200008

sub99556-20300

main99556-20200iSXM10199609-199707

*H,L=180

87256FHOSE, REAR HEATER WATER OUTLET, F (FOR HEATER UNIT)

main87245-44380iCXM10,SXM10199707-200008

*H,L=240

main99556-20300iSXM10199609-199707

*H,L=240

9011906781

main90119-06781

9017906216

main90179-06216

9046720011

main90467-20011

11 parts on this diagram · 1 diagram in section
