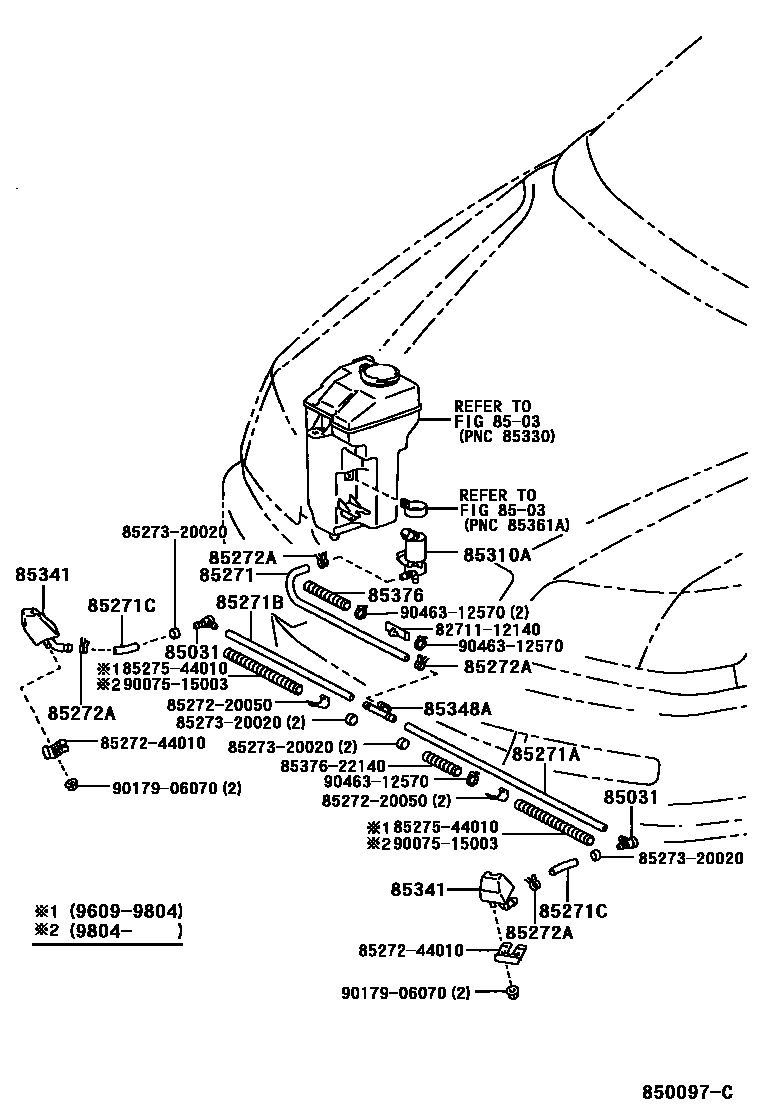

HEADLAMP CLEANER

8503

85031VALVE, HEADLAMP CLEANER WASHER HOSE

main85031-30020iCXM10,SXM10..LHD199609-199804

main85299-33020iCXM10,SXM10..LHD199804

85271HOSE, HEADLAMP CLEANER, NO.1

main85375-22061iCXM10,SXM10..LHD199609

L=640(*H,L=460)

85271AHOSE, HEADLAMP CLEANER, NO.2

main85375-22061iCXM10,SXM10..LHD199609-199804

L=640

main85375-22070iCXM10,SXM10..LHD199804

L=610

85271BHOSE, HEADLAMP CLEANER, NO.3

main85375-22061iCXM10,SXM10..LHD199609-199804

L=640(*H,L=410)

main90445-14039iCXM10,SXM10..LHD199804

L=220

85271CHOSE, HEADLAMP CLEANER, NO.4

main85275-42010iCXM10,SXM10..LHD199609-199804

L=45

main85375-32180iCXM10,SXM10..LHD199804

L=70

85272ACLAMP, HEADLAMP CLEANER, NO.1

main85272-20080iCXM10,SXM10..LHD199609

85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER

main85330-26020iCXM10,SXM10..LHD199609-200008

85341NOZZLE, HEADLAMP CLEANER WASHER

main85044-44010iCXM10,SXM10..LHD199609

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

main85279-33020iCXM10,SXM10..LHD199609

85376PROTECTOR, HEADLAMP CLEANER HOSE, NO.1

main85377-22070iCXM10,SXM10..LHD199609

sub85276-60180

8271112140WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12140

8527220050CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-20050

8527244010CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-44010

8527320020CABLE SUB-ASSY, HEADLAMP CLEANER, LH

main85273-20020

8527544010WIRING SUB-ASSY, HEADLAMP CLEANER

main85275-44010

8537622140PROTECTOR, HEADLAMP CLEANER HOSE, NO.1

main85376-22140

9007515003

main90075-15003

9017906070

main90179-06070

9046312570

main90463-12570

20 parts on this diagram · 1 diagram in section
