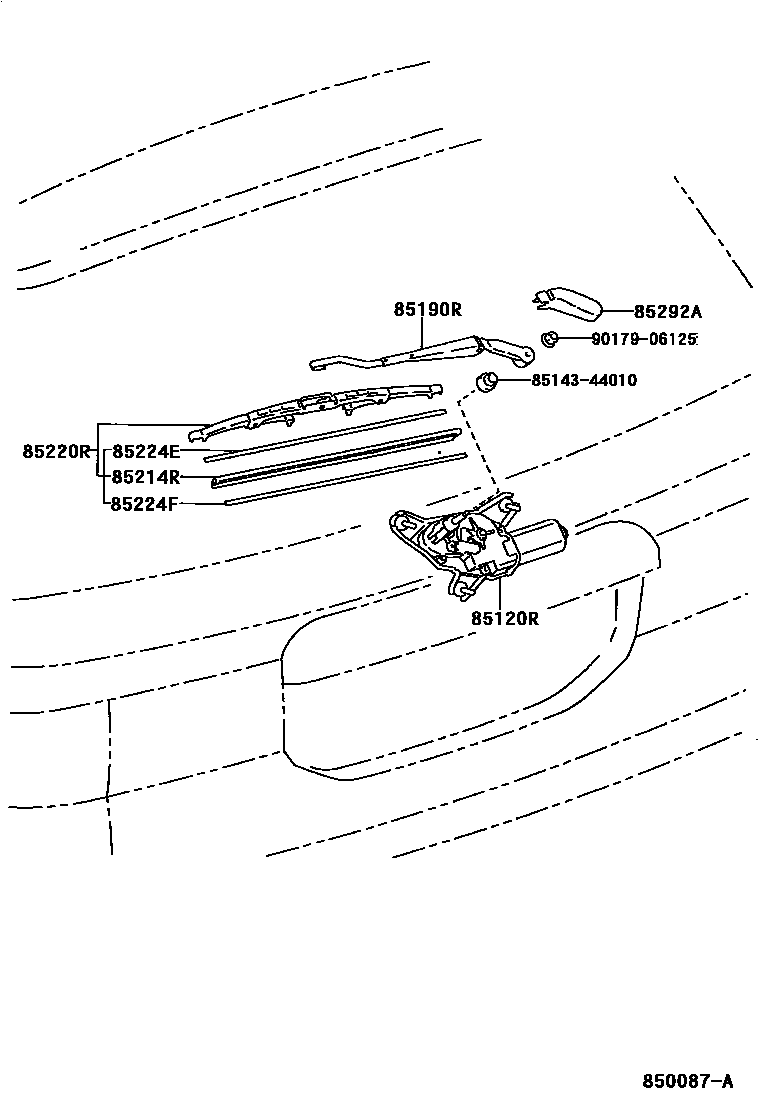

REAR WIPER

85120RMOTOR AND BRACKET ASSY, REAR WIPER

main85130-44010iCXM10,SXM10¥36,800199609-199804

sub85130-44020¥36,800

main85130-44020iCXM10,SXM10¥36,800199804-200008

85190RARM ASSY, REAR WIPER

main85241-44010iCXM10,SXM10¥2,710199609-199804

main85241-44020iCXM10,SXM10¥1,700199804-200008

85214RRUBBER, REAR WIPER

main85214-10100iCXM10,SXM10¥650199804-200008

main85214-44050iCXM10,SXM10¥830199609-199804

85220RBLADE ASSY, REAR WIPER

main85242-44010iCXM10,SXM10¥1,880199609-199804

main85242-60050iCXM10,SXM10¥2,090199804-200008

85224EPLATE, REAR WIPER RUBBER BACKING, NO.1

main85224-10200iCXM10,SXM10¥320199804-200008

main85224-44050iCXM10,SXM10¥330199609-199804

85224FPLATE, REAR WIPER RUBBER BACKING, NO.2

main85224-10200iCXM10,SXM10¥320199804-200008

main85224-44050iCXM10,SXM10¥330199609-199804

85292ACAP, REAR WIPER ARM HEAD

main85292-44020iCXM10,SXM10¥250199609-200008

8514344010WIRING, WINDSHIELD WIPER MOTOR LEAD

main85143-44010¥0

9017906125

main90179-06125¥120

9 parts on this diagram · 1 diagram in section
