WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-44020iCXM10,SXM10..RHD¥30,500199609-200008

main85110-44030iCXM10,SXM10..LHD¥30,500199609-200008

85150BLINK ASSY, WIPER

main85150-44010iCXM10,SXM10..RHD¥11,300199609-199804

main85150-44011iCXM10,SXM10..RHD¥11,300199804-200008

main85150-44020iCXM10,SXM10..LHD199609-199804

main85150-44021iCXM10,SXM10..LHD199804-200008

85211BARM, FRONT WIPER, RH

main85211-44020iCXM10,SXM10..RHD¥5,800199609-199804

main85211-44021iCXM10,SXM10..RHD¥6,000199804-200008

main85211-44030iCXM10,SXM10..LHD¥6,200199609-199804

main85211-44031iCXM10,SXM10..LHD¥6,700199804-200008

85212ABLADE, FR WIPER, RH

main85212-44030iCXM10,SXM10..LHD¥2,090199609-199804

sub85212-13030¥2,090

main85212-44031iCXM10,SXM10..LHD¥1,710199804-200008

sub85212-44032¥1,340

main85212-44040iCXM10,SXM10..RHD¥5,200199609-200008

sub85212-33180¥5,200

85214ARUBBER, WIPER, RH

main85214-44030iCXM10,SXM10..LHD¥830199609-199804

sub85214-50060¥830

main85214-44031iCXM10,SXM10..LHD¥830199804-200008

sub85214-68010¥960

main85214-44060iCXM10,SXM10..RHD¥960199609-200008

sub85214-50100¥850

85214BRUBBER, WIPER, LH

main85214-44020iCXM10,SXM10..RHD¥830199609-199804

sub85214-50130¥960

main85214-44040iCXM10,SXM10..LHD¥960199609-200008

sub85214-50100¥850

main85214-44080iCXM10,SXM10..RHD¥830199804-200008

85221BARM, FRONT WIPER, LH

main85221-44010iCXM10,SXM10..RHD¥6,400199609-199804

main85221-44011iCXM10,SXM10..RHD¥6,700199804-200008

main85221-44020iCXM10,SXM10..LHD¥5,800199609-199804

main85221-44021iCXM10,SXM10..LHD¥6,000199804-200008

85222ABLADE, FR WIPER, LH

main85222-44010iCXM10,SXM10..RHD¥2,090199609-199804

sub85222-50070¥2,090

main85222-44020iCXM10,SXM10..LHD¥4,260199609-200008

sub85222-33200¥5,200

main85222-44030iCXM10,SXM10..RHD¥1,710199804-200008

sub85222-44050¥1,710

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-44010iCXM10,SXM10..RHD¥480199609-200008

main85224-44030iCXM10,SXM10..LHD¥230199609-199804

sub85224-44020¥220

main85224-44031iCXM10,SXM10..LHD¥480199804-200008

sub85224-44070¥480

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-44010iCXM10,SXM10..RHD¥480199609-200008

main85224-44030iCXM10,SXM10..LHD¥230199609-199804

sub85224-44020¥220

main85224-44031iCXM10,SXM10..LHD¥480199804-200008

sub85224-44070¥480

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-44020iCXM10,SXM10..RHD¥220199609-199804

main85224-44040iCXM10,SXM10..LHD¥480199609-200008

sub85224-44010¥480

main85224-44070iCXM10,SXM10..RHD¥480199804-200008

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-44020iCXM10,SXM10..RHD¥220199609-199804

main85224-44040iCXM10,SXM10..LHD¥480199609-200008

sub85224-44010¥480

main85224-44070iCXM10,SXM10..RHD¥480199804-200008

85292BCAP, FRONT WIPER ARM HEAD

main85292-44010iCXM10,SXM10¥430199609-200008

9011906806

main90119-06806¥70

9017908113

main90179-08113¥120

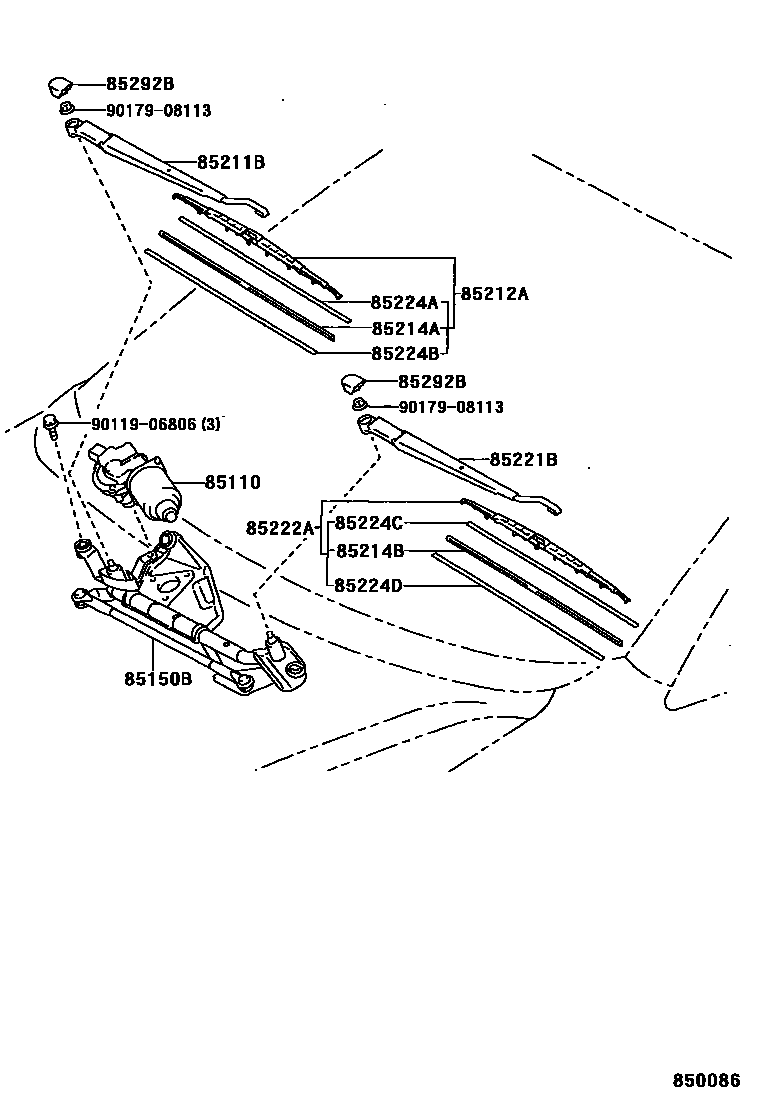

15 parts on this diagram · 1 diagram in section
