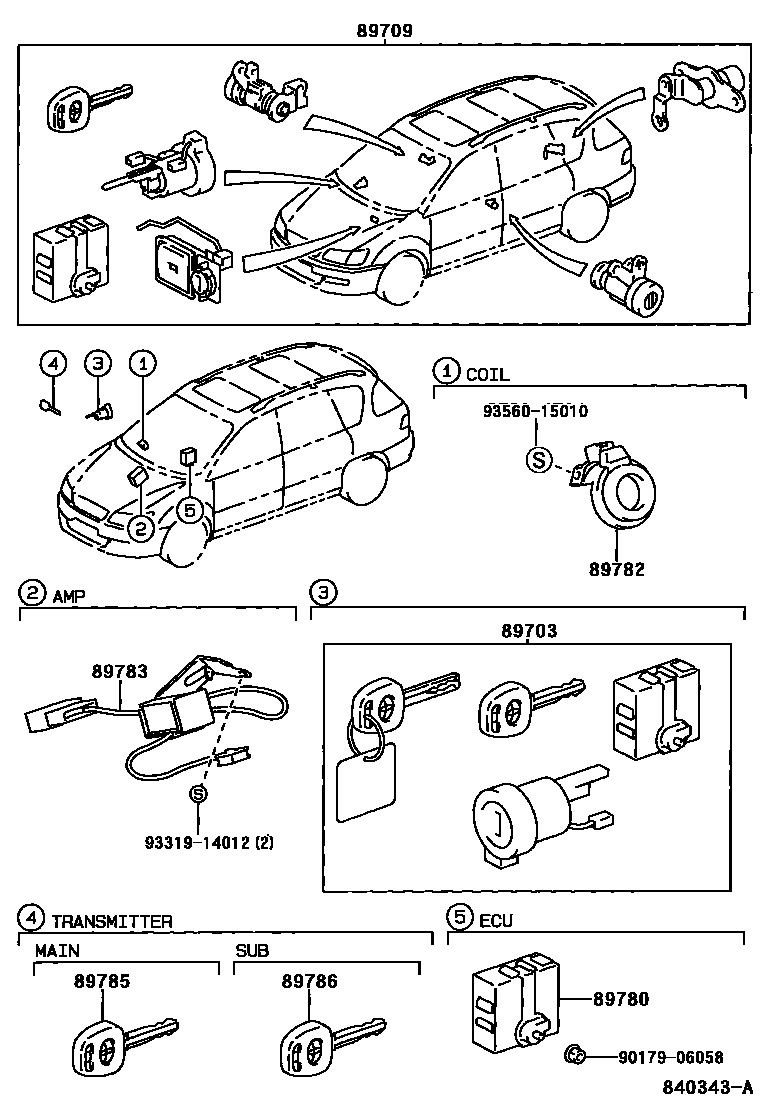

ANTI-THEFT DEVICE

89703CYLINDER & KEY SET, IGNITION W/TRANSPONDER

main89703-44010iSXM10199609-199708

main89703-44020iCXM10,SXM10199708-200007

89709COMPUTER SET, TRANSPONDER KEY

main89709-44010iSXM10199609-199708

main89709-44020iCXM10,SXM10199708-199804

main89709-44030iCXM10,SXM10199804-200007

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-44010iSXM10199609-199708

main89780-44020iCXM10,SXM10199708-200007

89782COIL, TRANSPONDER KEY

main89782-44010iCXM10,SXM10199609-200007

89783AMPLIFIER, TRANSPONDER KEY

main89783-44010iCXM10,SXM10199609-200007

89785TRANSMITTER, TRANSPONDER KEY MASTER

main89785-26020iCXM10,SXM10199609-200007

89786TRANSMITTER, TRANSPONDER KEY SUB

main89786-26020iCXM10,SXM10199609-200007

9017906058

main90179-06058

9331914012

main93319-14012

9356015010

main93560-15010

10 parts on this diagram · 1 diagram in section
