ABS & VSC

88263ARELAY, SKID CONTROL

main88263-24030iCXM10,SXM10¥3,890199609

89516WIRE, SKID CONTROL SENSOR

main89516-44010iCXM10,SXM10¥4,520199609

RH

main89516-44020iCXM10,SXM10¥4,510199609-199804

LH

main89516-44030iCXM10,SXM10¥2,190199804

LH

89540COMPUTER ASSY, SKID CONTROL

main89540-44010iSXM10..RHD¥59,900199609-199708

main89540-44030iSXM10..LHD¥94,900199609-199708

main89540-44050iCXM10,SXM10..RHD¥60,000199708-199804

main89540-44060iCXM10,SXM10..LHD¥60,000199708-199804

main89540-44070iCXM10,SXM10..RHD¥60,000199804

main89540-44090iCXM10,SXM10..LHD¥60,000199804

89542SENSOR, SPEED, FRONT RH

main89542-20130iCXM10,SXM10¥21,700199609-199905

main89542-44010iCXM10,SXM10¥21,700199905

89543SENSOR, SPEED, FRONT LH

main89543-20130iCXM10,SXM10¥21,700199609-199905

main89543-44010iCXM10,SXM10¥21,700199905

89544SENSOR, SKID CONTROL

main89544-44010iCXM10,SXM10¥13,500199609

9011906512

main90119-06512¥160

9017906070

main90179-06070¥180

9046706176

main90467-06176¥230

9161160612

main91611-60612¥130

9162660616

main91626-60616¥100

9162660618

main91626-60618¥100

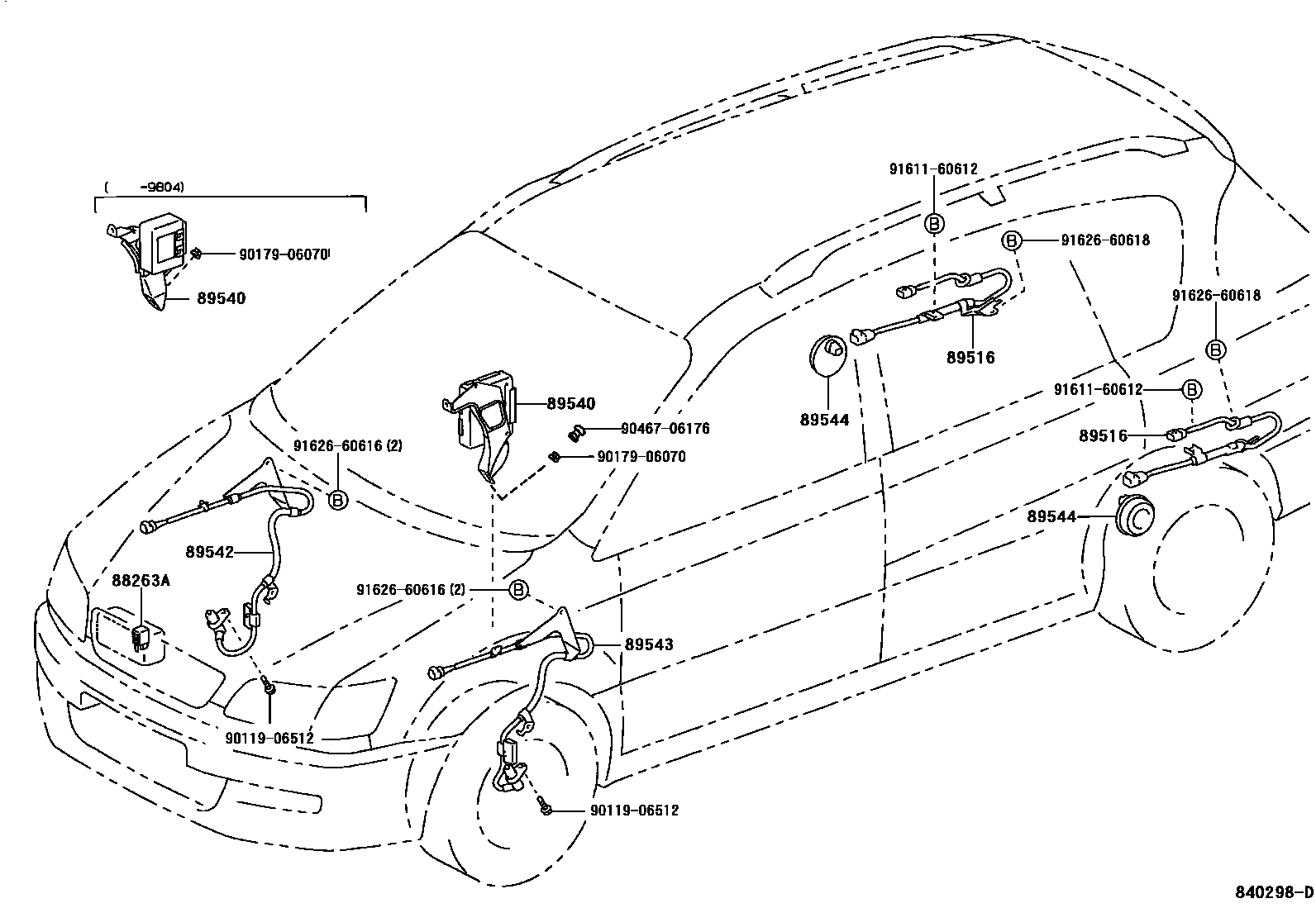

12 parts on this diagram · 1 diagram in section
