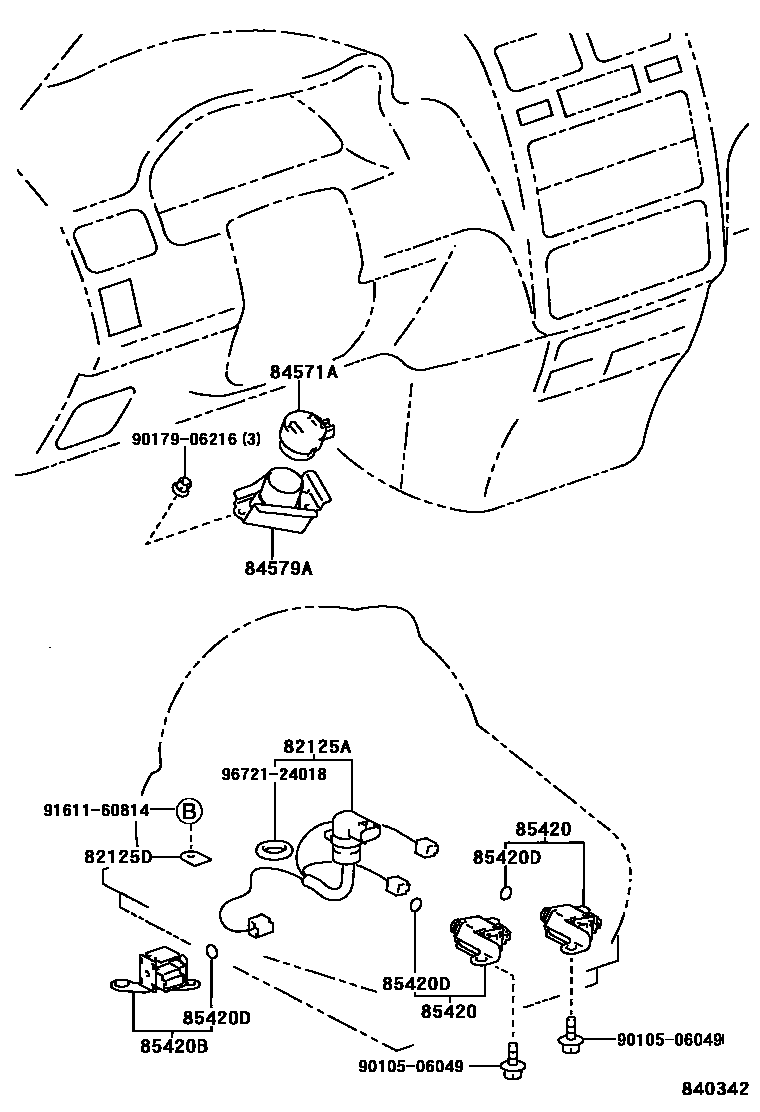

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1

82125AWIRE, TRANSMISSION

main82125-12350iSXM10..ATM199804

main82125-20220iSXM10..ATM199609-199804

82125DPLATE, TRANSMISSION WIRE LOCK

main33485-30020iSXM10..ATM199609-199804

84571ASWITCH, KICK DOWN

main84571-24010iSXM10..LHD..ATM199609

84579ABRACKET, KICK DOWN SWITCH

main84579-44010iSXM10..LHD..ATM199609

85420SOLENOID ASSY, TRANSMISSION

main85420-12100iSXM10..ATM199804-199809

NO.1

sub85420-21010

main85420-12120iSXM10..ATM199804-199809

NO.2

sub85420-21030

main85420-21010iSXM10..ATM199809

NO.1,DENSO

main85420-21020iSXM10..ATM199809

NO.1,AISIN

sub85420-21010

main85420-21030iSXM10..ATM199809

NO.2,DENSO

sub85420-21040

main85420-21040iSXM10..ATM199809

NO.2,AISIN

main85420-30200iSXM10..ATM199609-199804

sub85420-21090

85420BSOLENOID ASSY, TRANSMISSION

main85420-12140iSXM10..ATM199804-199809

sub85420-21050

main85420-20140iSXM10..ATM199609-199804

sub85420-21070

main85420-21050iSXM10..ATM199809

DENSO

sub85420-21060

main85420-21060iSXM10..ATM199809

AISIN

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004iSXM10..ATM199609-199804

9010506049

main90105-06049

9017906216

main90179-06216

9161160814

main91611-60814

9672124018

main96721-24018

11 parts on this diagram · 2 diagrams in section
