SWITCH & RELAY & COMPUTER

0001 1E/G & T/M 0002 1E/G & T/M 0003 1E/G & T/M 0004 1ENGONE ROOM 0005 1ENGINE ROOM 0006 1INSTRUMENT PANEL SW. 0007 1INSTRUMENT PANEL SW. 0008 1COWL 0009 1COWL 0010 1TURN SIGNAL SW. 0011 1DOOR,ROOF & FLOOR

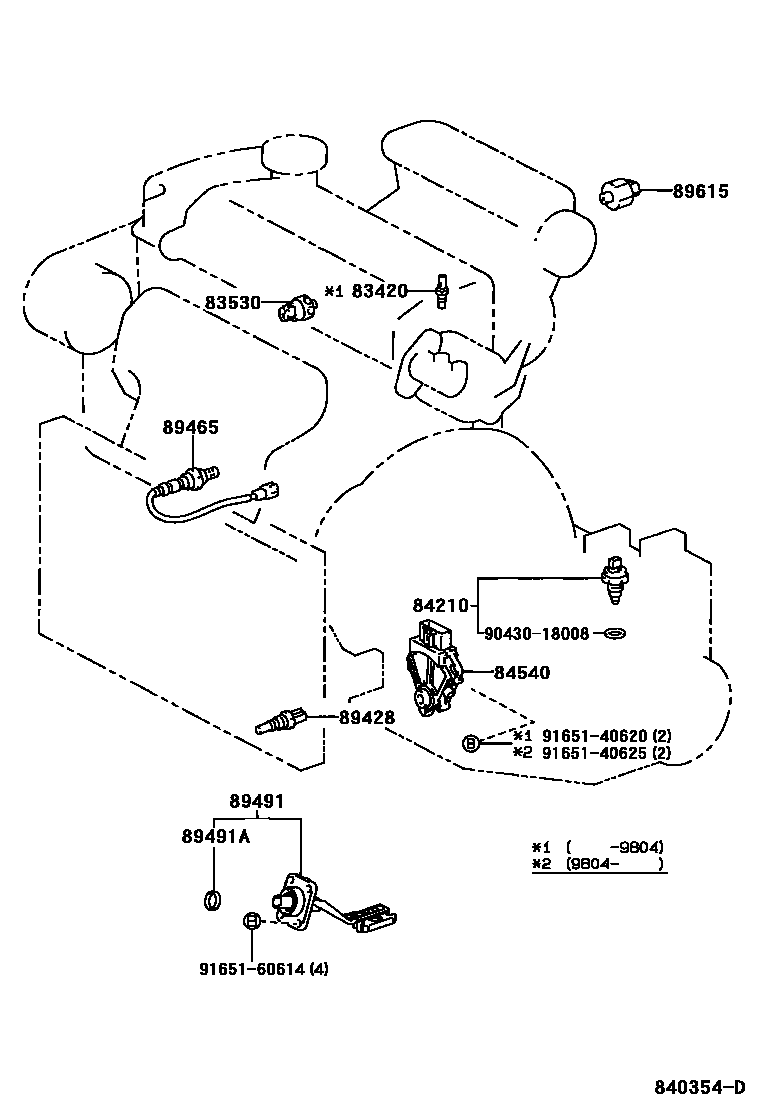

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iCXM10199709

main83420-20040iSXM10199609-199804

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iSXM10199803

DENSO

main83530-30090iSXM10199609-199803

YAZAKI

main83530-30100iCXM10199709-199803

main83530-60010iCXM10199803

main83530-60020iSXM10199803

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iCXM10,SXM10..MTM199609

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-12200iSXM10..ATM199804

TOKAIRIKA

main84540-12210iSXM10..ATM199804

MATSUSHITA

main84540-16050iSXM10..ATM199609-199804

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-20110iCXM10199709

main89428-33010iSXM10199609

89465SENSOR, OXYGEN

main89465-20430iSXM10199609-200005

main89465-44010iSXM10200005

89491SENSOR, ENGINE OIL LEVEL

main89491-20070iCXM10199709-199905

main89491-20071iCXM10199905

main89491-44010iSXM10199609

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iCXM10,SXM10199905

main90430-27001iCXM10199709-199905

89615SENSOR, KNOCK CONTROL

main89615-20030iSXM10199609-199910

TOYOTA

main89615-32030iSXM10199910

DENSO

main89615-32040iSXM10199910

TOYOTA

main89615-33020iSXM10199609-199910

DENSO

9043018008

main90430-18008

9165140620

main91651-40620

9165140625

main91651-40625

9165160614

main91651-60614

13 parts on this diagram · 11 diagrams in section
