METER

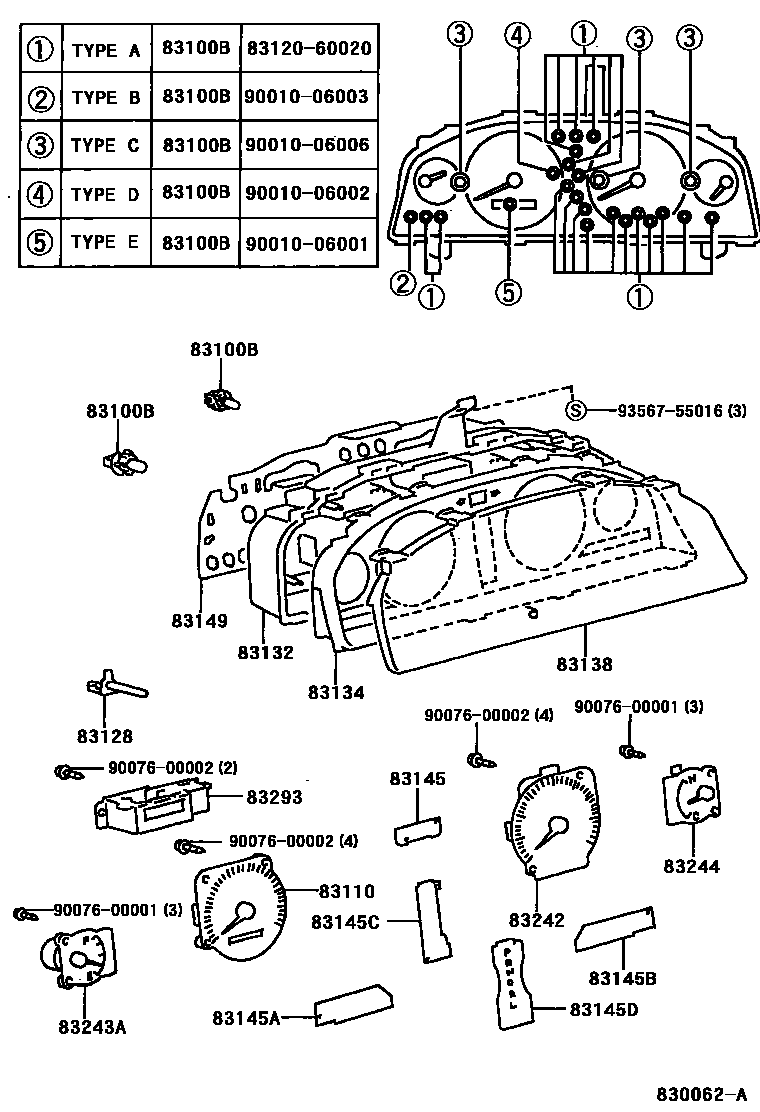

Parts diagram

83100BBULB, COMBINATION METER, NO.1

main83120-60020×19i199609

12V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION

main90010-06001i199609-199708

12V1.4W,W(GREEN CAP),TYPE E:REFER TO ILLUSTRATION

main90010-06002i200008

12V3.0W,W(GREEN CAP),TYPE D:REFER TO ILLUSTRATION

main90010-06003i199609-200008

14V 3.0W,W(SOCKET),TYPE B:REFER TO ILLUSTRATION

main90010-06006×3i200008

12V3.4W,W(GREEN CAP),TYPE C:REFER TO ILLUSTRATION

83110SPEEDOMETER ASSY

main83220-44020i199609

main83220-44030i199609

main83220-44040i199709-200008

main83220-44050i199709-200008

83128KNOB, TRIP COUNTER

main83224-44010i199804-200008

83132CASE, COMBINATION METER

main83841-44010i199609-200008

83134COVER, COMBINATION METER, NO.1

main83821-44010i199804

main83821-44040i199609-200008

main83851-44010i199609-199804

83138GLASS, SPEEDOMETER

main83852-20130i200008

83145LENS, METER, NO.1

main83831-20130i200008

83145ALENS, METER, NO.2

main83831-44030i199609-200008

83145BLENS, METER, NO.3

main83831-44090i199709-200008

main83832-44030i199609

83145CLENS, METER, NO.4

main83831-44010i199609

83145DLENS, METER, NO.5

main83887-44010i199609

83149PLATE, METER CIRCUIT

main83861-44030i199609

main83861-44040i199609

main83861-44100i200008

83242TACHOMETER ASSY, ENGINE

main83881-44010i199609

main83881-44090i199709-200008

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83882-44030i199609-200008

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83883-44010i199609-200008

83293COMPUTER, TOTAL COUNTER MODULE

main83293-44020i199902

NEW ZEALAND SPEC

main83293-44030i199609

main83293-44050i200008

main83293-44060i199709-200008

9007600001

main90076-00001

9007600002

main90076-00002

9356755016

main93567-55016
