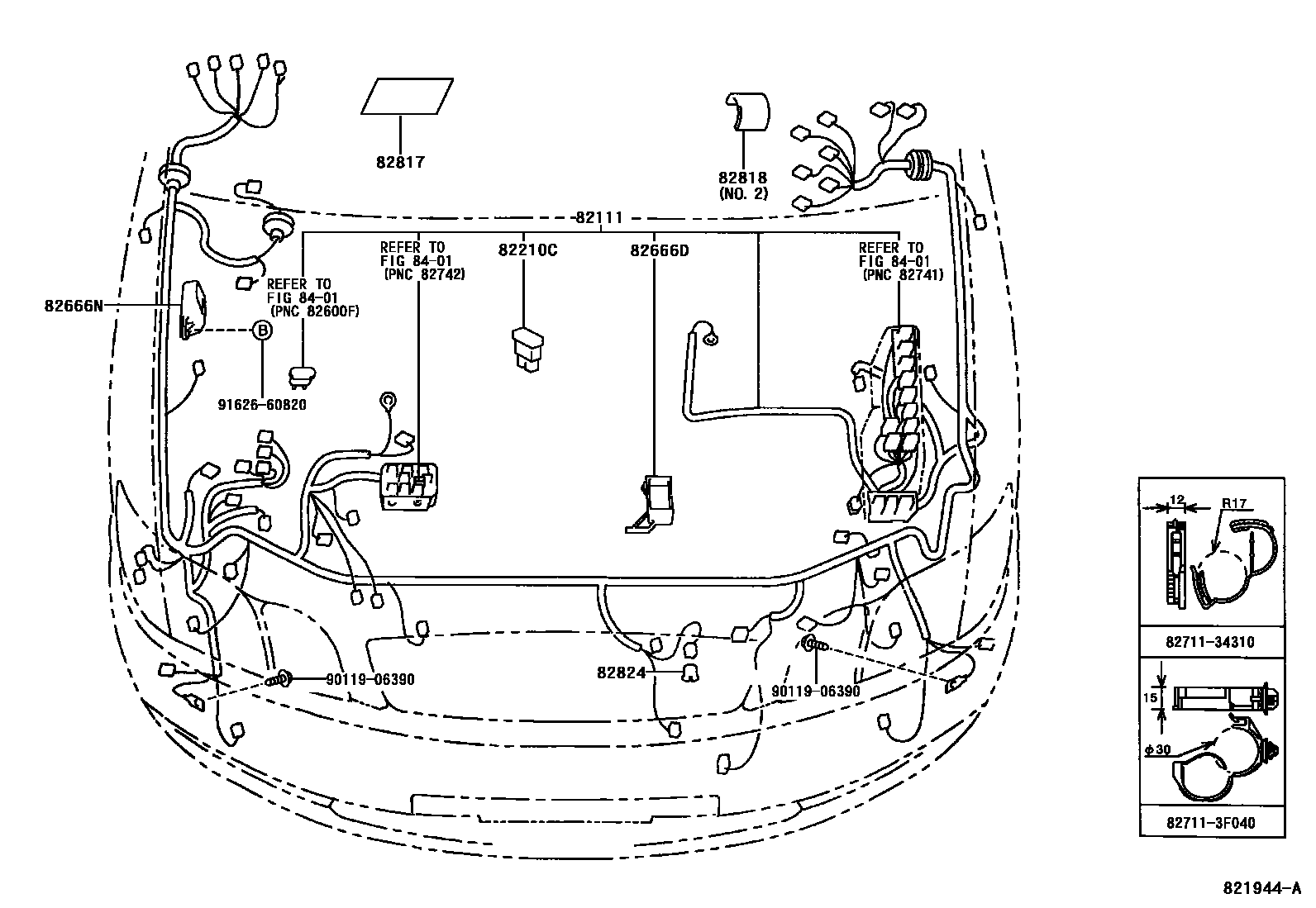

WIRING & CLAMP
82111WIRE, ENGINE ROOM MAIN
W(ABS)
W(ABS)
W(HEADLAMP CLEANER)
W(ABS & HEADLAMP CLEANER)
W(DAY TIME RUNNING LIGHT SYSTEM)
W(ABS & DAY TIME RUNNING LIGHT SYSTEM)
W(ABS)
W(ABS)
W(DAY TIME RUNNING LIGHT SYSTEM)
W(ABS & DAY TIME RUNNING LIGHT SYSTEM)
W(ABS)
W(HEADLAMP CLEANER)
W(ABS & HEADLAMP CLEANER)
W(DAY TIME RUNNING LIGHT SYSTEM)
W(ABS & DAY TIME RUNNING LIGHT SYSTEM)
W(ABS)
W(HEADLAMP CLEANER)
W(ABS & HEADLAMP CLEANER);W(ABS)
W(DAY TIME RUNNING LIGHT SYSTEM)
W(ABS & DAY TIME RUNNING LIGHT SYSTEM)
W(ABS)
W(ABS)
W(DAY TIME RUNNING LIGHT SYSTEM)
W(ABS & DAY TIME RUNNING LIGHT SYSTEM)
82210CFUSIBLE LINK
60A,TERM.:MALE,YEL
120A,TERM.:MALE,WHT
30A,TERM.:FEMALE,PNK
40A,TERM.:FEMALE,GRN
50A,FEMALE,RED,32VDC
15A,MINI FUSE,BLUE
82666DHOLDER, CONNECTOR NO.5
82666NHOLDER, CONNECTOR NO.10
82817PROTECTOR, WIRING HARNESS, NO.1
82818PROTECTOR, WIRING HARNESS, NO.2
NO.1
NO.2
82824CONNECTOR, WIRING HARNESS
8401
8271134310WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-34310
827113F040WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3F040
9011906390
main90119-06390
9162660820
main91626-60820
12 parts on this diagram · 13 diagrams in section
