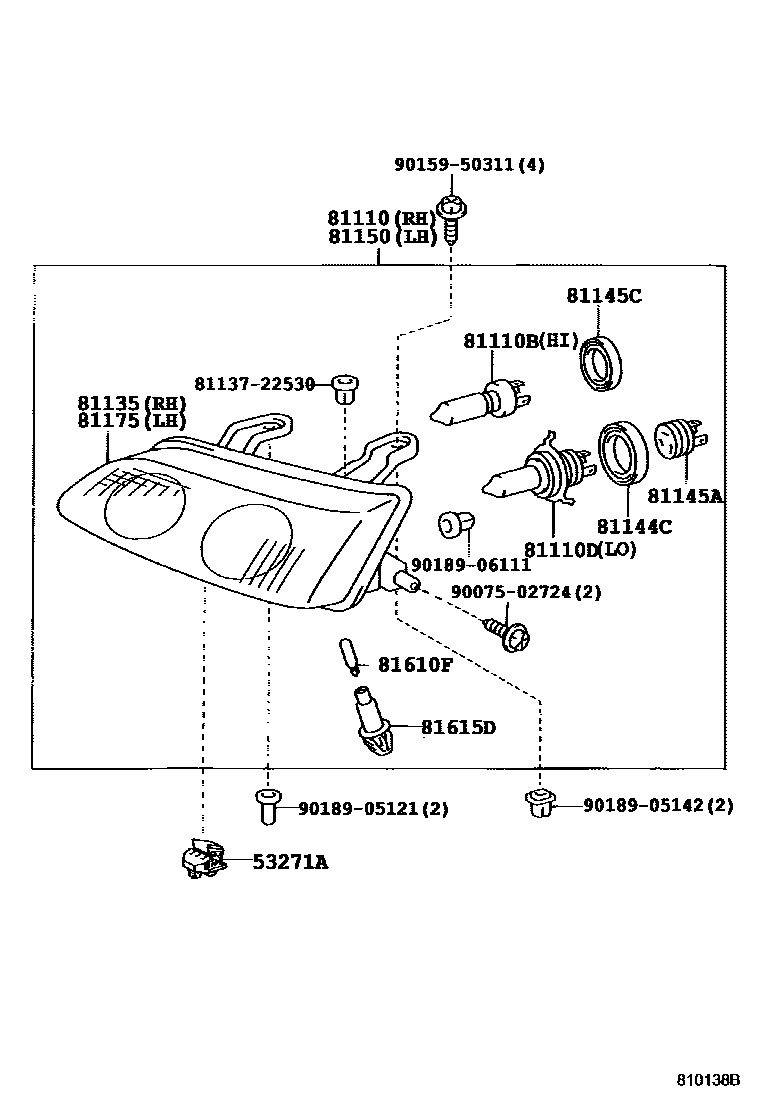

HEADLAMP
53271ABRACKET, HEADLAMP MOUNTING
81110HEADLAMP ASSY, RH
RH TRAFFIC
RH TRAFFIC
LH TRAFFIC
LH TRAFFIC
HEADLAMP FOR RIGHT SIDE TRAFFIC
81110BBULB(FOR HEADLAMP, NO.1)
12V 65W
81110DBULB(FOR HEADLAMP, NO.2)
12V 55W,HALOGEN
81135UNIT ASSY, HEADLAMP, RH
RIGHT SIDE TRAFFIC
RIGHT SIDE TRAFFIC
LEFT SIDE TRAFFIC
LEFT SIDE TRAFFIC
RIGHT SIDE TRAFFIC
81144CCOVER, HEADLAMP SOCKET
81145AADAPTER ASSY
81145CCOVER, HEADLAMP SOCKET, NO.2
81150HEADLAMP ASSY, LH
RH TRAFFIC
RH TRAFFIC
LH TRAFFIC
LH TRAFFIC
HEADLAMP FOR RIGHT SIDE TRAFFIC
81175UNIT ASSY, HEADLAMP, LH
RIGHT SIDE TRAFFIC
RIGHT SIDE TRAFFIC
LEFT SIDE TRAFFIC
LEFT SIDE TRAFFIC
RIGHT SIDE TRAFFIC
81610FBULB(FOR CLEARANCE LAMP)
12V 5W
81615DSOCKET, CLEARANCE LAMP
8113722530PROTECTOR, HEADLAMP, NO.2 RH
main81137-22530
9007502724
main90075-02724
9015950311
main90159-50311
9018905121
main90189-05121
9018905142
main90189-05142
9018906111
main90189-06111
18 parts on this diagram · 1 diagram in section
