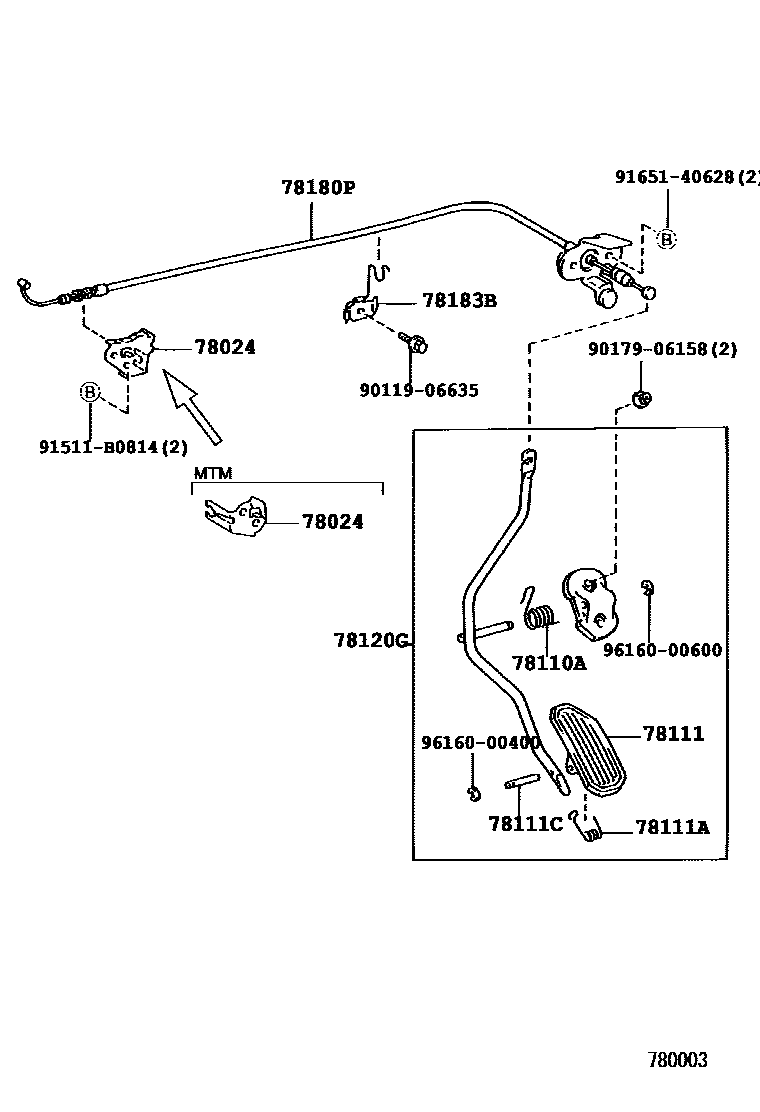

ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-44010iSXM10..MTM199609

main78024-44020iSXM10..ATM199609

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18048iSXM10..RHD..ATM199609

main90508-26036iSXM10..RHD..MTM199609

main90959-03098iSXM10..LHD..MTM199609

main90959-03099iSXM10..LHD..ATM199609

78111PEDAL, ACCELERATOR

main78111-20050iCXM10,SXM10..RHD199609

main78111-20060iSXM10..LHD199804-199901

main78111-33020iSXM10..LHD199901

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-18050iSXM10..RHD199609

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iCXM10,SXM10..RHD199609

main90249-08198iSXM10..LHD..MTM199804

main90254-04019iSXM10..LHD..ATM199804

78120GROD ASSY, ACCELERATOR PEDAL

main78120-44010iSXM10..RHD..ATM199609

main78120-44020iSXM10..LHD..ATM199609

main78120-44030iSXM10..LHD..MTM199609

main78120-44040iSXM10..RHD..MTM199609

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-44010iSXM10..RHD..ATM199609

main78180-44020iSXM10..LHD..ATM199609

main78180-44030iSXM10..LHD..MTM199609

main78180-44040iSXM10..RHD..MTM199609

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-44010iSXM10..RHD199609

sub78183-44030

9011906635

main90119-06635

9017906158

main90179-06158

91511B0814

main91511-B0814

9165140628

main91651-40628

9616000400

main96160-00400

9616000600

main96160-00600

14 parts on this diagram · 4 diagrams in section
