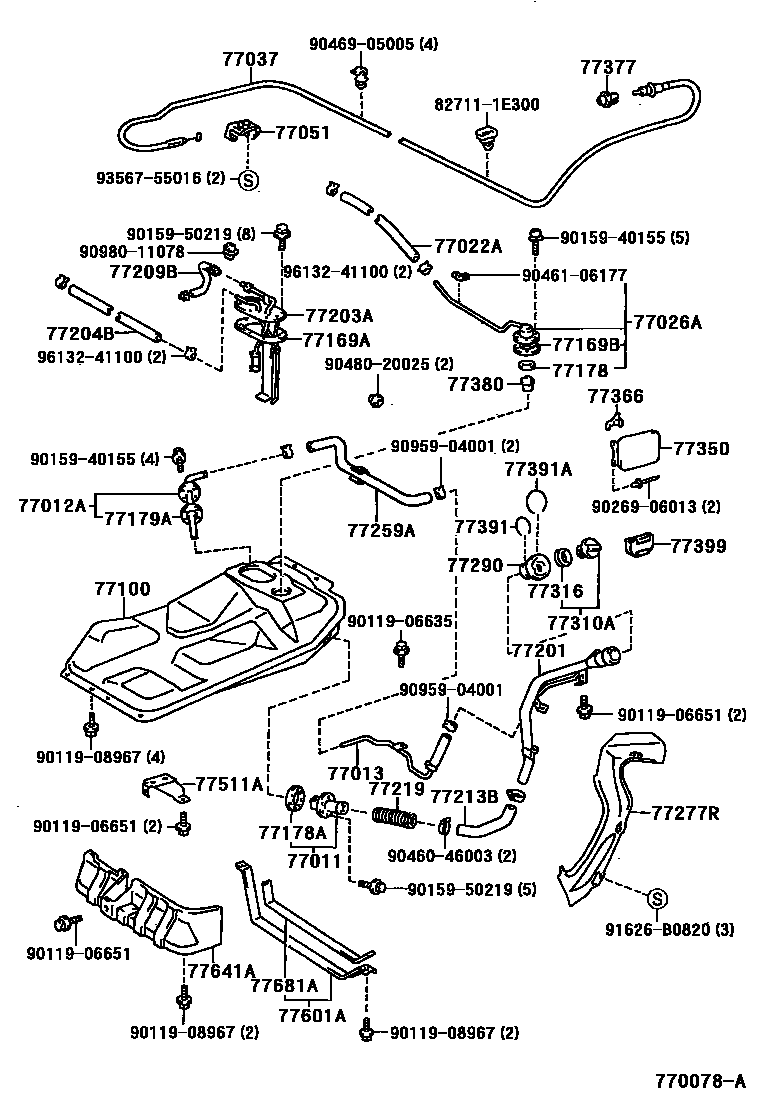

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-28010iCXM10,SXM10¥1,290199609

77012ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.1

main77012-44020iCXM10,SXM10¥3,520199609

77013TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2

main77013-44010iCXM10,SXM10¥4,900199609

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main95333-06060iSXM10¥1,020199609

*H,L=500

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-44020iCXM10,SXM10¥3,050199609

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-44010iCXM10,SXM10..RHD¥2,730199609

main77037-44020iCXM10,SXM10..LHD¥2,320199609

77051LEVER SUB-ASSY, FUEL LID OPEN

main77051-44010-B0iCXM10,SXM10199609-200105

MD.MOON MIST,TRIM1#

sub77051-44010¥1,980

77100TANK ASSY, FUEL

main77001-44020iCXM10¥46,300199709

main77001-44900iSXM10¥46,300199609

77169AGASKET, FUEL SUCTION TUBE SET

main77169-60010iSXM10¥1,030199609

77169BGASKET, FUEL SUCTION TUBE SET, NO.1

main77169-14020iCXM10,SXM10¥330199609

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-44010iCXM10,SXM10¥70199609

77178AGASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20030iCXM10,SXM10¥120199609

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-14030iCXM10,SXM10¥230199609

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-44020iCXM10¥13,600199709

main77201-44030iSXM10¥13,200199609

77203ATUBE SUB-ASSY, FUEL SUCTION

main77203-44020iSXM10¥8,500199609

77204BHOSE, FUEL(FOR FUEL RETURN)

main95333-06020iSXM10¥480199609

sub95337-06020¥570

77209BTUBE SUB-ASSY, FUEL PUMP

main77209-44010iSXM10¥2,380199609

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-44010iCXM10,SXM10¥3,500199609

77219COVER, FUEL TANK FILLER PIPE

main77219-44010iCXM10,SXM10¥580199609

77259AHOSE, FUEL(FOR BREATHER TUBE)

main77049-44010iCXM10,SXM10¥2,400199609

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-44010iCXM10,SXM10¥2,250199609

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77291-44010iCXM10,SXM10¥3,060199609-199804

sub77291-44011¥2,490

sub77360-44010¥440

main77291-44011iCXM10,SXM10¥2,490199804

77310ACAP ASSY, FUEL TANK

main77300-28010iSXM10¥1,740200005

main77310-12150iCXM10¥2,780199804

main77310-35080iSXM10¥2,790199609-199804

sub77310-12140¥2,790

main77310-35110iCXM10¥2,790199709-199804

sub77310-12150¥2,780

main77310-48020iSXM10¥2,780199804-200005

77316GASKET, FUEL TANK CAP

main77316-16010iCXM10,SXM10¥660199609

77350LID ASSY, FUEL FILLER OPENING

main77350-44010iCXM10,SXM10¥3,590199609

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-12080iCXM10,SXM10¥430199609-199804

main77360-44010iCXM10,SXM10¥440199804-200008

sub77360-44020¥370

main77360-44020iCXM10,SXM10¥370200008

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12050iCXM10,SXM10¥300199609

77380VALVE ASSY, FUEL CUT OFF

main77380-26010iCXM10,SXM10¥780199609

77391RING, FUEL INLET BOX

main77391-12020iCXM10,SXM10¥180199609

77391ARING, FUEL INLET BOX

main77391-44010iCXM10,SXM10¥360199609

77399HANGER, FUEL TANK CAP

main77399-28010iCXM10,SXM10¥510199609

77511ABRACKET, FUEL TANK

main77511-44010iCXM10,SXM10¥1,290199609

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-44010iCXM10,SXM10¥2,470199609

77641APROTECTOR, FUEL TANK, NO.1

main77641-44010iCXM10,SXM10¥1,810199609

77681ASEAT, FUEL TANK BAND

main77681-32060iCXM10,SXM10¥1,900199609

827111E300WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E300¥70

9011906635

main90119-06635¥120

9011906651

main90119-06651¥70

9011908967

main90119-08967¥200

9015940155

main90159-40155¥120

9015950219

main90159-50219¥70

9026906013

main90269-06013¥60

9046046003

main90460-46003¥310

9046106177

main90461-06177¥590

9046905005

main90469-05005¥220

9048020025

main90480-20025¥130

9095904001

main90959-04001¥240

9098011078

main90980-11078¥300

91626B0820

main91626-B0820¥130

9356755016

main93567-55016¥110

9613241100

main96132-41100¥160

51 parts on this diagram · 5 diagrams in section
