E
EPC Data

MUDGUARD & SPOILER

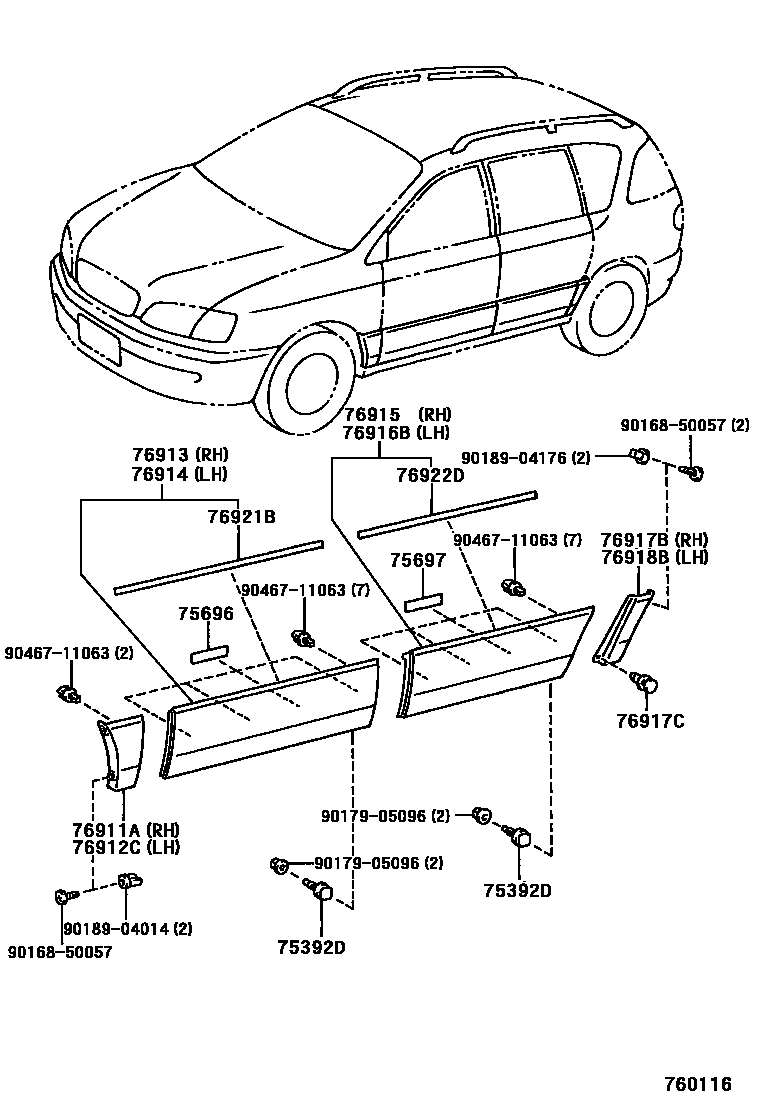

Parts diagram
75392DRETAINER, OUTSIDE MOULDING
main75392-42011i199609
75696PAD, BODY OUTSIDE MOULDING, NO.1
main75696-42010i199609
75697PAD, BODY OUTSIDE MOULDING, NO.2
main75696-42010i199609
76911AMUDGUARD, FENDER PANEL, RH
main76911-44010-A0i199609-199708
SILVER ME.,056 ,199 ,3J8 ,6N5 ,6P4 ,8K4 ,8K5 ,934
sub76911-44010
main76911-44010-A0i199708-199804
SILVER ME.,199 ,8K4 ,8K5 ,934
sub76911-44010
main76911-44010-A0i199804-200004
SILVER ME.,TRIM1#&056 ,199 ,8K5 ,8N2
sub76911-44010
main76911-44010-A3i200004-200105
SILVER ME,056 ,199 ,8K5
sub76911-44010
main76911-44010-C1i200008-200103
2 SEAT SPEC(DENMARK),BLACK,202
sub76911-44010
main76911-44010-G0i199804-200004
YELLOW SILVER,TRIM1#&3J8 ,4L9 ,760
sub76911-44010
main76911-44010-G0i199804-200004
YELLOW SILVER,TRIM12&3J8 ,4L9 ,760
sub76911-44010
main76911-44010-G0i199609-199708
YELLOW SILVER,3J8
sub76911-44010
main76911-44010-G0i199708-199804
YELLOW SILVER,056 ,3J8 ,6N5 ,6P4
sub76911-44010
main76911-44010-G1i199804-200105
DK.GREEN M.M.,6P3
sub76911-44010
main76911-44010-G2i200004-200105
YELLOW SILVER,3J8 ,4L9 ,760
sub76911-44010
main76911-44010-J2i200010-200102
SPECIAL EDITION 2(EUROPE),DK.BLUE MM.GR.,8K5
sub76911-44010
76912CMUDGUARD, FENDER PANEL, LH
main76912-44010-A0i199804-200004
SILVER ME.,TRIM1#&056 ,199 ,8K5 ,8N2
sub76912-44010
main76912-44010-A0i199609-199708
SILVER ME.,056 ,199 ,3J8 ,6N5 ,6P4 ,8K4 ,8K5 ,934
sub76912-44010
main76912-44010-A0i199708-199804
SILVER ME.,199 ,8K4 ,8K5 ,934
sub76912-44010
main76912-44010-A3i200004-200105
SILVER ME,056 ,199 ,8K5
sub76912-44010
main76912-44010-C1i200008-200103
2 SEAT SPEC(DENMARK),BLACK,202
sub76912-44010
main76912-44010-G0i199708-199804
YELLOW SILVER,056 ,3J8 ,6N5 ,6P4
sub76912-44010
main76912-44010-G0i199609-199708
YELLOW SILVER,3J8
sub76912-44010
main76912-44010-G0i199804-200004
YELLOW SILVER,3J8 ,4L9 ,760
sub76912-44010
main76912-44010-G1i199804-200105
DK.GREEN M.M.,6P3
sub76912-44010
main76912-44010-G2i200004-200105
YELLOW SILVER,3J8 ,4L9 ,760
sub76912-44010
main76912-44010-J2i200010-200102
SPECIAL EDITION 2(EUROPE),DK.BLUE MM.GR.,8K5
sub76912-44010
76913MUDGUARD, FRONT DOOR, RH
main76913-44900-A0i199804-200004
SILVER ME.,TRIM1#&056 ,199 ,8K5 ,8N2
sub76913-44900
sub76913-44902
sub76913-44906
main76913-44900-A0i199609-199708
SILVER ME.,056 ,199 ,3J8 ,6N5 ,6P4 ,8K4 ,8K5 ,934
sub76913-44900
sub76913-44902
sub76913-44906
main76913-44900-A0i199708-199804
SILVER ME.,199 ,8K4 ,8K5 ,934
sub76913-44900
sub76913-44902
sub76913-44906
main76913-44900-A4i200004-200105
SILVER ME,056 ,199 ,8K5
sub76913-44900
sub76913-44902
sub76913-44906
main76913-44900-C0i200008-200103
2 SEAT SPEC(DENMARK),BLACK,202
sub76913-44900
sub76913-44902
sub76913-44906
main76913-44900-G0i199804-200004
YELLOW SILVER,TRIM1#&3J8 ,4L9 ,760
sub76913-44900
sub76913-44902
sub76913-44906
main76913-44900-G0i199609-199708
YELLOW SILVER,3J8
sub76913-44900
sub76913-44902
sub76913-44906
main76913-44900-G0i199708-199804
YELLOW SILVER,056 ,3J8 ,6N5 ,6P4
sub76913-44900
sub76913-44902
sub76913-44906
main76913-44900-G1i199804-200105
DK. GREEN M.M.,6P3
sub76913-44900
sub76913-44902
sub76913-44906
main76913-44900-G2i200004-200105
YELLOW SILVER,TRIM1#&3J8 ,4L9 ,760
sub76913-44900
sub76913-44902
sub76913-44906
main76913-44900-J1i200010-200102
SPECIAL EDITION 2(EUROPE),DK.BLUE MM.GR.,8K5
sub76913-44900
sub76913-44902
sub76913-44906
76914MUDGUARD, FRONT DOOR, LH
main76914-44900-A0i199708-199804
SILVER ME.,199 ,8K4 ,8K5 ,934
sub76914-44900
sub76914-44902
main76914-44900-A0i199609-199708
SILVER ME.,056 ,199 ,3J8 ,6N5 ,6P4 ,8K4 ,8K5 ,934
sub76914-44900
sub76914-44902
main76914-44900-A0i199804-200004
SILVER ME.,TRIM1#&056 ,199 ,8K5 ,8N2
sub76914-44900
sub76914-44902
main76914-44900-A4i200004-200105
SILVER ME,056 ,199 ,8K5
sub76914-44900
sub76914-44902
main76914-44900-C0i200008-200103
2 SEAT SPEC(DENMARK),BLACK,202
sub76914-44900
sub76914-44902
main76914-44900-G0i199708-199804
YELLOW SILVER,056 ,3J8 ,6N5 ,6P4
sub76914-44900
sub76914-44902
main76914-44900-G0i199804-200004
YELLOW SILVER,TRIM1#&3J8 ,4L9 ,760
sub76914-44900
sub76914-44902
main76914-44900-G0i199609-199708
YELLOW SILVER,3J8
sub76914-44900
sub76914-44902
main76914-44900-G1i199804-200105
DK. GREEN M.M.,6P3
sub76914-44900
sub76914-44902
main76914-44900-G2i200004-200105
YELLOW SILVER,3J8 ,4L9 ,760
sub76914-44900
sub76914-44902
main76914-44900-J1i200010-200102
SPECIAL EDITION 2(EUROPE),DK.BLUE MM.GR.,8K5
sub76914-44900
sub76914-44902
76915MUDGUARD, REAR DOOR, RH
main76915-44900-A0i199804-200004
SILVER ME.,TRIM1#&056 ,199 ,8K5 ,8N2
sub76915-44900
sub76915-44902
sub76915-44904
main76915-44900-A0i199708-199804
SILVER ME.,199 ,8K4 ,8K5 ,934
sub76915-44900
sub76915-44902
sub76915-44904
main76915-44900-A0i199609-199708
SILVER ME.,056 ,199 ,3J8 ,6N5 ,6P4 ,8K4 ,8K5 ,934
sub76915-44900
sub76915-44902
sub76915-44904
main76915-44900-A4i200004-200105
SILVER ME,056 ,199 ,8K5
sub76915-44900
sub76915-44902
sub76915-44904
main76915-44900-C0i200008-200103
2 SEAT SPEC(DENMARK),BLACK,202
sub76915-44900
sub76915-44902
sub76915-44904
main76915-44900-G0i199609-199708
YELLOW SILVER,3J8
sub76915-44900
sub76915-44902
sub76915-44904
main76915-44900-G0i199804-200004
YELLOW SILVER,TRIM1#&3J8 ,4L9 ,760
sub76915-44900
sub76915-44902
sub76915-44904
main76915-44900-G0i199708-199804
YELLOW SILVER,056 ,3J8 ,6N5 ,6P4
sub76915-44900
sub76915-44902
sub76915-44904
main76915-44900-G1i199804-200105
DK. GREEN M.M.,6P3
sub76915-44900
sub76915-44902
sub76915-44904
main76915-44900-G2i200004-200105
YELLOW SILVER,3J8 ,4L9 ,760
sub76915-44900
sub76915-44902
sub76915-44904
main76915-44900-J1i200010-200102
SPECIAL EDITION 2(EUROPE),DK.BLUE MM.GR.,8K5
sub76915-44900
sub76915-44902
sub76915-44904
76916BMUDGUARD, REAR DOOR, LH
main76916-44900-A0i199609-199708
SILVER ME.,056 ,199 ,3J8 ,6N5 ,6P4 ,8K4 ,8K5 ,934
sub76916-44900
sub76916-44902
sub76916-44904
main76916-44900-A0i199708-199804
SILVER ME.,199 ,8K4 ,8K5 ,934
sub76916-44900
sub76916-44902
sub76916-44904
main76916-44900-A0i199804-200004
SILVER ME.,TRIM1#&056 ,199 ,8K5 ,8N2
sub76916-44900
sub76916-44902
sub76916-44904
main76916-44900-A4i200004-200105
SILVER ME,056 ,199 ,8K5
sub76916-44900
sub76916-44902
sub76916-44904
main76916-44900-C0i200008-200103
2 SEAT SPEC(DENMARK),BLACK,202
sub76916-44900
sub76916-44902
sub76916-44904
main76916-44900-G0i199609-199708
YELLOW SILVER,3J8
sub76916-44900
sub76916-44902
sub76916-44904
main76916-44900-G0i199708-199804
YELLOW SILVER,056 ,3J8 ,6N5 ,6P4
sub76916-44900
sub76916-44902
sub76916-44904
main76916-44900-G0i199804-200004
YELLOW SILVER,TRIM1#&3J8 ,4L9 ,760
sub76916-44900
sub76916-44902
sub76916-44904
main76916-44900-G1i199804-200105
DK. GREEN M.M.,6P3
sub76916-44900
sub76916-44902
sub76916-44904
main76916-44900-G2i200004-200105
YELLOW SILVER,3J8 ,4L9 ,760
sub76916-44900
sub76916-44902
sub76916-44904
main76916-44900-J1i200010-200102
SPECIAL EDITION 2(EUROPE),DK.BLUE MM.GR.,8K5
sub76916-44900
sub76916-44902
sub76916-44904
76917BMUDGUARD, QUARTER PANEL, RH
main76917-44010-A0i199609-199708
SILVER ME.,056 ,199 ,3J8 ,6N5 ,6P4 ,8K4 ,8K5 ,934
sub76917-44010
sub76917-44901
main76917-44010-A0i199804-200004
SILVER ME.,056 ,199 ,8K5 ,8N2
sub76917-44010
sub76917-44901
main76917-44010-A0i199708-199804
SILVER ME.,199 ,8K4 ,8K5 ,934
sub76917-44010
sub76917-44901
main76917-44010-A3i200004-200105
SILVER ME,056 ,199 ,8K5
sub76917-44010
sub76917-44901
main76917-44010-C1i200008-200103
2 SEAT SPEC(DENMARK),BLACK,202
sub76917-44010
sub76917-44901
main76917-44010-G0i199804-200004
YELLOW SILVER,3J8 ,4L9 ,760
sub76917-44010
sub76917-44901
main76917-44010-G0i199708-199804
YELLOW SILVER,056 ,3J8 ,6N5 ,6P4
sub76917-44010
sub76917-44901
main76917-44010-G0i199609-199708
YELLOW SILVER,3J8
sub76917-44010
sub76917-44901
main76917-44010-G1i199804-200105
DK.GREEN M.M.,6P3
sub76917-44010
sub76917-44901
main76917-44010-G2i200004-200105
YELLOW SILVER,3J8 ,4L9 ,760
sub76917-44010
sub76917-44901
main76917-44010-J2i200010-200102
SPECIAL EDITION 2(EUROPE),DK.BLUE MM.GR.,8K5
sub76917-44010
sub76917-44901
76917CCLIP, QUARTER PANEL MUDGUARD
main90467-07076-B1i199609-199804
GRAY,056 ,199 ,3J8 ,6N5 ,6P4 ,8K4 ,8K5 ,934
sub90467-07041
sub90467-07076
sub90467-A0016
main90467-07076-B1i199804-200004
GRAY,056 ,199 ,3J8 ,4L9 ,760 ,8K5 ,8N2
sub90467-07041
sub90467-07076
sub90467-A0016
main90467-07076-B1i200004-200105
GRAY,056 ,199 ,3J8 ,4L9 ,760 ,8K5
sub90467-07041
sub90467-07076
sub90467-A0016
76918BMUDGUARD, QUARTER PANEL, LH
main76918-44010-A0i199708-199804
SILVER ME.,199 ,8K4 ,8K5 ,934
sub76918-44010
sub76918-44901
main76918-44010-A0i199609-199708
SILVER ME.,056 ,199 ,3J8 ,6N5 ,6P4 ,8K4 ,8K5 ,934
sub76918-44010
sub76918-44901
main76918-44010-A0i199804-200004
SILVER ME.,056 ,199 ,8K5 ,8N2
sub76918-44010
sub76918-44901
main76918-44010-A3i200004-200105
SILVER ME,056 ,199 ,8K5
sub76918-44010
sub76918-44901
main76918-44010-C1i200008-200103
2 SEAT SPEC(DENMARK),BLACK,202
sub76918-44010
sub76918-44901
main76918-44010-G0i199708-199804
YELLOW SILVER,056 ,3J8 ,6N5 ,6P4
sub76918-44010
sub76918-44901
main76918-44010-G0i199804-200004
YELLOW SILVER,3J8 ,4L9 ,760
sub76918-44010
sub76918-44901
main76918-44010-G0i199609-199708
YELLOW SILVER,3J8
sub76918-44010
sub76918-44901
main76918-44010-G1i199804-200105
DK.GREEN M.M.,6P3
sub76918-44010
sub76918-44901
main76918-44010-G2i200004-200105
YELLOW SILVER,3J8 ,4L9 ,760
sub76918-44010
sub76918-44901
main76918-44010-J2i200010-200102
SPECIAL EDITION 2(EUROPE),DK.BLUE MM.GR.,8K5
sub76918-44010
sub76918-44901
76921BPROTECTOR, SIDE MUDGUARD, NO.1
main76921-44010i199609
76922DPROTECTOR, SIDE MUDGUARD, NO.2
main76922-44010i199609
sub76921-44010
9016850057
main90168-50057
9017905096
main90179-05096
9018904014
main90189-04014
9018904176
main90189-04176
9046711063
main90467-11063

19 parts on this diagram · 1 diagram in section
