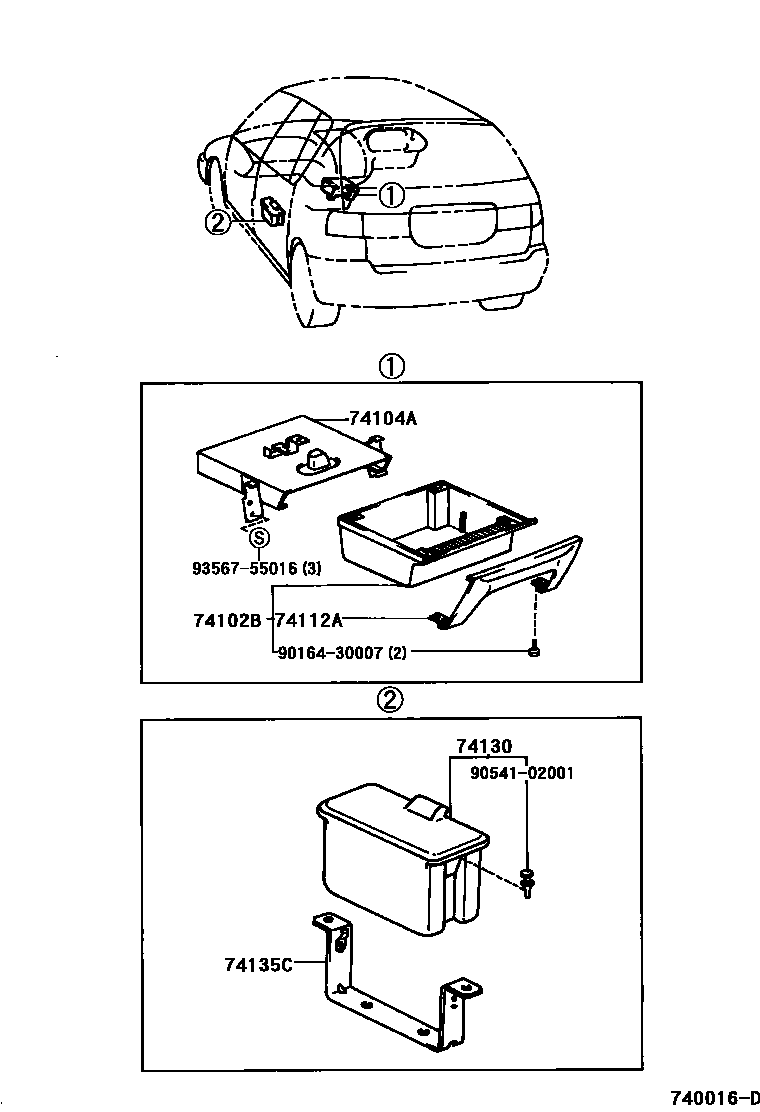

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-44010-B0iCXM10,SXM10199609-200105

MD.MOON MIST,TRIM1#

sub74102-44010

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-44010iCXM10,SXM10..RHD199609

main74104-44020iCXM10,SXM10..LHD199609

74112ADOOR, FRONT ASH RECEPTACLE

main74112-44010-B0iCXM10,SXM10199609-200105

MD.MOON MIST,TRIM1#

sub74112-44010

74130RECEPTACLE ASSY, REAR ASH

main74130-44010-B0iCXM10,SXM10199609-200105

MEDIUM MOON MIST,TRIM1#

74135CRETAINER, ASH RECEPTACLE

main74135-44010iCXM10,SXM10199609

9016430007

main90164-30007

9054102001

main90541-02001

9356755016

main93567-55016

8 parts on this diagram · 1 diagram in section
