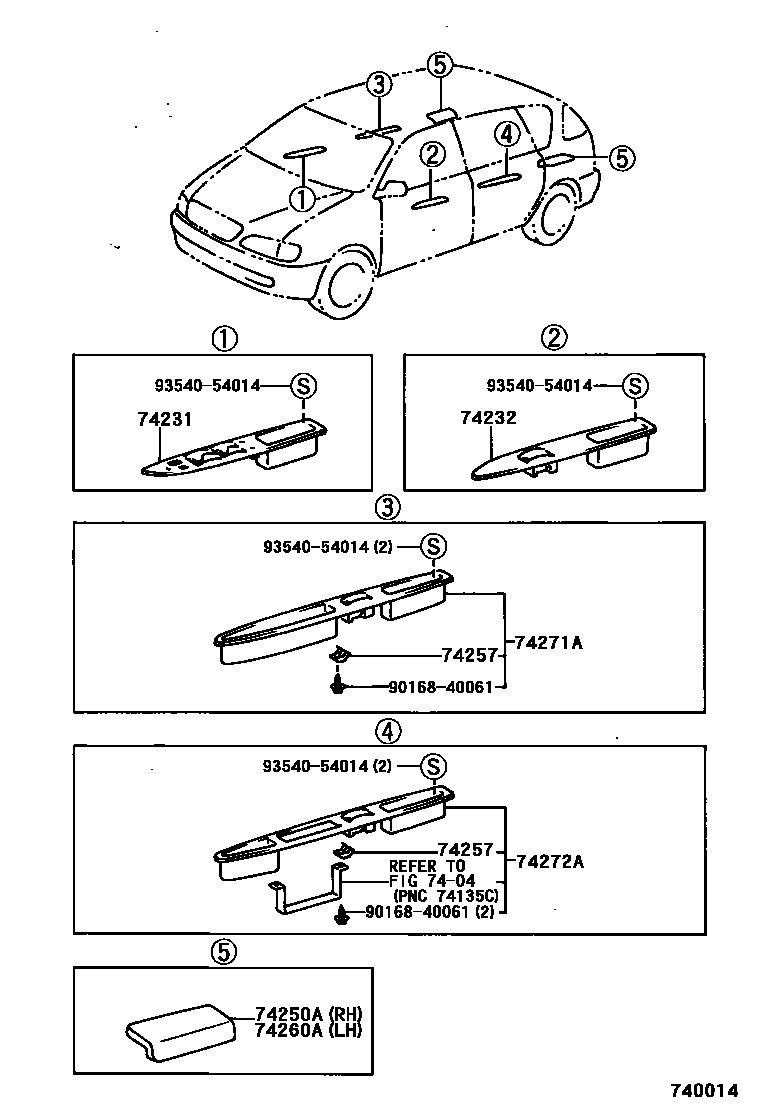

ARMREST & VISOR

0001 1 0002 1

7404

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-44010-B0iCXM10,SXM10..RHD199609-200105

MD.MOON MIST,TRIM1#

main74231-44020-B0iCXM10,SXM10..LHD199609-200105

MD.MOON MIST,TRIM1#

main74231-44030-B0iCXM10,SXM10..RHD199708-200105

W(TWIN MOON ROOF),MD.MOON MIST,TRIM1#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-44010-B0iCXM10,SXM10..RHD199609-200105

MD.MOON MIST,TRIM1#

main74232-44020-B0iCXM10,SXM10..LHD199609-200105

MD.MOON MIST,TRIM1#

main74232-44030-B0iCXM10,SXM10..LHD199708-200105

W(TWIN MOON ROOF),MD.MOON MIST,TRIM1#

74250AARMREST ASSY, QUARTER, RH

main74250-44010-B0iCXM10,SXM10199609-199804

MOON MIST,TRIM1#

main74250-44011-B1iCXM10,SXM10199804-200105

MD.MOON MIST,TRIM1#

main74250-44160-B0iCXM10,SXM10..LHD..MTM200010-200102

SPECIAL EDITION 2(EUROPE),GRAY,TRIM12

74257SPRING, ARMREST, NO.1

main74257-44010×2iCXM10,SXM10199609

74260AARMREST ASSY, QUARTER, LH

main74260-44010-B0iCXM10,SXM10199609-199804

MOON MIST,TRIM1#

main74260-44011-B1iCXM10,SXM10199804-200105

MD.MOON MIST,TRIM1#

main74260-44110-B0iCXM10,SXM10..LHD..MTM200010-200102

SPECIAL EDITION 2(EUROPE),GRAY,TRIM12

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-44010-B0iCXM10,SXM10199609-200105

MD.MOON MIST,TRIM1#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-44010-B0iCXM10,SXM10199609-200105

MD.MOON MIST,TRIM1#

9016840061

main90168-40061

9354054014

main93540-54014

10 parts on this diagram · 2 diagrams in section
