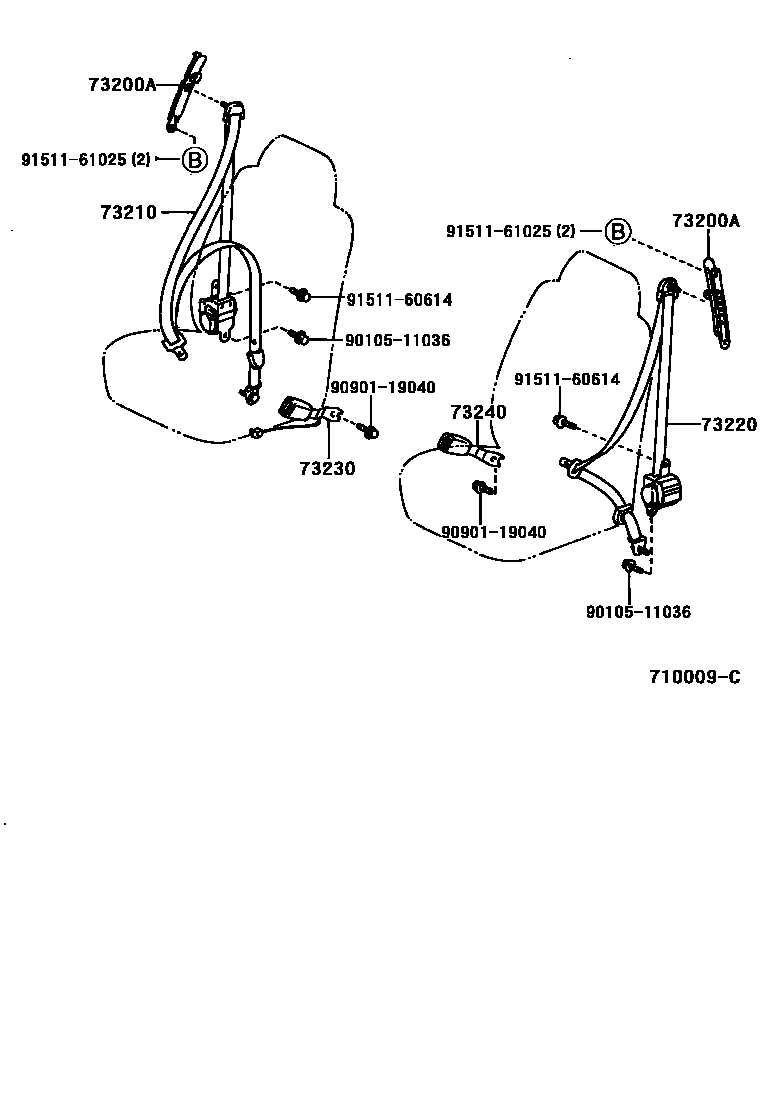

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR NO.1 SEAT 0003 1REAR NO.2 SEAT

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-20031-B3iCXM10,SXM10199609-199804

MOON MIST,TRIM1#

sub73200-20031

main73200-20031-B5iCXM10,SXM10199804-200105

LT.BLUISH GRAY,TRIM1#

sub73200-20031

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-44020-B0iSXM10199609-199708

BLUISH GRAY,TRIM1#

main73210-44040-B0iCXM10,SXM10199708-199804

BLUISH GRAY,TRIM1#

main73210-44080-B1iCXM10,SXM10199804-199904

BLUISH GRAY,TRIM1#

sub73210-44081

main73210-44081-B1iCXM10,SXM10199904-200105

BLUISH GRAY,TRIM1#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-44020-B0iSXM10199609-199708

BLUISH GRAY,TRIM1#

main73220-44040-B0iCXM10,SXM10199708-199804

BLUISH GRAY,TRIM1#

main73220-44080-B1iCXM10,SXM10199804-199904

BLUISH GRAY,TRIM1#

sub73220-44081

main73220-44081-B1iCXM10,SXM10199904-200105

BLUISH GRAY,TRIM1#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-44020-B0iCXM10,SXM10199609-200105

MD.MOON MIST,TRIM1#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-44020-B0iCXM10,SXM10199609-200105

MD.MOON MIST,TRIM1#

9010511036

main90105-11036

9090119040

main90901-19040

9151160614

main91511-60614

9151161025

main91511-61025

9 parts on this diagram · 3 diagrams in section
