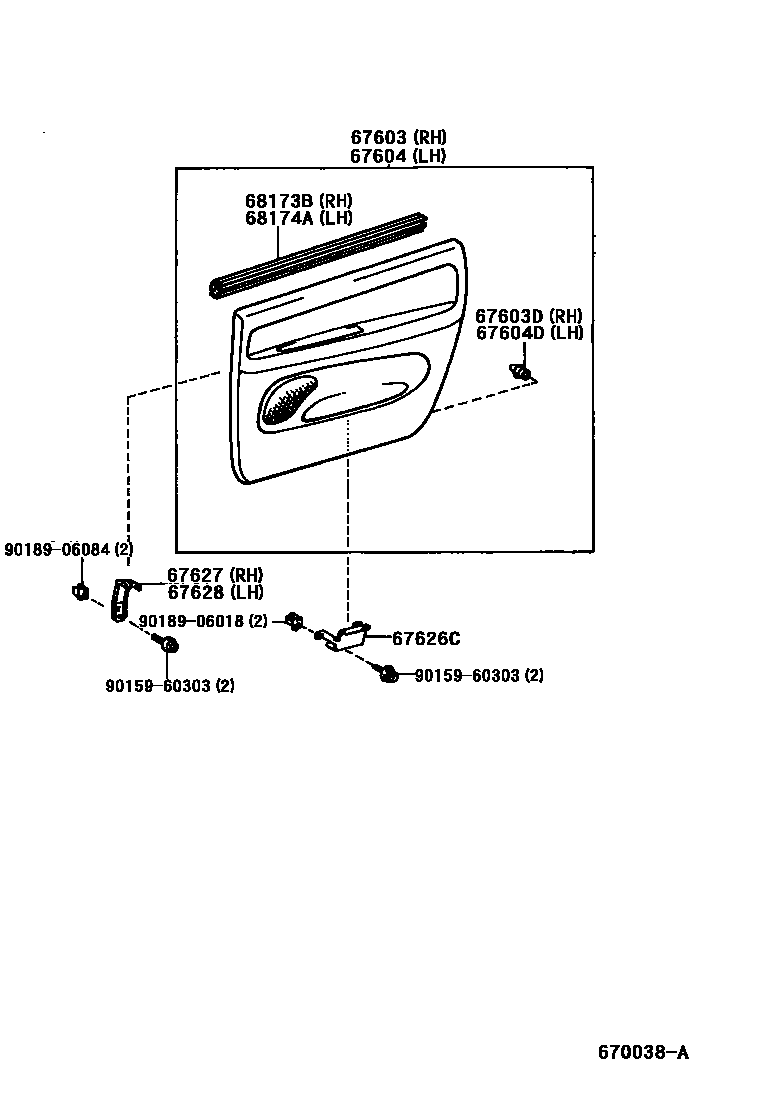

REAR DOOR PANEL & GLASS

0001 1 0002 1

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-44010-B0iCXM10,SXM10199609-199804

MOON MIST,TRIM1#

main67630-44011-B1iCXM10,SXM10199804-200105

MEDIUM MOON MIST,TRIM1#

main67630-44150-B0iCXM10..06S;CXM10..LHD..07S;SXM10..LHD..MTM;SXM10..RHD..06S..ATM199908-200001

SPECIAL EDITION FOR EUROPE,GRAY,TRIM12

main67630-44150-B0iCXM10,SXM10..LHD..MTM200010-200102

SPECIAL EDITION 2(EUROPE),GRAY,TRIM12

67603DRETAINER, REAR DOOR TRIM, RH

main67771-12050iCXM10,SXM10¥160199609-199712

main67771-28020iCXM10,SXM10¥220199712-199810

main90467-09208iCXM10,SXM10¥130199810-200010

sub67771-28020¥220

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-44010-B0iCXM10,SXM10199609-199804

MOON MIST,TRIM1#

main67640-44011-B1iCXM10,SXM10199804-200105

MEDIUM MOON MIST,TRIM1#

main67640-44150-B0iCXM10..06S;CXM10..LHD..07S;SXM10..LHD..MTM;SXM10..RHD..06S..ATM199908-200001

SPECIAL EDITION FOR EUROPE,GRAY,TRIM12

main67640-44150-B0iCXM10,SXM10..LHD..MTM200010-200102

SPECIAL EDITION 2(EUROPE),GRAY,TRIM12

67604DRETAINER, REAR DOOR TRIM, LH

main67771-12050iCXM10,SXM10¥160199609-199712

main67771-28020iCXM10,SXM10¥220199712-199810

main90467-09208iCXM10,SXM10¥130199810-200010

sub67771-28020¥220

67626CBRACKET, REAR DOOR TRIM, NO.2

main67625-44010iCXM10,SXM10¥1,430199609

67627BRACKET, REAR DOOR TRIM, RH

main67643-44010iCXM10,SXM10¥720199609

67628BRACKET, REAR DOOR TRIM, LH

main67644-44010iCXM10,SXM10¥720199609

68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH

main68173-44010iCXM10,SXM10¥5,300199609

68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH

main68174-44010iCXM10,SXM10¥5,300199609

9015960303

main90159-60303¥70

9018906018

main90189-06018¥80

9018906084

main90189-06084¥90

12 parts on this diagram · 2 diagrams in section
