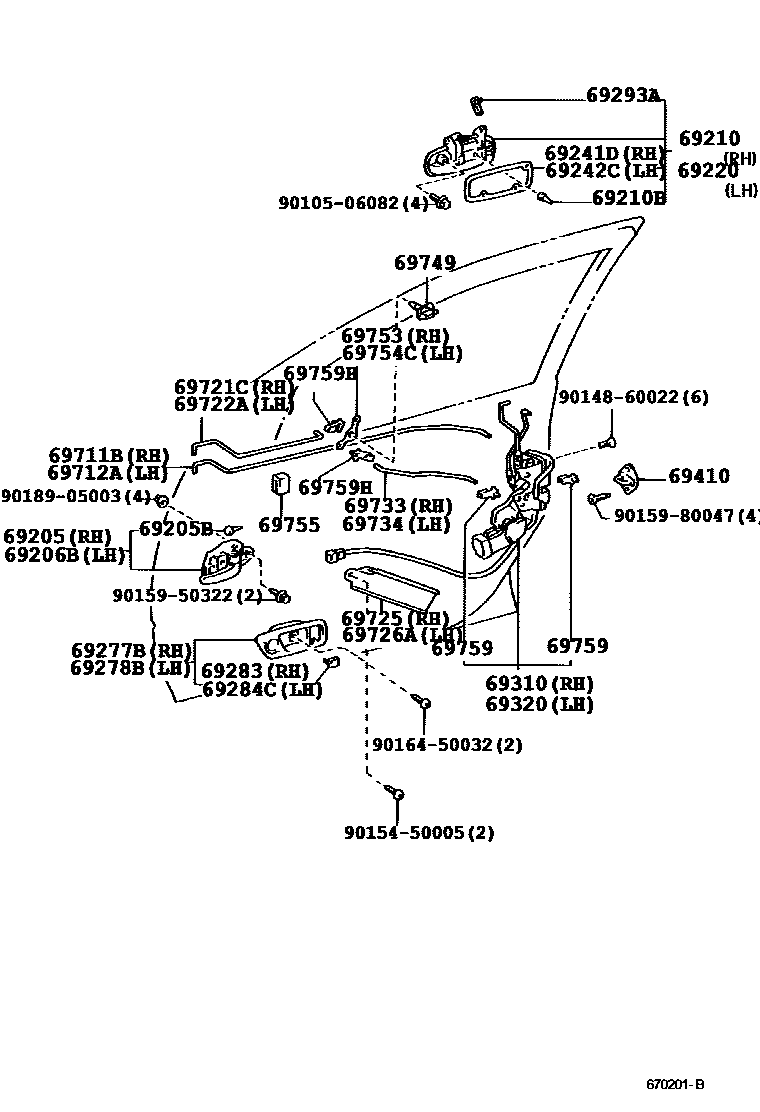

FRONT DOOR LOCK & HANDLE

0001 1 0002 1

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-30120-B3iCXM10,SXM10199609-199804

MD.MOON MIST,TRIM1#

main69205-44010-B1iCXM10,SXM10199804-200105

MD.MOON MIST,TRIM1#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04014×2iCXM10,SXM10199609

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-30120-B3iCXM10,SXM10199609-199804

MD.MOON MIST,TRIM1#

main69206-44010-B1iCXM10,SXM10199804-200105

MD.MOON MIST,TRIM1#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-12200-A1iCXM10,SXM10199609-199804

WHITE,056

main69210-12200-B3iCXM10,SXM10199609-199804

SILVER ME,199

main69210-12200-D1iCXM10,SXM10199609-199804

WINE RED MC,3J8

main69210-12200-G3iCXM10,SXM10199609-199804

DK.GREEN M.M.,6N5

main69210-12200-G4iCXM10,SXM10199609-199804

GREEN ME.OP.,6P4

main69210-12200-J3iCXM10,SXM10199609-199804

BRIGHT BLUE ME.,8K4

main69210-12200-J4iCXM10,SXM10199609-199804

DK.BLUE MM.GR.,8K5

main69210-12200-K0iCXM10,SXM10199609-199804

PURPLE M.M.OP.GR.,934

main69210-12290-A2iCXM10,SXM10199804-199806

WHITE,056

main69210-12290-B3iCXM10,SXM10199804-199806

SILVER ME,199

main69210-12290-D3iCXM10,SXM10199804-199806

WINE RED MC,3J8

main69210-12290-E1iCXM10,SXM10199804-199806

GOLD ME,4L9

main69210-12290-G4iCXM10,SXM10199804-199806

DK.GREEN M.M.,6P3

main69210-12290-H1iCXM10,SXM10199804-199806

DK.TURQUOISE MC.,760

main69210-12290-J5iCXM10,SXM10199804-199806

DK.BLUE MM.GR.,8K5

main69210-12290-J6iCXM10,SXM10199804-199806

BLUE ME.AMC.,8N2

main69210-44020-A0iCXM10,SXM10199806-200105

WHITE,056

main69210-44020-B0iCXM10,SXM10199806-200105

SILVER ME,199

main69210-44020-C0iCXM10,SXM10..LHD..06S..MTM199912-199912

BODY COLOR BLACK(DENMARK),BLACK,202

main69210-44020-D0iCXM10,SXM10199806-200105

WINE RED MC,3J8

main69210-44020-E0iCXM10,SXM10199806-200105

GOLD ME,4L9

main69210-44020-G0iCXM10,SXM10199806-200105

DK.GREEN M.M.,6P3

main69210-44020-H0iCXM10,SXM10199806-200105

DK.TURQUOISE MC.,760

main69210-44020-J0iCXM10,SXM10199806-200105

DK.BLUE MM.GR.,8K5

main69210-44020-J1iCXM10,SXM10199806-200004

BLUE ME.AMC.,8N2

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-04018×4iCXM10,SXM10199609

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-12190-A1iCXM10,SXM10199609-199804

WHITE,056

main69220-12190-B3iCXM10,SXM10199609-199804

SILVER ME,199

main69220-12190-D1iCXM10,SXM10199609-199804

WINE RED MC,3J8

main69220-12190-G3iCXM10,SXM10199609-199804

DK.GREEN M.M.,6N5

main69220-12190-G4iCXM10,SXM10199609-199804

GREEN ME.OP.,6P4

main69220-12190-J3iCXM10,SXM10199609-199804

BRIGHT BLUE ME.,8K4

main69220-12190-J4iCXM10,SXM10199609-199804

DK.BLUE MM.GR.,8K5

main69220-12190-K0iCXM10,SXM10199609-199804

PURPLE M.M.OP.GR.,934

main69220-12290-A2iCXM10,SXM10199804-199806

WHITE,056

main69220-12290-B3iCXM10,SXM10199804-199806

SILVER ME,199

main69220-12290-D3iCXM10,SXM10199804-199806

WINE RED MC,3J8

main69220-12290-E1iCXM10,SXM10199804-199806

GOLD ME,4L9

main69220-12290-G4iCXM10,SXM10199804-199806

DK.GREEN M.M.,6P3

main69220-12290-H1iCXM10,SXM10199804-199806

DK.TURQUOISE MC.,760

main69220-12290-J5iCXM10,SXM10199804-199806

DK.BLUE MM.GR.,8K5

main69220-12290-J6iCXM10,SXM10199804-199806

BLUE ME.AMC.,8N2

main69220-44020-A0iCXM10,SXM10199806-200105

WHITE,056

main69220-44020-B0iCXM10,SXM10199806-200105

SILVER ME,199

main69220-44020-C0iCXM10,SXM10..LHD..06S..MTM199912-199912

BODY COLOR BLACK(DENMARK),BLACK,202

main69220-44020-D0iCXM10,SXM10199806-200105

WINE RED MC,3J8

main69220-44020-E0iCXM10,SXM10199806-200105

GOLD ME,4L9

main69220-44020-G0iCXM10,SXM10199806-200105

DK.GREEN M.M.,6P3

main69220-44020-H0iCXM10,SXM10199806-200105

DK.TURQUOISE MC.,760

main69220-44020-J0iCXM10,SXM10199806-200105

DK.BLUE MM.GR.,8K5

main69220-44020-J1iCXM10,SXM10199806-200004

BLUE ME.AMC.,8N2

69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH

main69241-12100iCXM10,SXM10199609

69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH

main69242-12050iCXM10,SXM10199609

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-30150-B2iCXM10,SXM10199609-200105

MD.MOON MIST,TRIM1#

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-30080-B2iCXM10,SXM10199609-200105

MD.MOON MIST,TRIM1#

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-30040-B2iCXM10,SXM10199609-200105

MD.MOON MIST,TRIM1#

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69284-30040-B2iCXM10,SXM10199609-200105

MD.MOON MIST,TRIM1#

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iCXM10,SXM10199609

RH

main69293-12040iCXM10,SXM10199609

LH

69310LOCK ASSY, FRONT DOOR, RH

main69030-44020iCXM10,SXM10..RHD199609-199804

sub69310-44010

sub69110-44010

sub69391-44010

sub90159-40202

main69030-44030iCXM10,SXM10..LHD199609-199804

sub69310-44020

sub69110-44010

sub69391-44010

sub90159-40202

main69030-44040iCXM10,SXM10..RHD199804

main69030-44050iCXM10,SXM10..LHD199804

69320LOCK ASSY, FRONT DOOR, LH

main69040-44020iCXM10,SXM10..RHD199609-199804

sub69320-44010

sub69120-44010

sub69392-44010

sub90159-40202

main69040-44030iCXM10,SXM10..LHD199609-199804

sub69320-44020

sub69120-44010

sub69392-44010

sub90159-40202

main69040-44040iCXM10,SXM10..RHD199804

main69040-44050iCXM10,SXM10..LHD199804

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20110×2iCXM10,SXM10199804

main69410-87001×2iCXM10,SXM10199609-199804

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-44010iCXM10,SXM10199609-199804

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-44010iCXM10,SXM10199609-199804

69721CLINK, FRONT DOOR INSIDE LOCKING, NO.3 RH

main69721-44010iCXM10,SXM10199609-199804

69722ALINK, FRONT DOOR INSIDE LOCKING, NO.3 LH

main69722-44010iCXM10,SXM10199609-199804

69725PROTECTOR, FRONT DOOR INSIDE LOCKING LINK, RH

main69725-44010iCXM10,SXM10199609-199804

69726APROTECTER, FRONT DOOR INSIDE LOCKING LINK, LH

main69726-44010iCXM10,SXM10199609-199804

69733LINK, FRONT DOOR INSIDE LOCKING, RH

main69733-44010iCXM10,SXM10199609-199804

69734LINK, FRONT DOOR INSIDE LOCKING, LH

main69734-44010iCXM10,SXM10199609-199804

69749CLAMP, FRONT DOOR LOCK LINK

main69749-30050×2iCXM10,SXM10199804

main69749-32030×2iCXM10,SXM10199609-199804

69753BELLCRANK, DOOR LOCK CONTROL, RH

main69753-20070iCXM10,SXM10199609-199804

69754CBELLCRANK, DOOR LOCK CONTROL, LH

main69753-20070iCXM10,SXM10199609-199804

69755SILENCER, FRONT DOOR LOCK LINK

main69759-20390×2iCXM10,SXM10199609-199804

main69759-44030×2iCXM10,SXM10199804

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-24010iSXM10199609-199612

WHITE

main69759-24020iSXM10199609-199612

BLUE

main69759-24050×2iSXM10199609-199701

GREEN

main69759-24060iCXM10,SXM10199701-199804

GRAY

main69759-24080iCXM10,SXM10199612-199804

YELLOW

main69759-24090iCXM10,SXM10199612-199804

BROWN

69759HSNAP, DOOR LOCK CONTROL LINK, NO.2

main69759-20380×2iCXM10,SXM10199609-199804

BLACK

main69759-24030×2iCXM10,SXM10199609-199804

RED

9010506082

main90105-06082

9014860022

main90148-60022

9015450005

main90154-50005

9015950322

main90159-50322

9015980047

main90159-80047

9016450032

main90164-50032

9018905003

main90189-05003

37 parts on this diagram · 2 diagrams in section
