FLOOR SIDE MEMBER
51681BPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH
51682APLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH
53704DSUPPORT SUB-ASSY, BATTERY, LH
55137BRACE, DASH TO FRAME, RH
55138BRACE, DASH TO FRAME, LH
57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH
57075ABRACKET SUB-ASSY, REAR SUSPENSION ARM, RH
57076ABRACKET SUB-ASSY, REAR SUSPENSION ARM, LH
57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH
57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH
57111MEMBER, FRONT SIDE, RH
57112MEMBER, FRONT SIDE, LH
57113EXTENSION, FRONT SIDE MEMBER, RH
57114EXTENSION, FRONT SIDE MEMBER, LH
57115APLATE, FRONT SIDE MEMBER, OUTER RH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
57118BPLATE, FRONT SIDE MEMBER, NO.2 LH
57135ABRACKET, FRONT FLOOR SIDE, RH
57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH
57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH
57154REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH
57157AREINFORCEMENT, FRONT SIDE MEMBER, NO.4 RH
57158REINFORCEMENT, FRONT SIDE MEMBER, NO.4 LH
57181CREINFORCEMENT, FRONT SIDE MEMBER, REAR NO.1 RH
57182CREINFORCEMENT, FRONT SIDE MEMBER, REAR NO.1 LH
57188REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH
57189REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, LH
57191AMEMBER, FRONT SIDE, INNER REAR RH
57192AMEMBER, FRONT SIDE, INNER REAR LH
57197BOX, TORQUE, FRONT RH
57198BOX, TORQUE, FRONT LH
57247RETAINER, FRONT BUMPER SUPPORT SPACER, NO.1
57248BRACKET, FLEXIBLE HOSE, NO.2
57248ARETAINER, FRONT BUMPER SUPPORT SPACER, NO.1
57249BRACKET, FLEXIBLE HOSE, NO.1
57271EXTENSION, STEERING GEAR BOX SUPPORT MEMBER, RH
57272EXTENSION, STEERING GEAR BOX SUPORT MEMBER, LH
57411AMEMBER, FLOOR SIDE, INNER RH
57412AMEMBER, FLOOR SIDE, INNER LH
57413AMEMBER, FLOOR SIDE, INNER REAR RH
57414AMEMBER, FLOOR SIDE, INNER REAR LH
57417REINFORCEMENT, FRONT FLOOR UNDER, RH
57418REINFORCEMENT, FRONT FLOOR UNDER, LH
57431APATCH, STEP PANEL UNDER, RH
57432PATCH, STEP PANEL UNDER, LH
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57611AMEMBER, REAR FLOOR SIDE, RH
57612AMEMBER, REAR FLOOR SIDE, LH
57635REINFORCEMENT, REAR FLOOR SIDE MEMBER
57636AREINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR LH
57645CREINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR NO.3 RH
57646BREINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR NO.3 LH
57653AMEMBER, REAR FLOOR CROSS, NO.2
57654CMEMBER, REAR FLOOR CROSS, NO.3
57655AMEMBER, REAR FLOOR CROSS, NO.4
57656EMEMBER, REAR FLOOR CROSS, NO.5
57686ABRACKET, FUEL TANK MOUNTING, REAR RH
57687ABRACKET, FUEL TANK MOUNTING, REAR LH
57707APLATE SUB-ASSY, REAR SPRING, RH
57708APLATE SUB-ASSY, REAR SPRING, LH
57713ASTOPPER, REAR SPRING BUMPER, NO.1 RH
57714STOPPER, REAR SPRING BUMPER, NO.1 LH
57735REINFORCEMENT, REAR TORQUE BOX, RH
57736REINFORCEMENT, REAR TORQUE BOX, LH
57793BRACKET, REAR SUSPENSION ARM, REAR RH NO.1
57794BRACKET, REAR SUSPENSION ARM, REAR LH NO.1
57801AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, RH
57802AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, LH
57836REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.2
57841REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT RH
57845REINFORCEMENT, REAR NO.2 SEAT LEG, REAR RH
58265DBRACKET, PARKING BRAKE CABLE GUIDE, NO.2
58341DBRACKET, REAR ABSORBER MOUNTING, NO.1 RH
58342DBRACKET, REAR ABSORBER MOUNTING, NO.1 LH
65557RETAINER, ROPE HOOK
65557ARETAINER, ROPE HOOK
9011910487
9033325001
9033330002
9046707185
9095001148
9095001258
9095001631
9095001711
9095001866
9422380800
9422381000

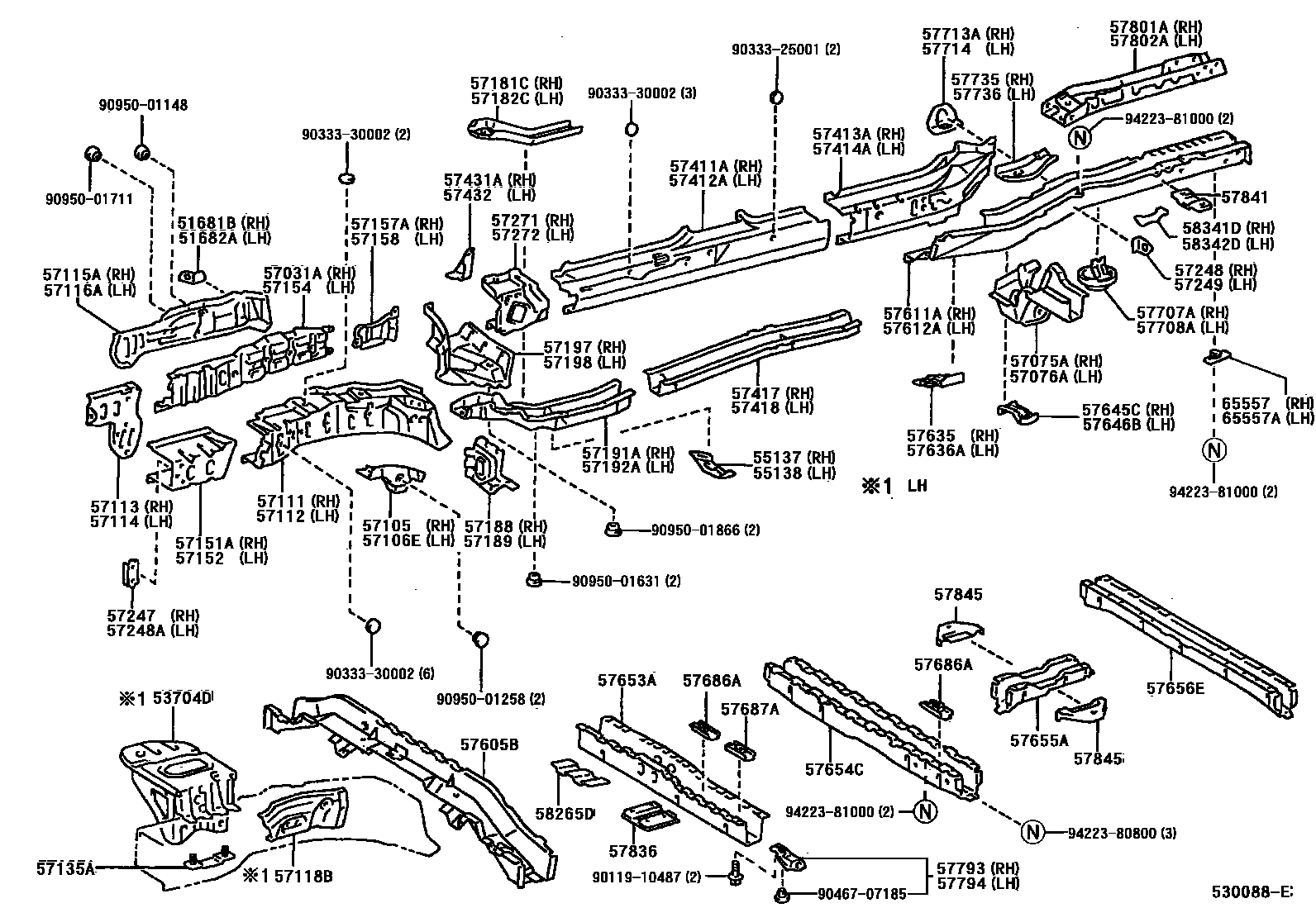

87 parts on this diagram · 1 diagram in section
