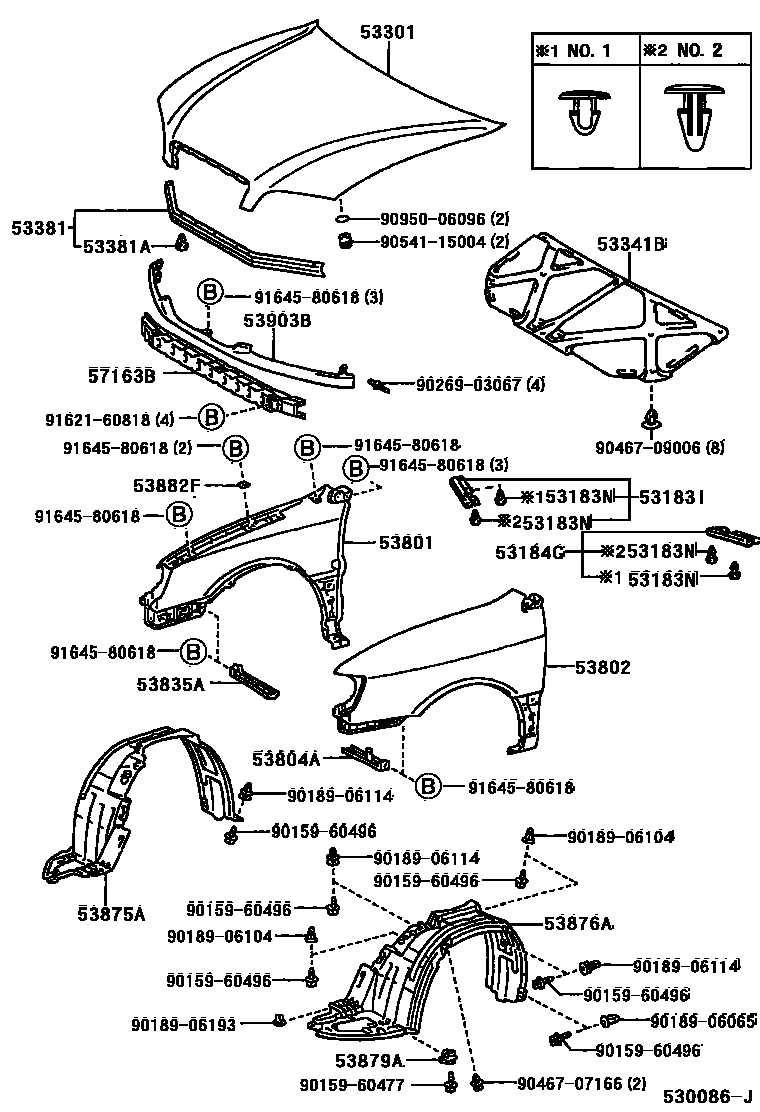

HOOD & FRONT FENDER
53183ISEAL, HEADLAMP COVER, RH
53183NCLIP(FOR HEADLAMP COVER SEAL)
NO.1
NO.2
53184GSEAL, HEADLAMP COVER, LH
53301HOOD SUB-ASSY
53341BINSULATOR, HOOD
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53804ABRACKET SUB-ASSY, FRONT SIDE PANEL, LH
53835ABRACE, FRONT FENDER TO APRON, RH
53875ALINER, FRONT FENDER, RH
53876ALINER, FRONT FENDER, LH
53879ARETAINER, FRONT FENDER LINER
53882FSEAL, FRONT FENDER
53903BPANEL SUB-ASSY, FRONT END
57163BREINFORCEMENT, FRONT CROSSMEMBER
9015960477
main90159-60477
9015960496
main90159-60496
9018906065
main90189-06065
9018906104
main90189-06104
9018906114
main90189-06114
9018906193
main90189-06193
9026903067
main90269-03067
9046707166
main90467-07166
9046709006
main90467-09006
9054115004
main90541-15004
9095006096
main90950-06096
9162160818
main91621-60818
9164580618
main91645-80618
30 parts on this diagram · 1 diagram in section
