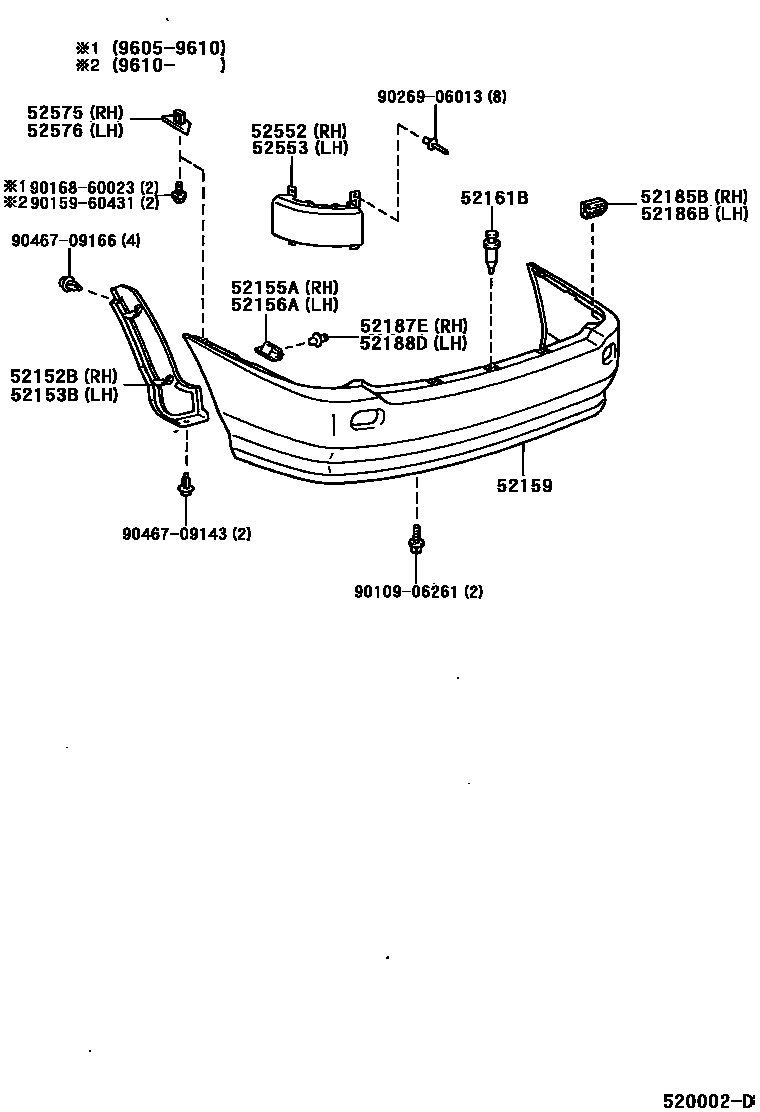

REAR BUMPER & BUMPER STAY

52152BEXTENSION, REAR BUMPER, RH

main52152-44010iCXM10,SXM10¥3,080199609

52153BEXTENSION, REAR BUMPER, LH

main52153-44010iCXM10,SXM10¥3,450199609

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-44010iCXM10,SXM10¥450199609

52156ASUPPORT, REAR BUMPER SIDE, LH

main52155-44010iCXM10,SXM10¥450199609

52159COVER, REAR BUMPER

main52159-44900iCXM10,SXM10¥34,700199609-200105

sub52159-44935¥34,500

52161BPIECE, REAR BUMPER

main52161-44010-B0iCXM10,SXM10200004-200105

MOON GRAY,056 ,199 ,3J8 ,4L9 ,760 ,8K5

sub52161-44010¥200

main52161-44010-B0iCXM10,SXM10199609-199804

MOON GRAY,056 ,199 ,3J8 ,4L9 ,6N5 ,6P3 ,6P4 ,760 ,8K4 ,8K5 ,8N2 ,934

sub52161-44010¥200

main52161-44010-B0iCXM10,SXM10199804-200004

MOON GRAY,056 ,199 ,3J8 ,4L9 ,760 ,8K5 ,8N2

sub52161-44010¥200

main52161-44010-C0iCXM10,SXM10199805-200105

BLACK,6P3

sub52161-44010¥200

52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH

main52185-44010iCXM10,SXM10¥750199609

52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH

main52185-44010iCXM10,SXM10¥750199609

52187EGUIDE, REAR BUMPER LOCATION, RH

main52187-16070iCXM10,SXM10¥260199609

52188DGUIDE, REAR BUMPER LOCATION, LH

main52187-16070iCXM10,SXM10¥260199609

52552FILLER, REAR BUMPER, RH

main52552-44010iCXM10,SXM10¥2,520199609

52553FILLER, REAR BUMPER, LH

main52553-44010iCXM10,SXM10¥2,520199609

52575RETAINER, REAR BUMPER SIDE, RH

main52575-44010iCXM10,SXM10¥670199609

52576RETAINER, REAR BUMPER SIDE, LH

main52575-44010iCXM10,SXM10¥670199609

9010906261

main90109-06261¥60

9015960431

main90159-60431¥70

9016860023

main90168-60023¥120

9026906013

main90269-06013¥60

9046709143

main90467-09143¥260

9046709166

main90467-09166¥130

20 parts on this diagram · 1 diagram in section
