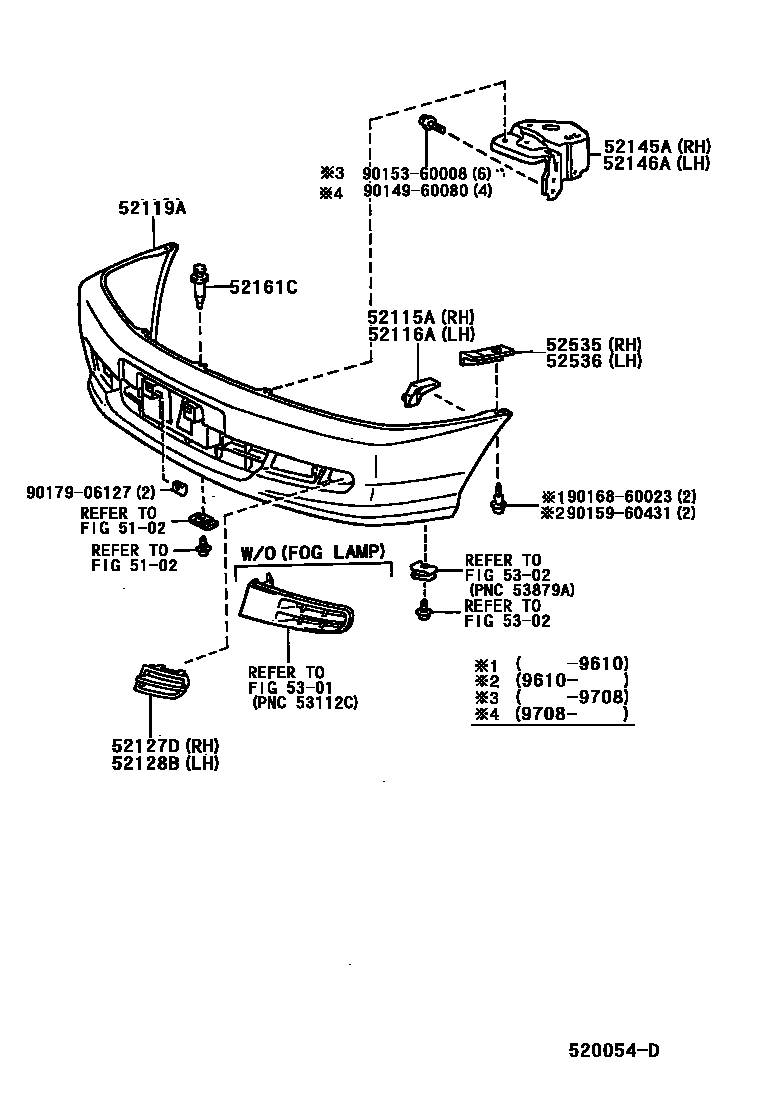

FRONT BUMPER & BUMPER STAY

5102

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-44010iCXM10,SXM10199609

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-44010iCXM10,SXM10199609

52119ACOVER, FRONT BUMPER

main52119-44900iCXM10,SXM10199609-200105

sub52119-44947

main52119-44901iCXM10,SXM10..LHD199609-200105

W(HEADLAMP CLEANER)

sub52119-44948

52127DCOVER, FRONT BUMPER HOLE, RH

main52127-44010iCXM10,SXM10199609

52128BCOVER, FRONT BUMPER HOLE, LH

main52128-44010iCXM10,SXM10199609

52145ASTAY, FRONT BUMPER, NO.2 RH

main52145-44010iCXM10,SXM10199609

52146ASTAY, FRONT BUMPER, NO.2 LH

main52146-44010iCXM10,SXM10199609

52161CPIECE, FRONT BUMPER

main52161-44010×5iCXM10,SXM10199609-199804

main52161-44010-B0×5iCXM10,SXM10199804-200004

MOON GRAY,056 ,199 ,3J8 ,4L9 ,760 ,8K5 ,8N2

main52161-44010-C0×5iCXM10,SXM10199805-200105

BLACK,6P3

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-44010iCXM10,SXM10199609

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-44010iCXM10,SXM10199609

5301

5302

9014960080

main90149-60080

9015360008

main90153-60008

9015960431

main90159-60431

9016860023

main90168-60023

9017906127

main90179-06127

18 parts on this diagram · 1 diagram in section
