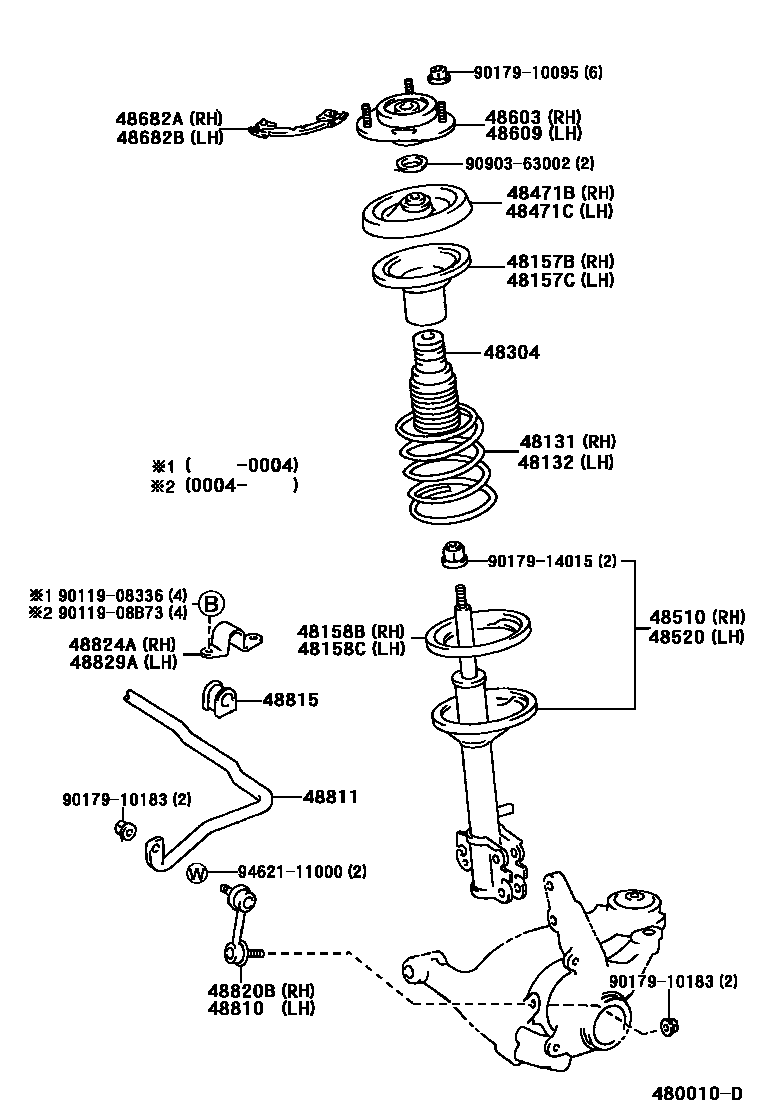

FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-44011iSXM10..LHD..MTM199609

L=396.5

main48131-44021iSXM10..RHD..MTM;SXM10..LHD..ATM199609

L=403.5

main48131-44031iCXM10..LHD;SXM10..RHD..ATM199609

L=410.5

main48131-44041iCXM10..RHD199709

L=417.5

48132SPRING, FRONT COIL, LH

main48131-44021iSXM10..MTM199609

L=403.5

main48131-44031iSXM10..RHD..ATM199609

L=410.5

main48131-44041iCXM10..RHD;SXM10..LHD..ATM199609

L=417.5

main48131-44051iCXM10..LHD199709

L=424.5

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-44010iCXM10,SXM10199609

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-44010iCXM10,SXM10199609

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-20080iCXM10,SXM10199609

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-20080iCXM10,SXM10199609

48304BUMPER SUB-ASSY, FRONT SPRING, NO.1

main48304-44010×2iSXM10199609-199612

main48304-44020×2iCXM10,SXM10199612

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48471-44010iCXM10,SXM10199609

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48471-44010iCXM10,SXM10199609

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-49046iSXM10199609

sub48510-80241

main48510-49115iCXM10199709

MARK 48510-44030

sub48510-49765

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-49046iSXM10199609

sub48520-80059

main48520-49115iCXM10199709

MARK 48520-44030

sub48520-49835

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-44011iCXM10,SXM10199609-199804

main48609-44020iCXM10,SXM10199804

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-44011iCXM10,SXM10199609-199804

main48609-44020iCXM10,SXM10199804

48682ASUPPORT, FRONT SUSPENSION, NO.2 RH

main48682-44010iCXM10,SXM10199609

48682BSUPPORT, FRONT SUSPENSION, NO.2 LH

main48682-44010iCXM10,SXM10199609

48810LINK ASSY, FRONT STABILIZER, LH

main48810-20020iCXM10,SXM10199609-200004

main48810-44010iCXM10,SXM10200004

48811BAR, STABILIZER, FRONT

main48811-44010iCXM10,SXM10199609

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-44010×2iCXM10,SXM10199609

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-20040iCXM10,SXM10199609-200004

main48820-44010iCXM10,SXM10200004

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-44010iCXM10,SXM10199609

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-44010iCXM10,SXM10199609

9011908336

main90119-08336

9011908B73

main90119-08B73

9017910095

main90179-10095

9017910183

main90179-10183

9017914015

main90179-14015

9090363002

main90903-63002

9462111000

main94621-11000

28 parts on this diagram · 1 diagram in section
