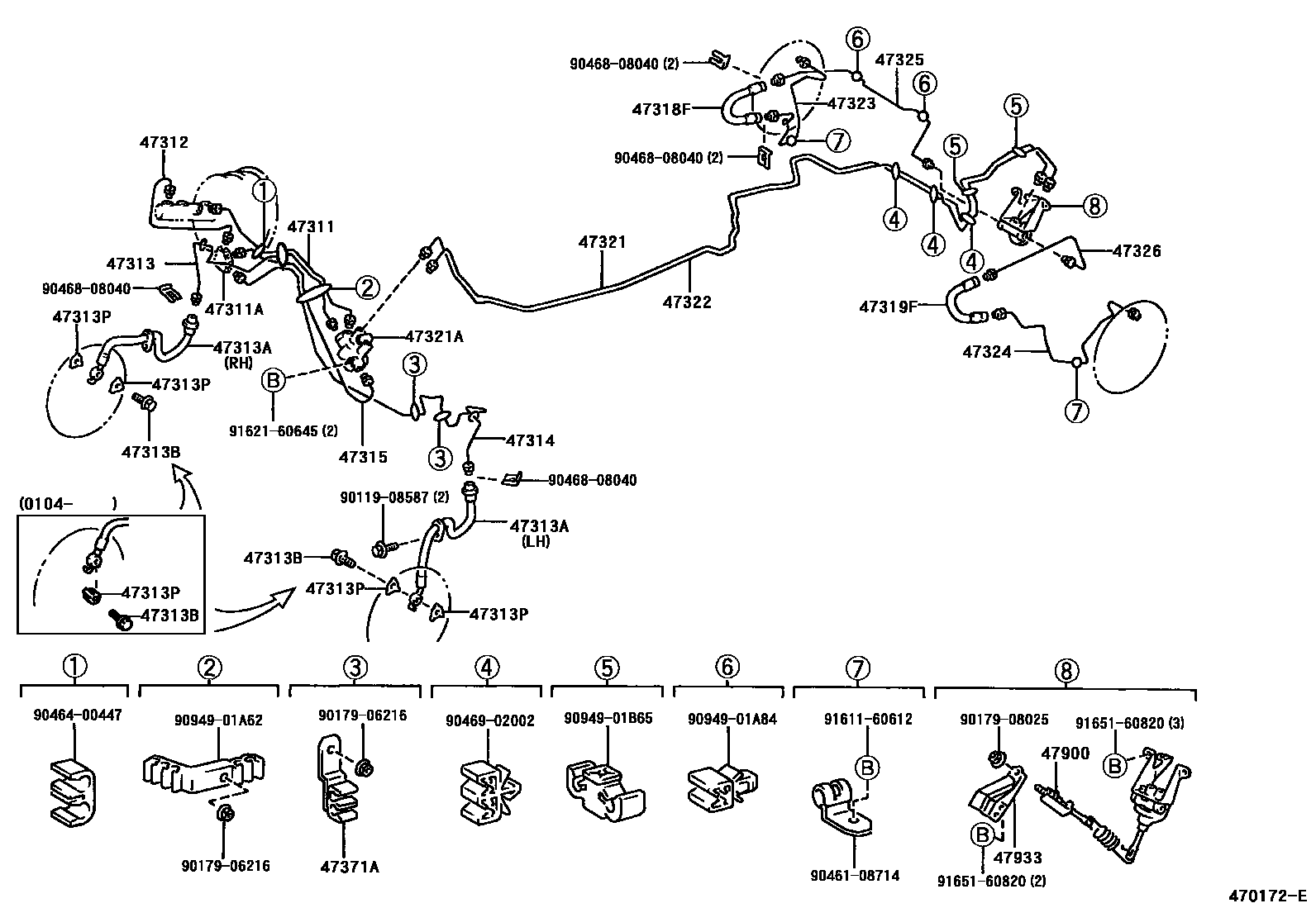

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1W(ABS) 0004 1W(ABS) 0005 1 0006 1 0007 1W(ABS) 0008 1W(ABS) 0009 1W(ABS)

47311TUBE, FRONT BRAKE, NO.1

main47311-44010iSXM10..RHD199609

W(ABS)

main47311-44020iSXM10..RHD199609

main47311-44040iCXM10,SXM10..LHD199609-200007

main47311-44050iCXM10..RHD199709-200008

W(ABS)

main47311-44060iCXM10..RHD199709-200008

47311AWAY(FOR FRONT BRAKE TUBE)

main90413-10253iCXM10,SXM10199609-200007

main90904-12028iCXM10,SXM10..LHD199609-200007

W(ABS)

47312TUBE, FRONT BRAKE, NO.2

main47311-44030iSXM10..LHD199609-200004

sub47311-44032

main47311-44032iSXM10..LHD200004

main47311-44070iCXM10..LHD199709

main47312-20310iCXM10,SXM10..RHD199609

main47312-44010iSXM10..RHD199609

W(ABS)

main47312-44020iSXM10..LHD199609-200004

W(ABS)

sub47312-44022

main47312-44022iSXM10..LHD200004

W(ABS)

main47312-44030iCXM10..RHD199709

W(ABS)

main47312-44040iCXM10..LHD199709

W(ABS)

47313TUBE, FRONT BRAKE, NO.3

main47313-44010iSXM10;CXM10..LHD199609-200008

W(ABS)

main47313-44020iSXM10..RHD199609

main47313-44030iSXM10..LHD199609

main47313-44040iCXM10..RHD199709-200008

main47313-44050iCXM10..LHD199709-200008

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02887iCXM10,SXM10199609-200105

RH

main90947-02888iCXM10,SXM10199609-200105

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iCXM10,SXM10199609-200104

main90401-10058iCXM10,SXM10200104-200105

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-30010iCXM10,SXM10199609-200104

main47389-50020iCXM10,SXM10200104-200105

47314TUBE, FRONT BRAKE, NO.4

main47314-44010iCXM10,SXM10..RHD199609-200008

W(ABS)

main47314-44020iSXM10..RHD199609

main47314-44030iSXM10..LHD199609

W(ABS)

main47314-44040iSXM10..LHD199609

main47314-44050iCXM10..RHD199709-200008

main47314-44060iCXM10..LHD199709-200008

W(ABS)

main47314-44070iCXM10..LHD199709-200008

47315TUBE, FRONT BRAKE, NO.5

main47315-44010iSXM10..RHD199609

main47315-44020iSXM10..LHD199609

W(ABS)

main47315-44030iSXM10..LHD199609

main47315-44040iCXM10..RHD199709-200008

main47315-44050iCXM10..LHD199709-200008

W(ABS)

main47315-44060iCXM10..LHD199709-200008

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02874iCXM10,SXM10199609-200004

main90947-02C39iCXM10,SXM10200004

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02874iCXM10,SXM10199609-200004

main90947-02C39iCXM10,SXM10200004

47321TUBE, REAR BRAKE, NO.1

main47321-44020iCXM10,SXM10199609-200008

main47321-44030iCXM10,SXM10199609-200008

W(ABS)

47321AWAY(FOR REAR BRAKE TUBE)

main90413-10205iCXM10,SXM10199609-200008

47322TUBE, REAR BRAKE, NO.2

main47322-44020iCXM10,SXM10199609-200008

main47322-44030iCXM10,SXM10199609-200008

W(ABS)

47323TUBE, REAR BRAKE, NO.3

main47323-44010iCXM10,SXM10199609

47324TUBE, REAR BRAKE, NO.4

main47324-44010iCXM10,SXM10199609

47325TUBE, REAR BRAKE, NO.5

main47325-44010iCXM10,SXM10199609-200008

47326TUBE, REAR BRAKE, NO.6

main47326-44010iCXM10,SXM10199609-200008

47371ACLAMP, BRAKE TUBE, NO.1

main47371-16030iCXM10,SXM10..RHD199609-200008

main47371-20590iCXM10,SXM10..LHD199609-200008

47900VALVE ASSY, LOAD SENSING W/SPRING

main47900-44010iCXM10,SXM10199609-200007

sub47900-44011

47933BRACKET, LOAD SENSING SHACKLE, NO.1

main47933-44010iCXM10,SXM10199609-200007

9011908587

main90119-08587

9017906216

main90179-06216

9017908025

main90179-08025

9046108714

main90461-08714

9046400447

main90464-00447

9046808040

main90468-08040

9046902002

main90469-02002

9094901A62

main90949-01A62

9094901A84

main90949-01A84

9094901B65

main90949-01B65

9161160612

main91611-60612

9162160645

main91621-60645

9165160820

main91651-60820

34 parts on this diagram · 9 diagrams in section
