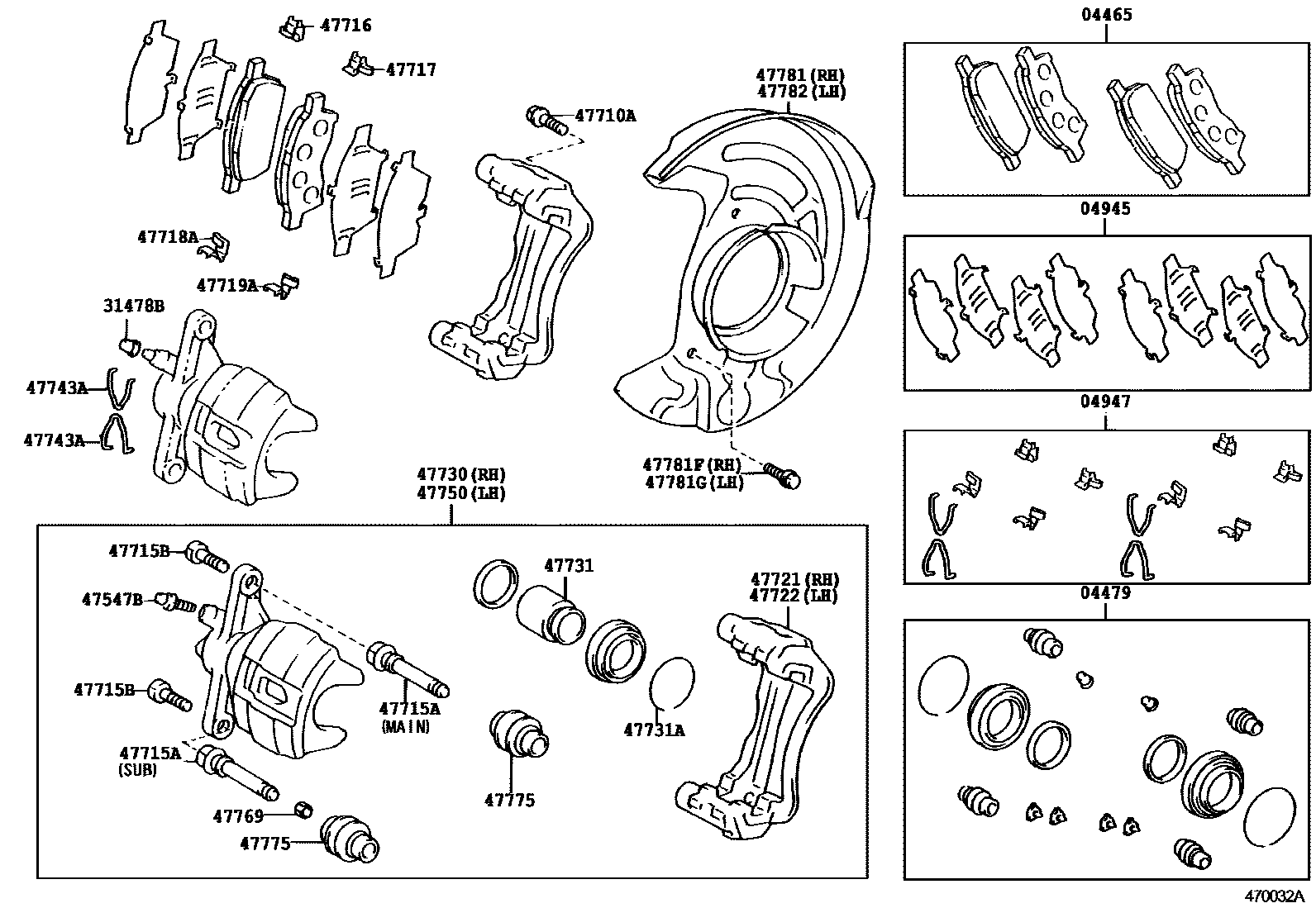

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-44020iCXM10,SXM10¥12,200199609-200007

sub04465-44110

main04465-44020iCXM10,SXM10¥12,200200007-200105

MARK NBK PN540H

sub04465-44110

main04465-44030iSXM10..RHD..07S..ATM¥12,200199902-200105

MARK AK PA533,NEW ZEALAND SPEC

main04465-44040iCXM10,SXM10..LHD¥12,200199710-200007

GERMAN SPEC

sub04465-44120¥12,200

main04465-44040iCXM10,SXM10..LHD¥12,200200007-200105

MARK NBK PN532H,GERMAN SPEC

sub04465-44120¥12,200

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-44010iCXM10,SXM10¥2,790199609-200104

sub04479-44040¥2,790

main04479-44040iCXM10,SXM10¥2,790200104-200105

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-44010iCXM10,SXM10¥2,120199609-200105

04947FITTING KIT, DISC BRAKE, FRONT

main04947-33040iCXM10,SXM10¥2,060199609-200105

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iCXM10,SXM10¥160199609-200105

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-27030iCXM10,SXM10¥180199609-200105

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iCXM10,SXM10¥160199609-200105

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-22070iCXM10,SXM10¥620199609-200105

SUB PIN SIDE

main47715-22080iCXM10,SXM10¥820199609-200105

MAIN PIN SIDE

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08164iCXM10,SXM10¥90199609-200105

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-33010iCXM10,SXM10¥390199609-200105

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-33020iCXM10,SXM10¥300199609-200105

47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)

main47717-33010iCXM10,SXM10¥240199609-200105

47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)

main47717-33020iCXM10,SXM10¥240199609-200105

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-44010iCXM10,SXM10¥6,200199609-200105

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-44010iCXM10,SXM10¥6,200199609-200105

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-44010iCXM10,SXM10¥44,400199609-200105

47731PISTON, FRONT DISC BRAKE

main47731-44010iCXM10,SXM10¥2,980199609-200105

sub47731-33010¥3,000

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-66001iCXM10,SXM10¥160199609-200105

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-50030iCXM10,SXM10¥320199609-200105

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-44010iCXM10,SXM10¥44,400199609-200105

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iCXM10,SXM10¥50199609-200105

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-30070iCXM10,SXM10¥840199609-200105

sub47775-50010¥580

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-33010iCXM10,SXM10¥1,700199609-200007

47781FBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)

main90119-06227iCXM10,SXM10¥90199609-200007

47781GBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)

main90119-06227iCXM10,SXM10¥90199609-200007

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-33010iCXM10,SXM10¥1,700199609-200007

26 parts on this diagram · 1 diagram in section
