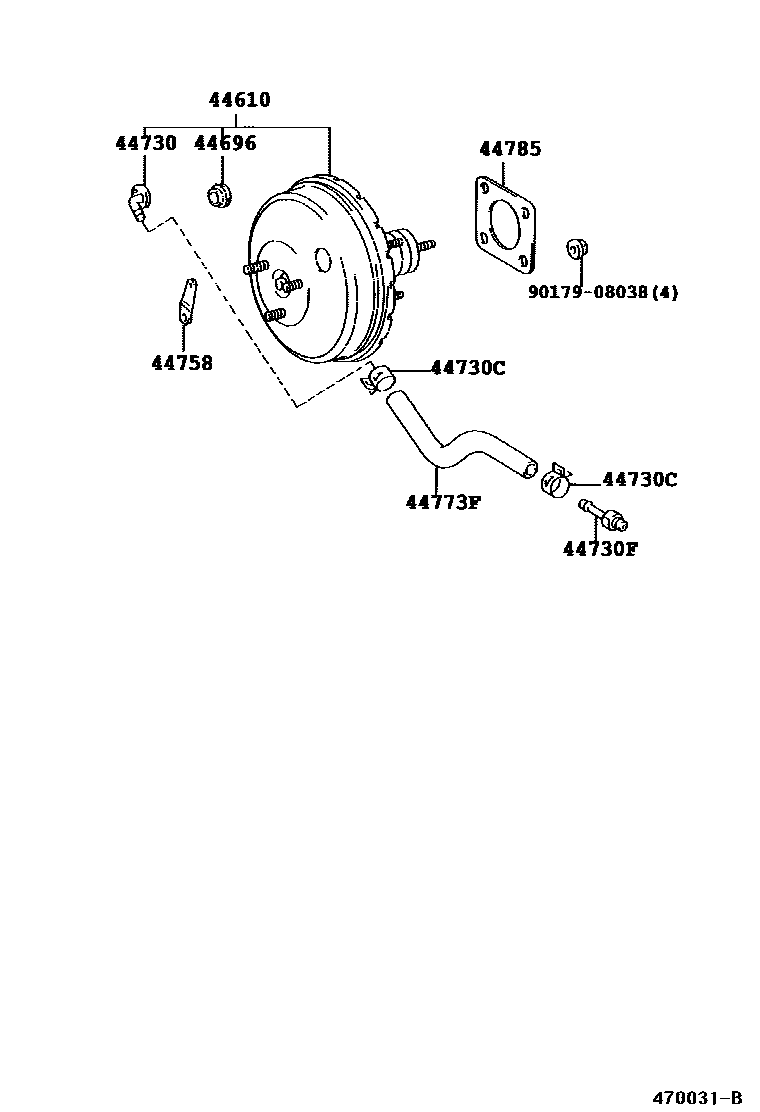

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

44610BOOSTER ASSY, BRAKE

main44610-44020iSXM10..LHD199609

main44610-44030iSXM10..RHD199609-199708

main44610-44060iSXM10..RHD..07S..ATM199902

NEW ZEALAND SPEC

main44610-44070iSXM10..RHD199708

main44610-44090iCXM10..RHD199709-200007

main44610-44100iCXM10..LHD199709-200007

44696GROMMET, CHECK VALVE

main90480-24015iSXM10199708

main90480-24439iSXM10199609-199708

main90480-24439iSXM10..RHD..07S..ATM199902

NEW ZEALAND SPEC

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-14050iSXM10..RHD..07S..ATM199902

NEW ZEALAND SPEC

main44730-14050iSXM10199609-199708

main44730-28010iSXM10199708

main44730-60050iCXM10199709-200007

44730CCLIP(FOR VACUUM HOSE)

main90467-16002iCXM10;SXM10..LHD199609-200007

sub96134-51500

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51319iSXM10199609

44758BRACKET, VACUUM CHECK VALVE

main44758-44010iSXM10..LHD199609

main44758-44020iSXM10..RHD199609

sub44758-32070

44773FHOSE, UNION TO CHECK VALVE

main44773-44010iSXM10..RHD199609

main44773-44020iCXM10199709-200007

44785GASKET, BRAKE BOOSTER

main44785-20020iCXM10199709-200007

NO.1

main44785-20020iSXM10199609

main44785-32010iCXM10199709-200007

NO.2

9017908038

main90179-08038

9 parts on this diagram · 4 diagrams in section
