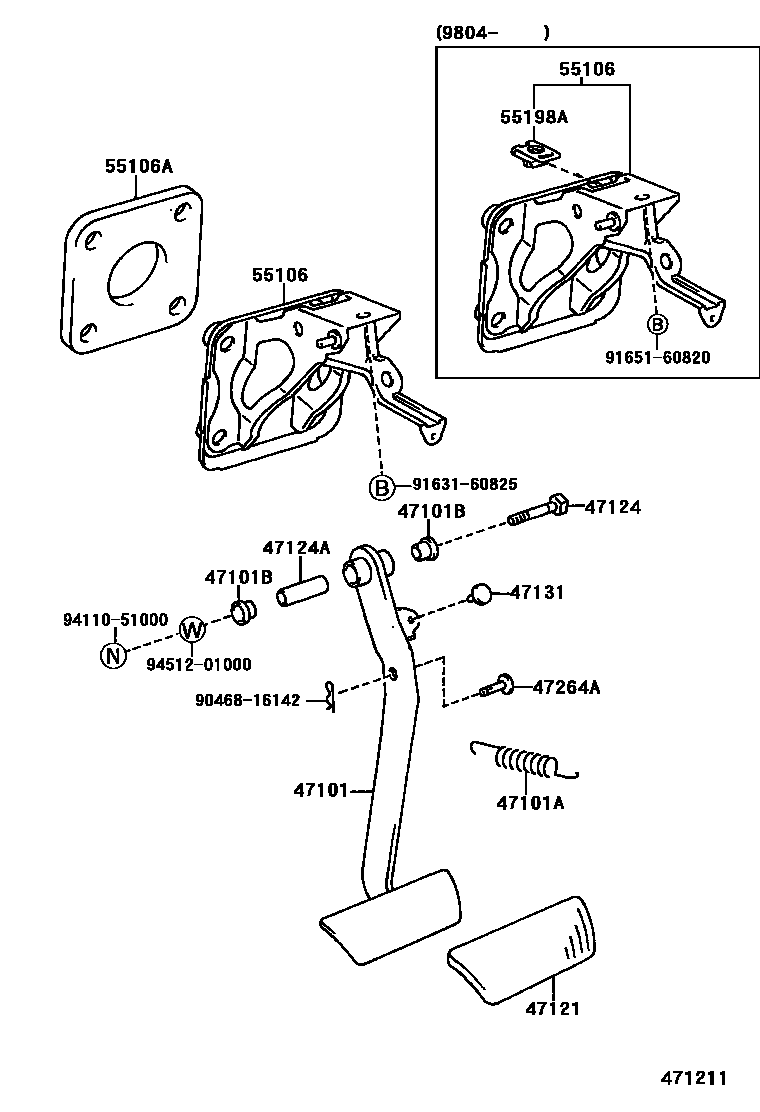

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-44020iSXM10..RHD..ATM199609-199804

main47101-44030iCXM10,SXM10..RHD..MTM199609-199804

main47101-44040iSXM10..LHD..ATM199609-199804

main47101-44050iCXM10,SXM10..LHD..MTM199609-199804

main47101-44070iSXM10..RHD..ATM199804

sub47101-44060

main47101-44080iCXM10,SXM10..RHD..MTM199804-200008

main47101-44090iSXM10..LHD..ATM199804

main47101-44100iCXM10,SXM10..LHD..MTM199804-200008

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90905-06025iCXM10,SXM10199609-200008

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iCXM10,SXM10199609-200008

47124SHAFT, BRAKE PEDAL

main90101-10164iCXM10,SXM10199609-200008

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10004iCXM10,SXM10199609-200008

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iCXM10,SXM10199609-200008

47264APIN(FOR PUSH ROD)

main90249-10064iCXM10,SXM10199609-200008

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-44010iCXM10,SXM10..RHD199609-199804

main55106-44020iCXM10,SXM10..LHD199609-199804

main55106-44030iCXM10,SXM10..RHD199804

main55106-44040iCXM10,SXM10..LHD199804

55106ASEAL, DASH PANEL

main55259-20010iCXM10,SXM10199609

55198AHOLDER, BRAKE AWAY MOUNTING BOLT

main55198-13010iCXM10,SXM10199804

9046816142

main90468-16142

9163160825

main91631-60825

9165160820

main91651-60820

9411051000

main94110-51000

9451201000

main94512-01000

15 parts on this diagram · 1 diagram in section
