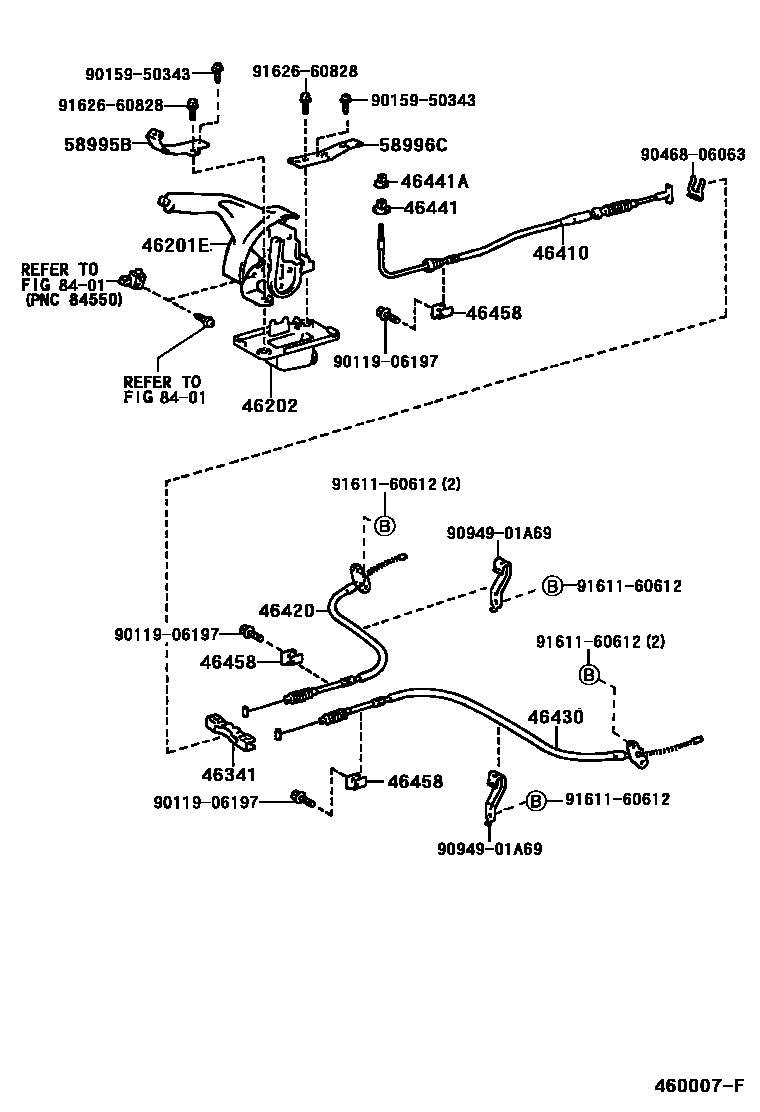

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-44010-B0iCXM10,SXM10199609-200105

MD.MOON MIST,TRIM1#

sub46201-44030

46202BOOT SUB-ASSY, PARKING BRAKE LEVER

main46202-44010iCXM10,SXM10199609-200007

46341EQUALIZER, PARKING BRAKE

main46341-12020iCXM10,SXM10200007

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-44010iCXM10,SXM10..RHD199609-200007

main46410-44020iCXM10,SXM10..LHD199609-200007

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-44010iCXM10,SXM10200007

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-44010iCXM10,SXM10199609-200007

46441NUT, WIRE ADJUSTING, NO.1

main90179-06164iCXM10,SXM10199609-200007

sub90179-06171

46441ANUT, WIRE ADJUSTING, NO.2

main90179-06058iCXM10,SXM10199609-200007

sub90179-06299

46458RETAINER, CABLE

main46458-28010×3iCXM10,SXM10199609-200007

58995BBRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-44010iCXM10,SXM10199609

58996CBRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-44010iCXM10,SXM10199609

8401

9011906197

main90119-06197

9015950343

main90159-50343

9046806063

main90468-06063

9094901A69

main90949-01A69

9161160612

main91611-60612

9162660828

main91626-60828

18 parts on this diagram · 1 diagram in section
