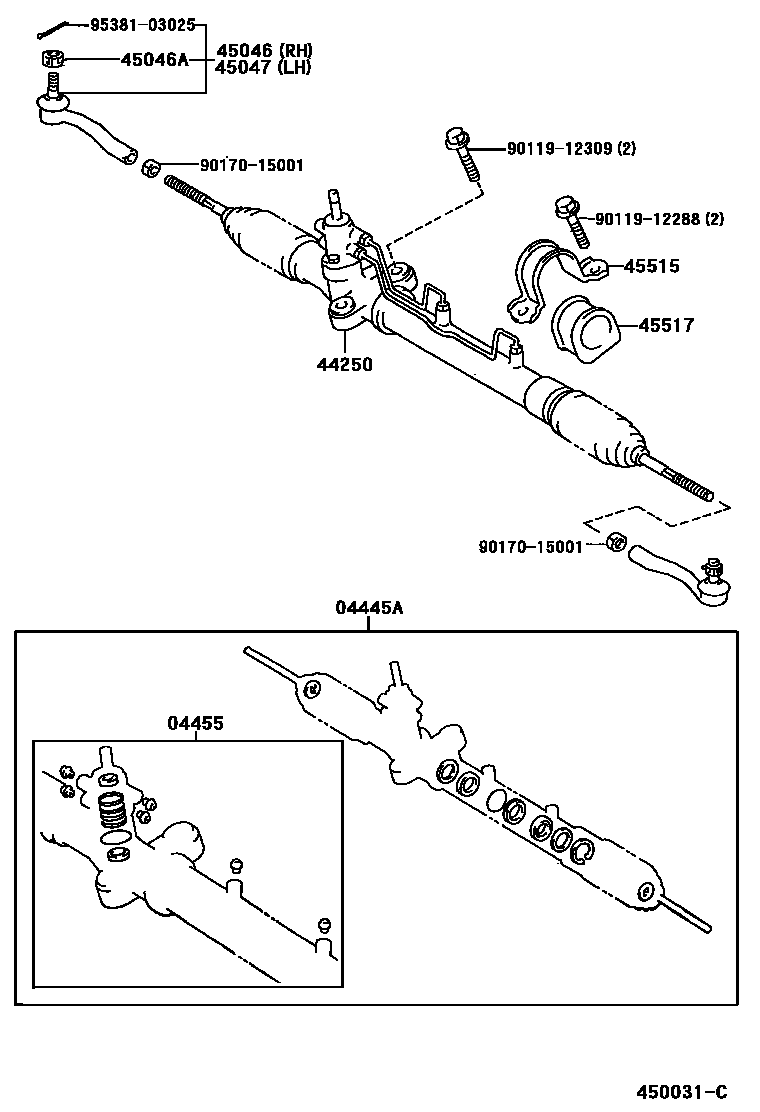

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-20161iCXM10,SXM10199609-200105

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-20120iCXM10,SXM10199609-200105

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-44030iSXM10..LHD199609-199708

sub44250-44031

main44250-44031iCXM10,SXM10..LHD199708-200105

main44250-44040iCXM10,SXM10..RHD199609-200105

45046END SUB-ASSY, TIE ROD, RH

main45046-29335iCXM10,SXM10199609-200105

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iCXM10,SXM10199609-200008

45047END SUB-ASSY, TIE ROD, LH

main45047-29105iCXM10,SXM10199609-200105

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-20150iCXM10..RHD199709-200008

main45515-20160iSXM10..RHD199609

main45515-20210iCXM10,SXM10..LHD199609-200008

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-44020iCXM10,SXM10..LHD199609-200008

main45517-44030iCXM10,SXM10..RHD199609-200008

9011912288

main90119-12288

9011912309

main90119-12309

9017015001

main90170-15001

9538103025

main95381-03025

12 parts on this diagram · 4 diagrams in section
