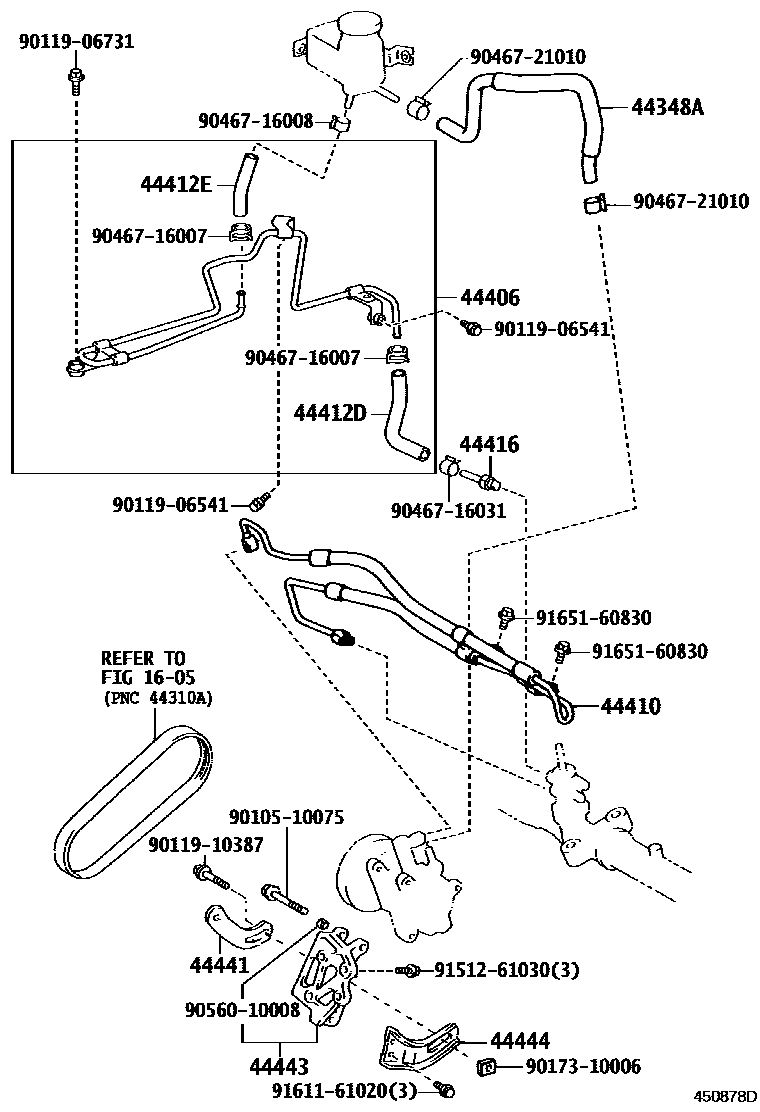

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1

1605

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-44010iSXM10199609

main44348-44030iCXM10199709

44406TUBE SUB-ASSY, RETURN

main44406-44050iSXM10..RHD199609-199708

main44406-44051iSXM10..RHD199708

44410TUBE ASSY, PRESSURE FEED

main44410-44030iSXM10..LHD199609-199804

sub44410-44031

main44410-44031iSXM10..LHD199804

main44410-44040iSXM10..RHD199609

main44410-44060iCXM10..LHD199709-199810

sub44410-44061

sub44457-44011

sub91626-60616

main44410-44061iCXM10..LHD199810-200008

main44410-44070iCXM10..RHD199709-199810

sub44410-44071

sub44457-44011

sub91626-60616

main44410-44071iCXM10..RHD199810-200008

44412HOSE, RETURN

main44412-44070iSXM10..LHD199609

44412DHOSE, RETURN, NO.1

main44412-44030iSXM10..RHD199609-199708

main44412-44060iSXM10..LHD199609-199708

main44412-44090iCXM10..RHD199709-200008

main44412-44100iCXM10..LHD199709-200008

44412EHOSE, RETURN, NO.2

main44412-44020iSXM10..RHD199609-199708

main44412-44080iCXM10..LHD199709-200008

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-20220iCXM10,SXM10..RHD199609-200008

44441BRACKET, PUMP, FRONT

main44441-32010iSXM10199609

44443BRACKET, PUMP

main44443-20050iSXM10199609

44444STAY, PUMP, REAR

main44444-20030iSXM10199609

9010510075

main90105-10075

9011906541

main90119-06541

9011906731

main90119-06731

9011910387

main90119-10387

9017310006

main90173-10006

9046716007

main90467-16007

9046716008

main90467-16008

9046716031

main90467-16031

9046721010

main90467-21010

9056010008

main90560-10008

9151261030

main91512-61030

9161161020

main91611-61020

9165160830

main91651-60830

24 parts on this diagram · 4 diagrams in section
