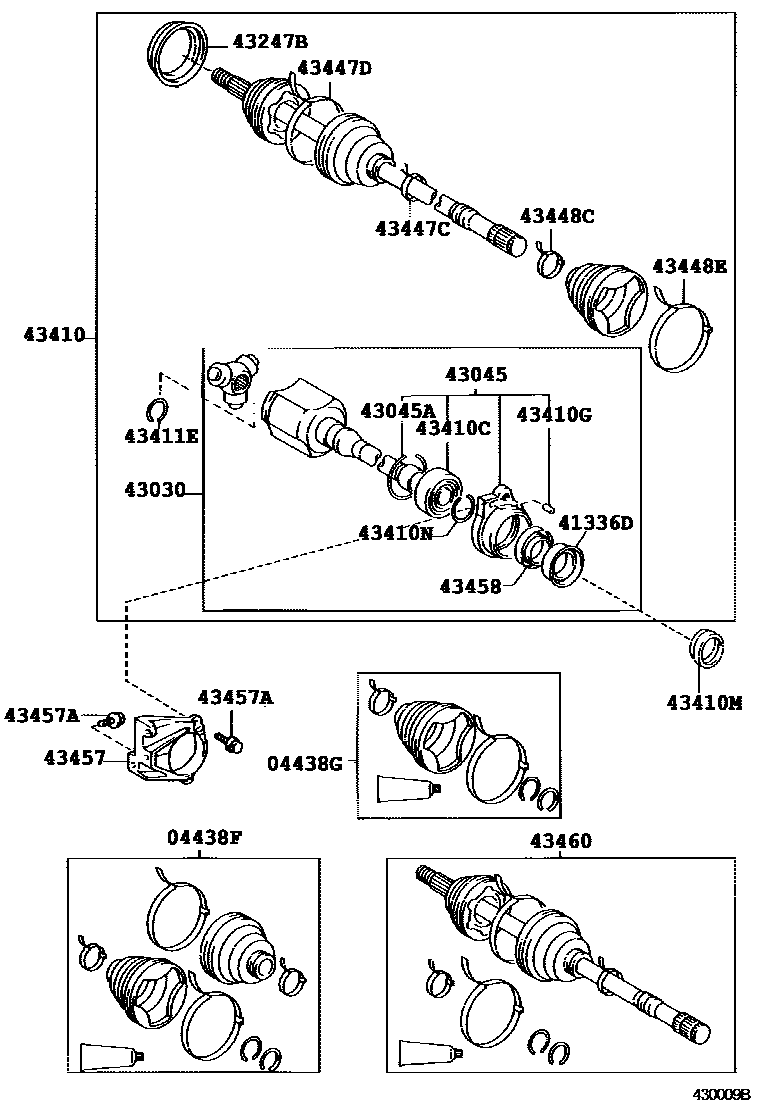

FRONT DRIVE SHAFT

0001 1RH 0002 1RH 0003 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04438-12290iSXM10¥10,800199609-199804

sub04438-20131¥10,800

main04438-12481iSXM10¥10,800200104-200105

sub04428-12250¥10,800

main04438-20131iSXM10¥10,800199804-199901

sub04438-20134¥10,800

main04438-20132iSXM10¥10,800199901-200104

sub04438-20133¥10,800

main04438-44020iCXM10¥10,800199709-200105

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-12420iSXM10¥6,700199609-199804

sub04438-20121¥6,700

main04438-12470iSXM10¥6,700200104-200105

sub04438-32240¥6,700

main04438-20121iSXM10¥6,700199804-200104

sub04438-12470¥6,700

main04438-44030iCXM10¥6,700199709-200105

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-20011iCXM10,SXM10¥510199609-199908

sub41336-20050¥430

main41336-20050iCXM10,SXM10¥430199908

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-20030iSXM10¥32,500199609-199806

sub43030-32060¥32,700

main43030-32060iSXM10¥32,700199806

main43030-44010iCXM10¥32,700199709

43045CASE SUB ASSY, DRIVE SHAFT BEARING

main43045-20010iSXM10¥4,830199609

43045ARING, SNAP (FOR CASE SUB ASSY, DRIVE SHAFT BEARING)

main96153-00680iSXM10¥280199609

43247BDEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2

main43247-12010iCXM10,SXM10¥780199609

W(ABS)

main43247-33010iCXM10,SXM10¥2,400199609

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-20540iSXM10¥79,500199609-199709

sub43410-20541¥79,600

sub90178-22001¥310

main43410-20541iSXM10¥79,600199709-199901

sub43410-20542¥79,600

main43410-20542iSXM10¥79,600199901-200104

sub43410-20543¥79,600

main43410-20580iSXM10¥79,500199609-199709

W(ABS)

sub43410-20581¥79,600

sub90178-22001¥310

main43410-20581iSXM10¥79,600199709-199901

W(ABS)

sub43410-20582¥79,600

main43410-20582iSXM10¥79,600199901-200104

W(ABS)

sub43410-20583¥79,600

main43410-20583iSXM10¥79,600200104-200105

main43410-44011iCXM10¥82,700199709-200105

sub43410-44021¥82,900

main43410-44021iCXM10¥82,900199709-200105

W(ABS)

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90363-36001iCXM10,SXM10¥2,470199609-199806

sub90363-36004¥2,470

sub90363-36010¥2,470

main90363-36004iCXM10,SXM10¥2,470199806

43410GPIN, STRAIGHT (FOR FRONT DRIVE SHAFT)

main90250-06003iSXM10¥90199609

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-35019iSXM10..ATM¥400199609-199908

main90311-35033iCXM10,SXM10..MTM¥400199609-200007

main90311-35045iSXM10..ATM¥290199908

main90311-35049iCXM10,SXM10..MTM¥290200007

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-33008iCXM10,SXM10¥110199609

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90520-22005iSXM10¥100199609

main90520-71002iCXM10¥230199709

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-14010iSXM10¥700199609-199901

ID=35.75

main42345-20100iSXM10¥530199901-200104

ID=31.1

main90949-01947iSXM10¥360199804-199901

ID=35.45

main90949-01A65iCXM10¥360199709-200105

ID=34.1

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-16040iSXM10¥550199609-199804

ID=91.9

main42345-20120iSXM10¥620199901-200105

ID=90.6

main90949-01076iSXM10¥380199804-199901

ID=92.2

sub42345-12160¥300

main90949-01937iCXM10¥510199709-200105

ID=95.0

main90949-01946iSXM10¥230199804-199901

ID=91.9

sub42345-12160¥300

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42354-16010iSXM10199609-199804

main90949-01078iSXM10¥80199804

main90949-01108iCXM10¥320199709

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-16040iSXM10¥550199609-199804

main42346-22010iCXM10¥620199709

main90949-01076iSXM10¥380199804

ID=92.2

sub42345-12160¥300

main90949-01946iSXM10¥230199804

ID=91.9

sub42345-12160¥300

43457BRACKET, DRIVE SHAFT BEARING

main43457-20040iSXM10¥5,700199609

main43457-32060iCXM10¥7,400199709

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-10285iSXM10¥250199609

*10-1.25PX22-19.5

sub90105-10361¥110

main90119-10461iCXM10¥200199709

*10-1.25PX19.8-8.3

43458COVER, FRONT DRIVE SHAFT DUST

main43458-20011iCXM10,SXM10¥930199609

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-49016iCXM10199709-200105

main43460-49026iCXM10¥50,800199709-200105

W(ABS)

main43470-19645iSXM10¥38,900199609-199709

sub43470-19646¥38,900

sub90178-22001¥310

main43470-19647iSXM10¥38,900199804-199901

sub43470-19648¥38,900

main43470-19648iSXM10¥38,900199901-200104

sub43470-19659¥38,900

main43470-19655iSXM10¥38,900199609-199709

W(ABS)

sub43470-19656¥38,900

sub90178-22001¥310

main43470-19656iSXM10¥38,900199709-199804

W(ABS)

sub43470-19657¥38,900

main43470-19657iSXM10¥38,900199804-199901

W(ABS)

sub43470-19658¥38,900

main43470-19658iSXM10¥38,900199901-200104

W(ABS)

sub43470-19659¥38,900

main43470-19659iSXM10¥38,900200104-200105

21 parts on this diagram · 3 diagrams in section
