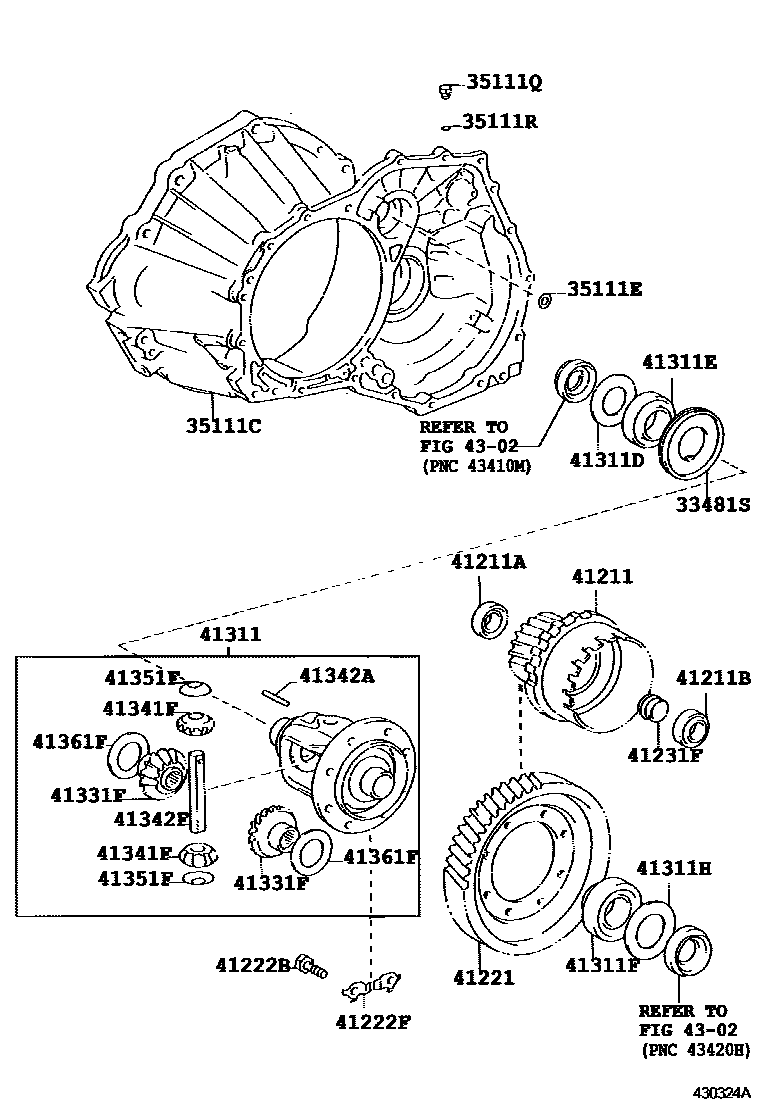

FRONT AXLE HOUSING & DIFFERENTIAL
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=27
33481SGEAR, SPEEDOMETER DRIVE (ATM)
N=25,NO MARK
35111EWASHER, SEAL (FOR FRONT TRANSAXLE HOUSING)
35111QPLUG, NO.2 (FOR TRANSAXLE HOUSING)
35111RRING, O (FOR TRANSAXLE HOUSING PLUG NO.2)
41211PINION, DIFFERENTIAL DRIVE
41221GEAR, FRONT DIFFERENTIAL RING
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK
41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING
41311DSHIM (FOR FRONT DIFFERENTIAL CASE FRONT)
T=2.40,MARK 11
T=2.60,MARK 15
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
41311HWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
T=2.00,MARK 01
T=2.05,MARK 02
T=2.10,MARK 03
T=2.15,MARK 04
T=2.20,MARK 05
T=2.25,MARK 06
T=2.30,MARK 07
T=2.35,MARK 08
T=2.40,MARK 09
T=2.45,MARK 10
T=2.50,MARK 11
T=2.55,MARK 12
T=2.60,MARK 13
T=2.65,MARK 14
T=2.70,MARK 15
T=2.75,MARK 16
T=2.80,MARK 17
T=2.85,MARK 18
T=2.90,MARK 19
41331FGEAR, FRONT DIFFERENTIAL SIDE
41341FPINION, FRONT DIFFERENTIAL
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
sub41342-52060
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=0.95
T=1.00
T=1.05
T=1.10
T=1.15
T=1.20
T=1.00,MARK 02
T=1.10,MARK 03
T=1.20,MARK 04
T=0.95,MARK 14
T=1.05,MARK 15
T=1.15,MARK 16
4302
25 parts on this diagram · 2 diagrams in section
