REAR AXLE SHAFT & HUB

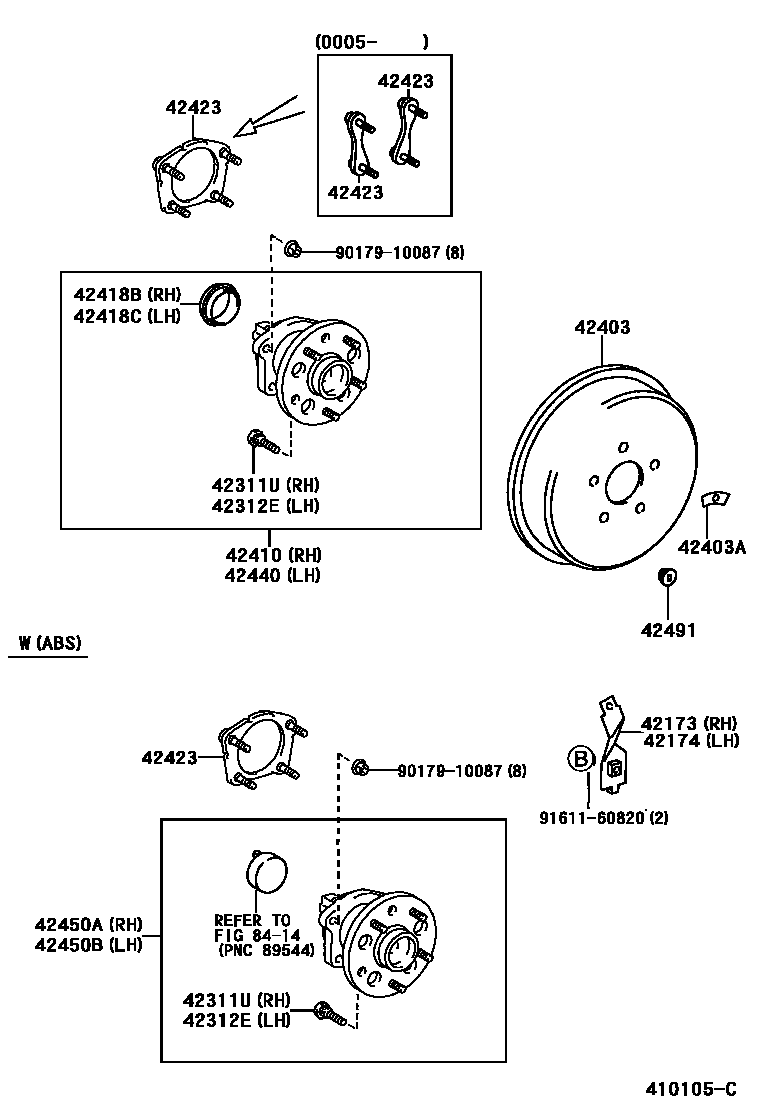

Parts diagram
42173BRACKET, REAR AXLE HARNESS, RH
main42173-44010i¥510199609-200008
42174BRACKET, REAR AXLE HARNESS, LH
main42174-44010i¥510199609-200008
42311UBOLT, HUB(FOR REAR AXLE RH)
main90942-02070i¥390199609-200008
sub90942-02049¥240
42312EBOLT, HUB(FOR REAR AXLE LH)
main90942-02070i¥390199609-200008
sub90942-02049¥240
42403DRUM SUB-ASSY, REAR BRAKE
main42431-44010i¥13,300199609-200007
42403APIECE, BALANCE (FOR REAR BRAKE DRUM)
main90937-01287i¥250199609-200007
10G
main90937-01288i¥330199609-200007
20G
main90937-01289i¥430199609-200007
30G
42410HUB & BEARING ASSY, REAR AXLE, RH
main42410-42010i¥25,900199609-200008
42418BCAP, REAR HUB GREASE, RH
main43514-50010i¥750199609-200008
42418CCAP, REAR HUB GREASE, LH
main43514-50010i¥750199609-200008
42423RETAINER, REAR AXLE BEARING, INNER
main42423-28010i¥760200005
main42423-44010i¥1,330199609-200005
42440HUB & BEARING ASSY, REAR AXLE, LH
main42410-42010i¥25,900199609-200008
42450AHUB & BEARING ASSY, REAR AXLE, RH
main42450-44010i¥37,800199609-200008
42450BHUB & BEARING ASSY, REAR AXLE, LH
main42450-44010i¥37,800199609-200008
42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)
main47491-14010i¥230199609-200007
8414
9017910087
main90179-10087¥110
9161160820
main91611-60820¥200

17 parts on this diagram · 1 diagram in section
