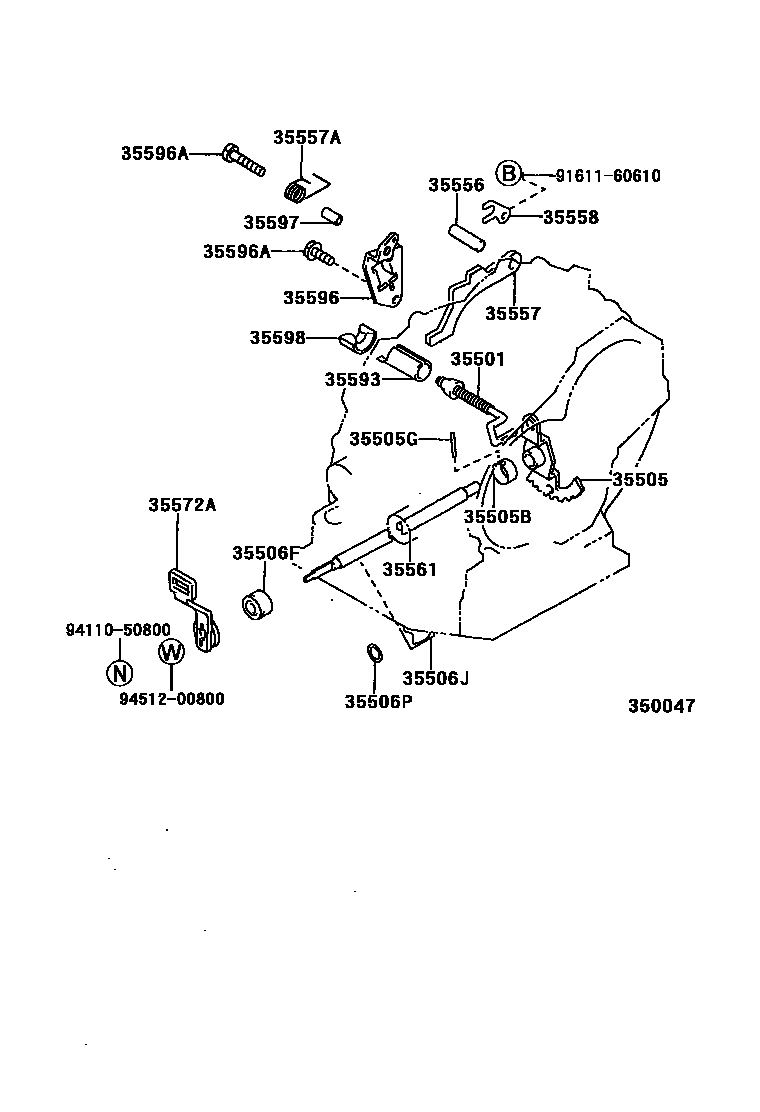

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A241E,A247E 0002 1A241E 0003 1A247E

35501ROD SUB-ASSY, PARKING LOCK

main35501-12010iSXM10..ATM199609

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-20040iSXM10..ATM199609-199804

main35505-44010iSXM10..ATM199804

35505BSPACER (FOR MANUAL VALVE LEVER)

main90560-20006iSXM10..ATM199609

35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)

main90254-04011iSXM10..ATM199609

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iSXM10..ATM199609

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-11001iSXM10..ATM199609

35506PWASHER, PLATE (FOR MANUAL VALVE LEVER SHAFT)

main90201-12028iSXM10..ATM199609

35556SHAFT, PARKING LOCK PAWL

main35556-12020iSXM10..ATM199609

35557PAWL, PARKING LOCK

main35557-12020iSXM10..ATM199609

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21003iSXM10..ATM199609

35558CLAMP, PAWL SHAFT

main35558-12010iSXM10..ATM199609

35561SHAFT, MANUAL VALVE LEVER

main35561-12020iSXM10..ATM199609-199804

main35561-12030iSXM10..ATM199804

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-12120iSXM10..ATM199609-199804

main35572-44030iSXM10..ATM199804

sub35572-44040

35593SLEEVE, CAM GUIDE

main35593-12010iSXM10..ATM199609

35596PLATE, PAWL STOPPER

main35596-12010iSXM10..ATM199609

35596ABOLT (FOR PAWL STOPPER PLATE)

main90105-08068iSXM10..ATM199609

*8-1.25PX35-30

sub90105-08333

main90105-08070iSXM10..ATM199609

*8-1.25PX17-13.5

35597SLEEVE, SPRING GUIDE

main35597-12010iSXM10..ATM199609

35598SLEEVE, PARKING LOCK

main35598-12010iSXM10..ATM199609

9161160610

main91611-60610

9411050800

main94110-50800

9451200800

main94512-00800

21 parts on this diagram · 3 diagrams in section
