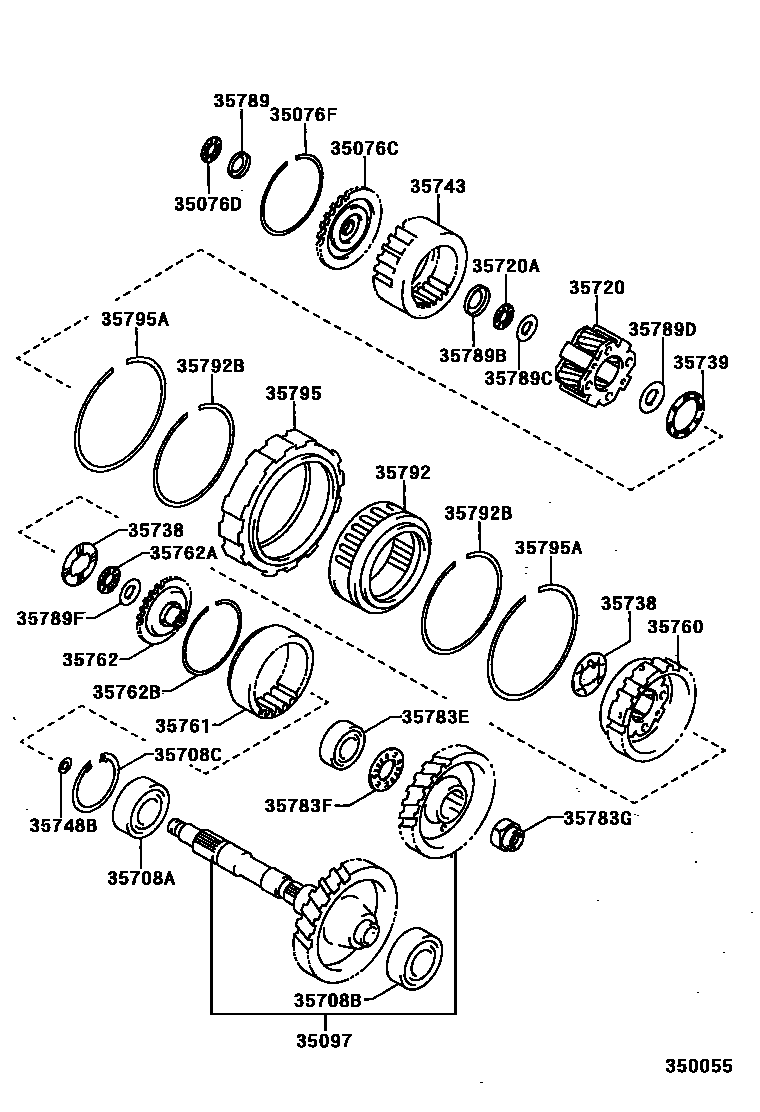

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
35076CFLANGE SUB-ASSY, FRONT PLANETARY RING GEAR
35076FRING, HOLE SNAP (FOR FRONT PLANETARY RING GEAR FLANGE)
35097COUNTER GEAR KIT, AUTOMATIC TRANSAXLE
35708ABEARING, RADIAL BALL (FOR INTERMEDIATE SHAFT FRONT)
35708BBEARING, RADIAL BALL (FOR INTERMEDIATE SHAFT REAR)
35708CRING, HOLE SNAP (FOR INTERMEDIATE SHAFT FRONT BEARING)
35720GEAR ASSY, FRONT PLANETARY
35738WASHER, PLANETARY CARRIER THRUST, NO.2
35739WASHER, PLANETARY CARRIER THRUST, NO.3
35743GEAR, FRONT PLANETARY RING
35748BRING, INTERMEDIATE SHAFT OIL SEAL
35760GEAR ASSY, REAR PLANETARY
35761GEAR, REAR PLANETARY RING
35762FLANGE, REAR PLANETARY RING GEAR
35762ABEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANGE)
35762BRING, HOLE SNAP (FOR REAR PLANETARY RING GEAR FLANGE)
35783EBEARING, CYLINDRICAL ROLLER(FOR COUNTER DRIVEN GEAR)
35783FBEARING, THRUST NEEDLE ROLLER(FOR COUNTER DRIVEN GEAR)
35783GNUT(FOR COUNTER DRIVEN GEAR)
35789RACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE FRONT)
35789BRACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE REAR)
35789CRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR FRONT)
35789DRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR REAR)
35789FRACE, THRUST BEARING (FOR REAR PLANETARY FLANGE)
35792BRING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)
35795RACE, 1 WAY CLUTCH OUTER
35795ARING, HOLE SNAP (FOR 1 WAY CLUTCH OUTER RACE)
30 parts on this diagram · 2 diagrams in section
