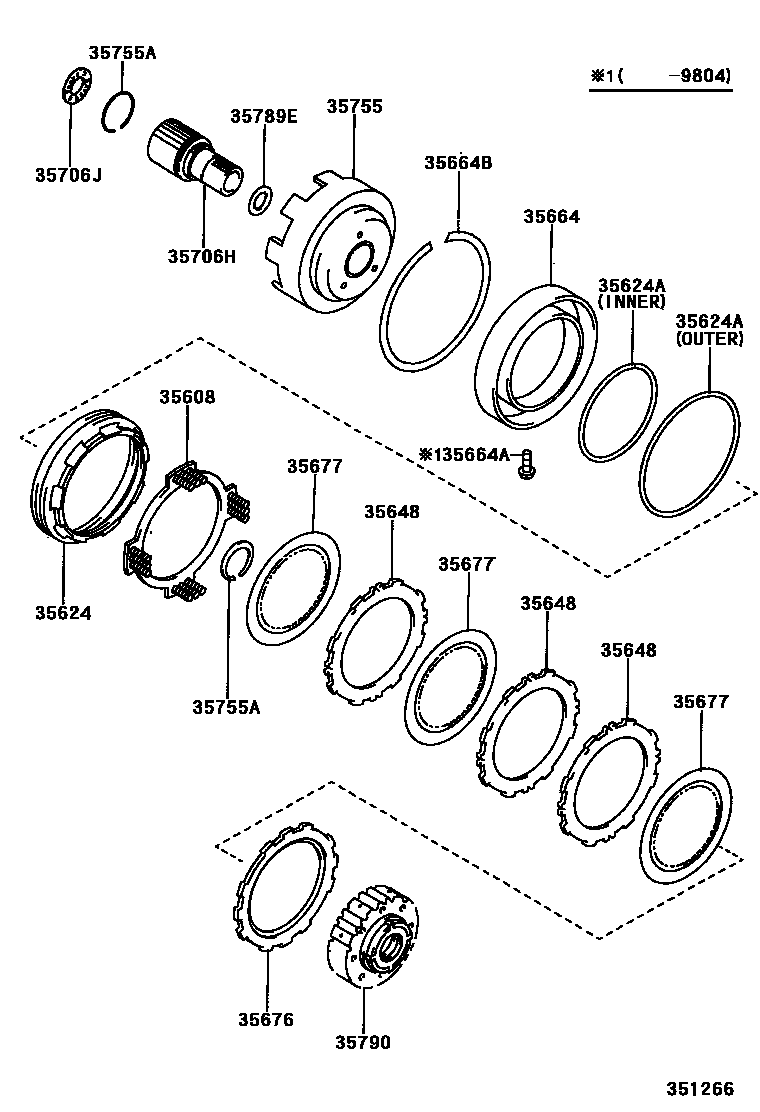

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-32010iSXM10..ATM199609

35624PISTON, 2ND BRAKE

main35624-32010iSXM10..ATM199609

35624ARING, O (FOR 2ND BRAKE PISTON)

main90301-99021iSXM10..ATM199609-200008

INNER

main90301-99023iSXM10..ATM199609-200008

OUTER

main90301-99100iSXM10..ATM200008

INNER

main90301-99132iSXM10..ATM200008

OUTER

35648PLATE, CLUTCH (FOR 2ND BRAKE)

main35648-21020iSXM10..ATM199804

main35648-32010iSXM10..ATM199609-199804

T=1.8

35664CYLINDER, 2ND BRAKE

main35664-32010iSXM10..ATM199609

35664ABOLT (FOR 2ND BRAKE CYLINDER)

main90109-06060iSXM10..ATM199609-199804

35664BRING, HOLE SNAP (FOR 2ND BRAKE CYLINDER)

main90520-99013iSXM10..ATM199804

main90521-99013iSXM10..ATM199609-199804

35676FLANGE, BRAKE (FOR 2ND BRAKE)

main35676-12030iSXM10..ATM199609

T=3.5

35677DISC, CLUTCH (FOR 2ND BRAKE)

main35677-20050iSXM10..ATM199609-199804

main35677-21020iSXM10..ATM199804

35706HGEAR SUB-ASSY, PLANETARY SUN

main35706-12010iSXM10..ATM199609

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-28011iSXM10..ATM199804

main90374-30006iSXM10..ATM199609-199804

35755DRUM, SUN GEAR INPUT

main35755-32020iSXM10..ATM199609

35755ARING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM)

main90520-44002iSXM10..ATM199609

T=1.2,ID=44.0

main90520-46010iSXM10..ATM199804

T=2.3,ID=46.0

main90520-47003iSXM10..ATM199609-199804

T=2.3,ID=47.1

35789ERACE, THRUST BEARING (FOR PLANETARY SUN GEAR)

main35789-22010iSXM10..ATM199609

35790CLUTCH ASSY, 1 WAY

main35790-32050iSXM10..ATM199609

15 parts on this diagram · 1 diagram in section
